Portable 5 Gallon Timed Entryway Foam Sanitizer
Air Assisted
City Pressure
Electricity (120V)
Entryway Sanitation
Foam
Low Volume
Portable
Programmable Systems
Timed Delay
Venturi Dilution

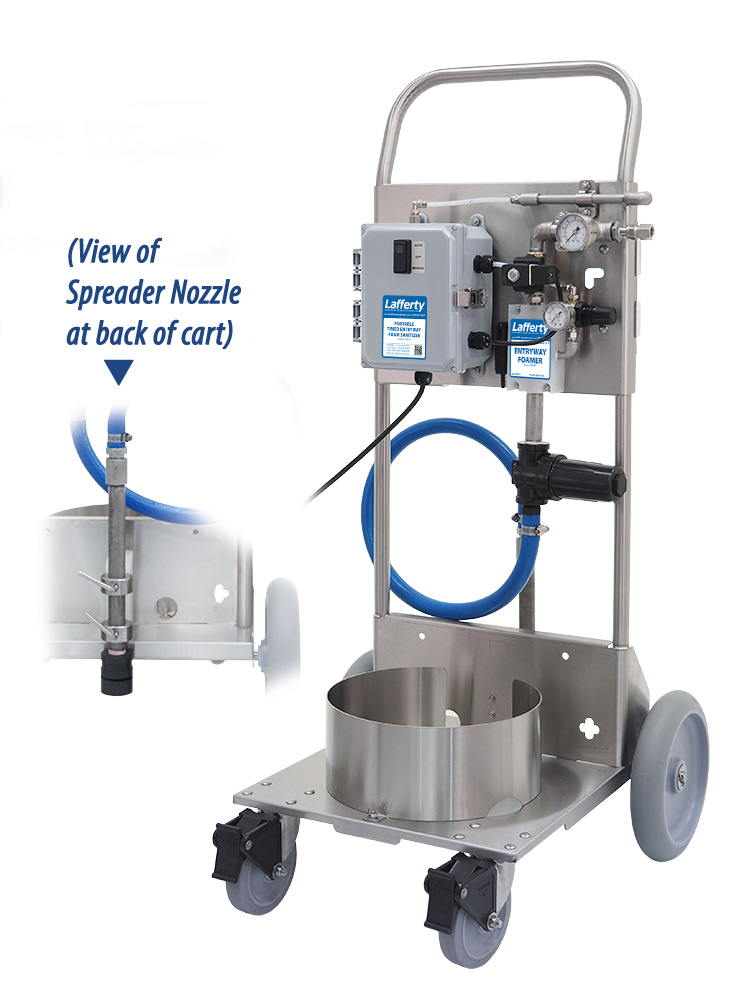

The Portable 5 Gallon Timed Entryway Foam Sanitizer is an automated foam applicator for projecting sanitizing chemicals on to floors of 3' wide employee walk doors to prevent cross contamination. This unit features an all stainless steel cart assembly to move between sanitation zones. When activated, this venturi injection system uses city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. Foam is then projected through the discharge hose and Spreader™ nozzle. The system timer is user-programmable to meet the needs of any facility.
Key Features
- Applies a layer of rich, clinging foam to entryway floors to prevent cross-contamination
- Designed for 3' wide employee walk doors where a fixed-location entryway system is not ideal
- Dilutes chemical concentrate "on-the-fly" from an on-board, user-supplied, 5-gallon pail
- The unique Spreader™ nozzle lays a foam pattern 3' across and 4' wide to ensure all foot traffic and cart wheels are fully exposed to the sanitizer
- Automatic activation and shutoff for use in moderate to high traffic areas
- Adjustable timer controls the application of foam at regular intervals - up to 1 minute foaming and up to 1 hour off
- Adjustable foam consistency (wet/dry)
- Water and air pressure gauges eliminate guessing to reduce set-up time and help with troubleshooting
- Chemical resistant wetted components ensure durability and years of reliable service with minimal maintenance
- Available for larger 6' doors (#976531)
- Available as a fixed-location system (#976500)
- See Catalog 6 for other entryway configurations

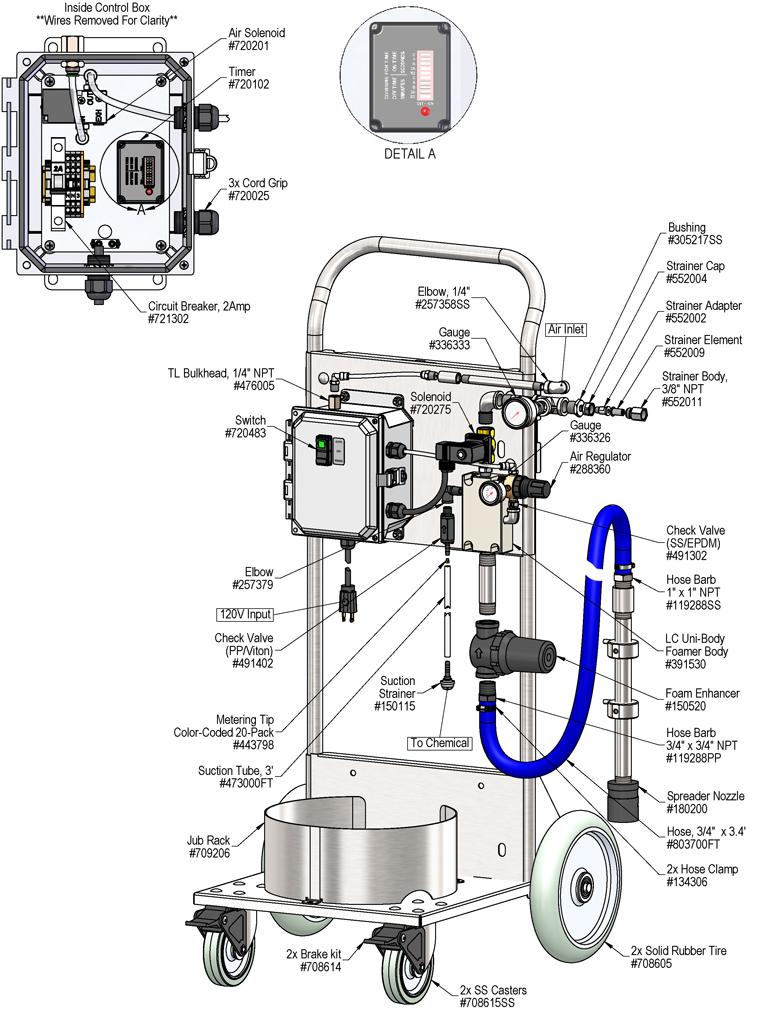

Includes
- All stainless steel 4-wheel cart
- Non-marking tires & locking stainless steel swivel casters
- Stainless steel, round, 5 gallon jug rack (square optional)
- NEMA rated control box with run/delay timer
- Easy-to-read pressure gauges for incoming water and air
- Water activation solenoid
- Machined polypropylene foamer body
- 20 color-coded precision metering tips to set dilution ratios
- 3/4" ID discharge hose with foam enhancer
- Entryway Spreader™ nozzle
