Timed PF Entryway XV Foam Sanitizer - 24VAC
Entryway Systems
The Timed PF Entryway XV Foam Sanitizer (24V) is an automated foam applicator for projecting sanitizing chemicals on to floors of 8' - 16' wide overhead doors to prevent cross contamination. This system receives ready-to-use chemical solution from a user-supplied central chemical feed system. A high volume of rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the discharge hose and unique Spreader™ nozzles. The system timer is user-programmable to meet the needs of any facility. This unit requires 24VAC electrical input - a locally sourced standard step-down transformer is required.
Key Features
- Applies a layer of rich, clinging foam to entryway floors to prevent cross-contamination
- Designed for 8'-16' wide overhead doors
- Receives pre-diluted chemical solution from a user-supplied central chemical feed system

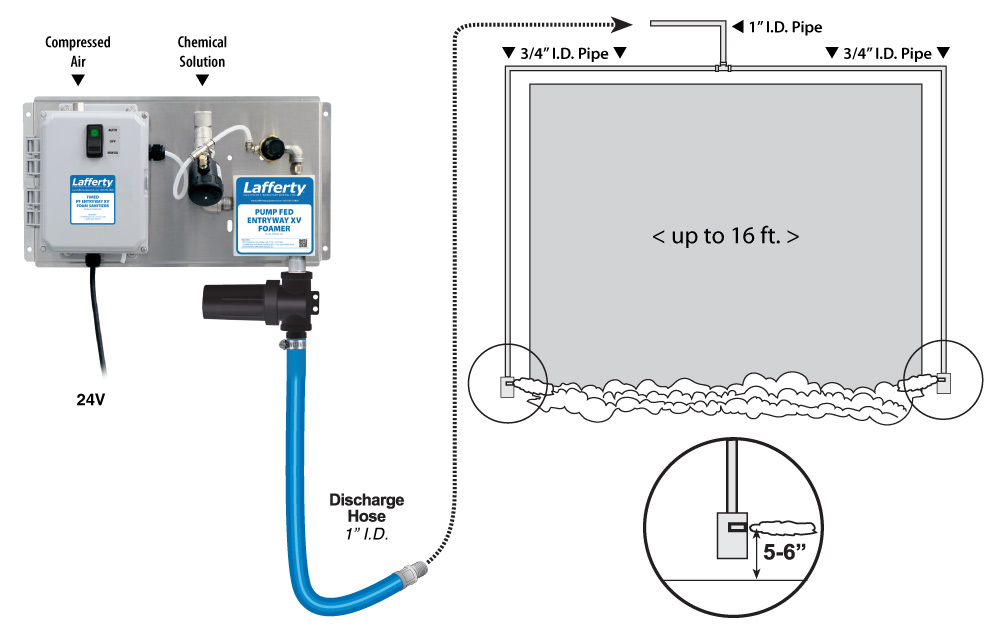

- The unique Spreader™ nozzles lay a foam pattern 8'-16' across and up to 10' wide to ensure that all foot traffic and cart wheels are fully exposed to the sanitizer
- Automatic activation and shutoff for use in moderate to high traffic areas
- Adjustable timer controls the application of foam at regular intervals - up to 1 minute foaming and up to 1 hour off
- Adjustable foam consistency (wet/dry)
- Chemical resistant wetted components ensure durability and years of reliable service with minimal maintenance
- Available for smaller doors (#976250-24V, 976256-24V)
- Available for 120VAC electric (#976260)
- See Catalog 6 for other entryway configurations

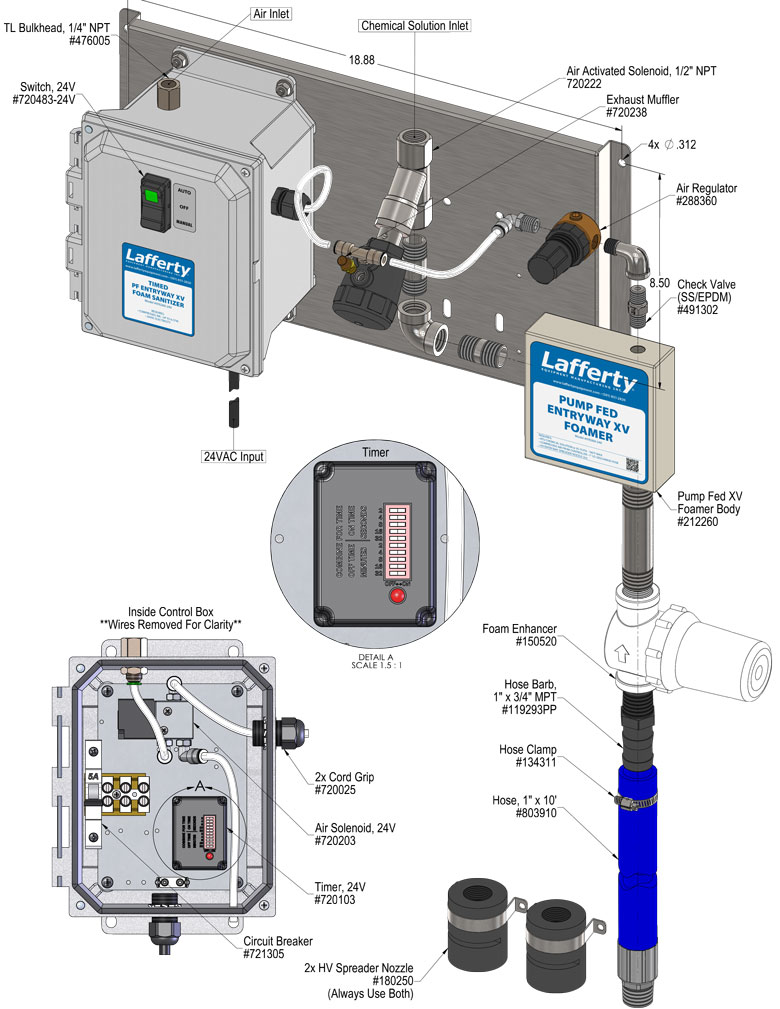

- Stainless steel mounting plate
- 24VAC NEMA rated control box with run/delay timer
- Solution activation solenoid
- Machined polypropylene pump-fed foamer body
- Foam enhancer
- 10' discharge hose
- (2) Entryway SpreaderTM nozzles (must use both)
