Timed PF Entryway MV Foam Sanitizer - 24VAC
Entryway Systems

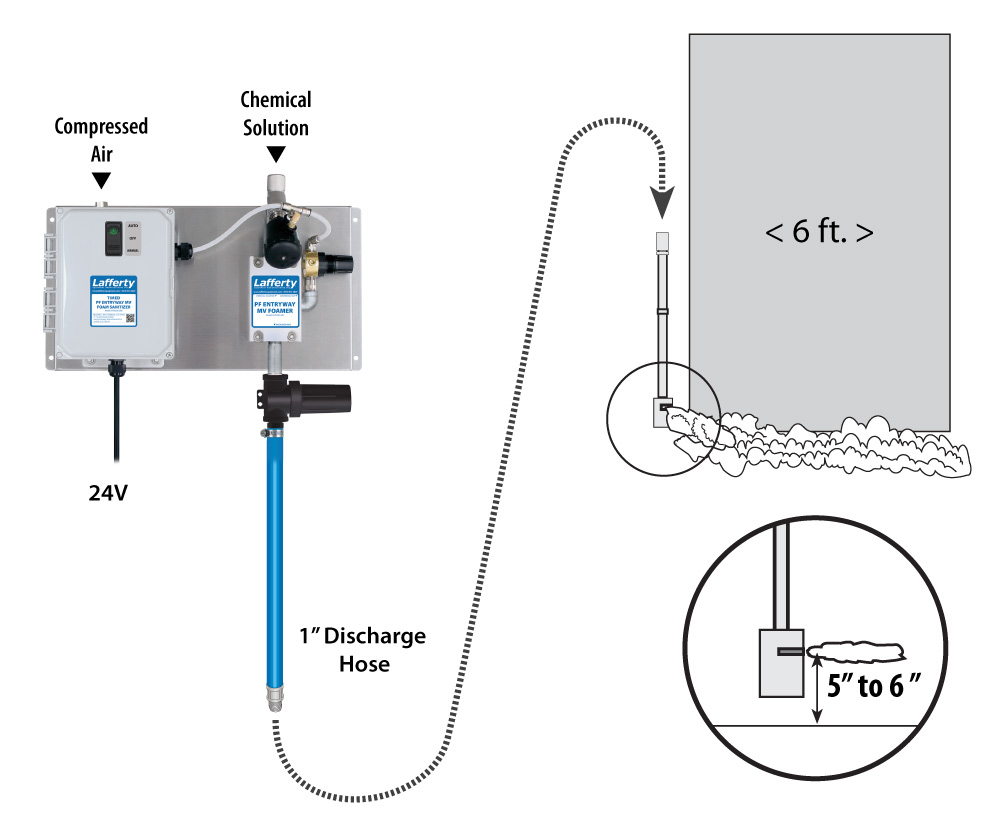

The Timed PF Entryway MV Foam Sanitizer is an automated foam applicator for projecting sanitizing chemicals on to floors of 6' wide double doors to prevent cross contamination. This system receives ready-to-use chemical from a user-supplied central chemical feed system. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. Foam is then projected through the discharge hose and Spreader™ nozzle. The system timer is user-programmable to meet the needs of any facility. This unit requires 24VAC electrical input - a locally sourced standard step-down transformer is required.
Key Features
- Applies a layer of rich, clinging foam to entryway floors to prevent cross-contamination
- Designed for 6' wide double doors
- Receives pre-diluted chemical solution from a user-supplied central chemical feed system
- The unique MV Spreader™ nozzle lays a foam pattern 6' across and 6' wide to ensure all foot traffic and cart wheels are fully exposed to the sanitizer
- Automatic activation and shutoff for use in moderate to high traffic areas
- Adjustable timer controls the application of foam at regular intervals - up to 1 minute foaming and up to 1 hour off
- Adjustable foam consistency (wet/dry)
- Chemical resistant wetted components ensure durability and years of reliable service with minimal maintenance
- Available for smaller & larger doors (#976250-24V, 976260-24V)
- Available for 120VAC electric (#976250)
- See Catalog 6 for other entryway configurations

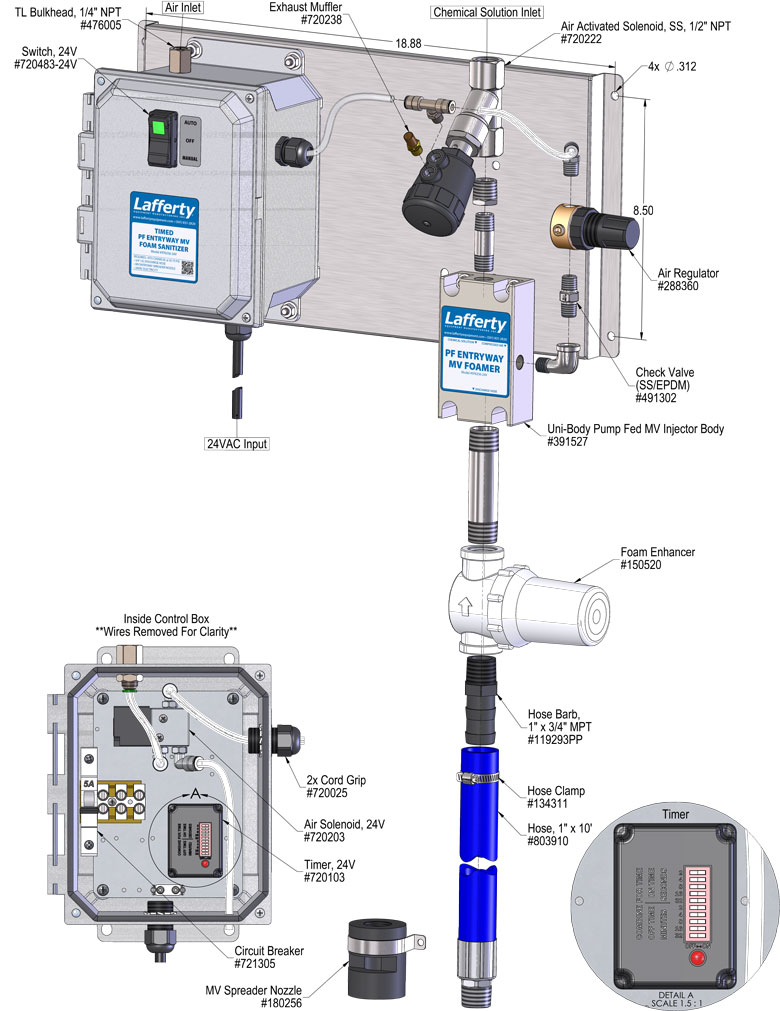

- Stainless steel mounting plate
- 24VAC NEMA rated control box with run/delay timer
- Solution activation solenoid
- Machined polypropylene pump-fed foamer body
- Foam enhancer
- 10' discharge hose
- MV Entryway SpreaderTM nozzle
Overview
Key Features
- Applies a layer of rich, clinging foam to entryway floors to prevent cross-contamination
- Designed for 6' wide double doors
- Receives pre-diluted chemical solution from a user-supplied central chemical feed system
- The unique MV Spreader™ nozzle lays a foam pattern 6' across and 6' wide to ensure all foot traffic and cart wheels are fully exposed to the sanitizer
- Automatic activation and shutoff for use in moderate to high traffic areas
- Adjustable timer controls the application of foam at regular intervals - up to 1 minute foaming and up to 1 hour off
- Adjustable foam consistency (wet/dry)
- Chemical resistant wetted components ensure durability and years of reliable service with minimal maintenance
- Available for smaller & larger doors (#976250-24V, 976260-24V)
- Available for 120VAC electric (#976250)
- See Catalog 6 for other entryway configurations
- Stainless steel mounting plate
- 24VAC NEMA rated control box with run/delay timer
- Solution activation solenoid
- Machined polypropylene pump-fed foamer body
- Foam enhancer
- 10' discharge hose
- MV Entryway SpreaderTM nozzle
