Timed Air Pump PD Entryway Foam Sanitizer
Air Assisted
Air Pump Driven
Electricity (120V)
Entryway Sanitation
Foam
Low Volume
N/A: Compressed-Air Pump
Polypropylene Body
Programmable Systems
Wall Mount / Stationary

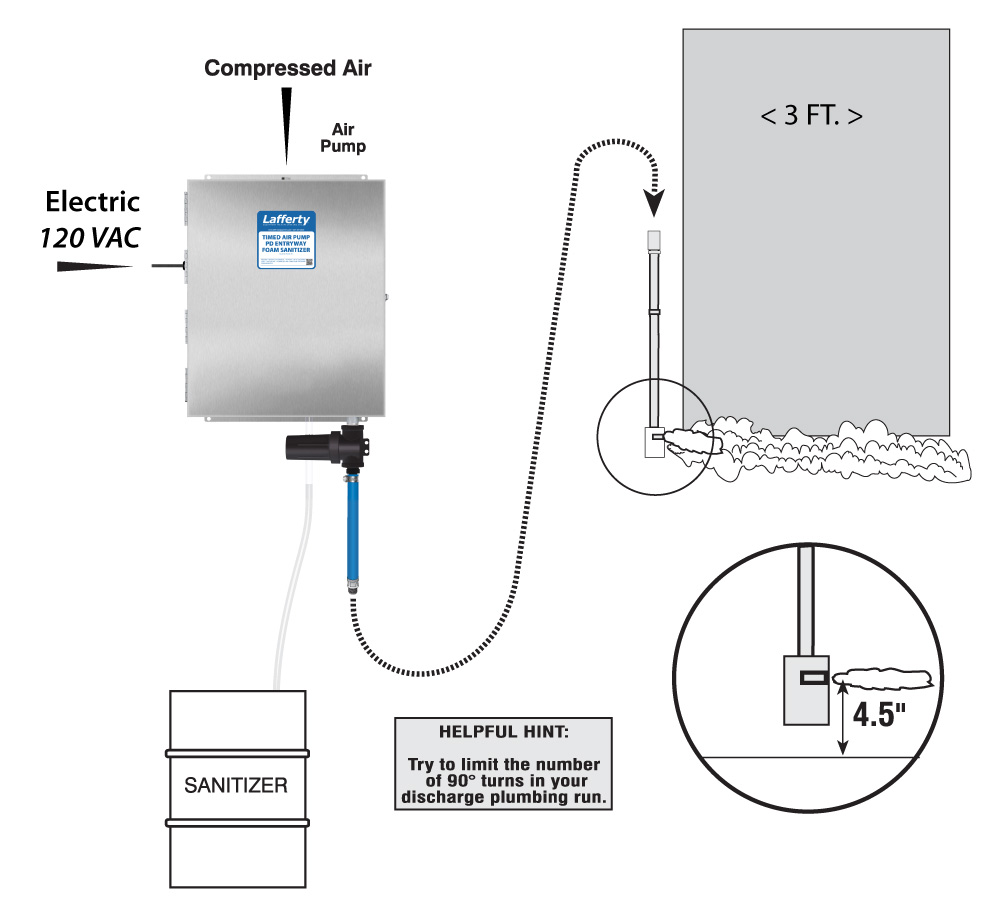

The Timed Air Pump PD Entryway Foam Sanitizer is an automated foam applicator for projecting sanitizing chemicals on to floors of 3' wide employee walk doors to prevent cross contamination. Ideal for use in locations where water pressure is unreliable, ready to use chemical solution is drawn by an air operated pump and pressurized through a Pump Fed Foamer body. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. Foam is then projected through the discharge hose and Spreader™ nozzle. The system timer is user-programmable to meet the needs of any facility.
Key Features
- Applies a layer of rich, clinging foam to entryway floors to prevent cross-contamination
- Designed for 3' wide employee walk doors
- A cost-effective Flojet AODD pump draws pre-diluted chemical solution and pressurizes it through a pump fed foamer body
- The unique Spreader™ nozzle lays a foam pattern 3' across and 4' wide to ensure all foot traffic and cart wheels are fully exposed to the sanitizer
- Automatic activation and shutoff for use in moderate to high traffic areas
- Adjustable timer controls the application of foam at regular intervals - up to 1 minute foaming and up to 1 hour off
- Adjustable foam consistency (wet/dry)
- Chemical resistant wetted components ensure durability and years of reliable service with minimal maintenance
- See Catalog 6 for other entryway configurations including push-button-activated, electric-eye-activated, dual doorway and more!

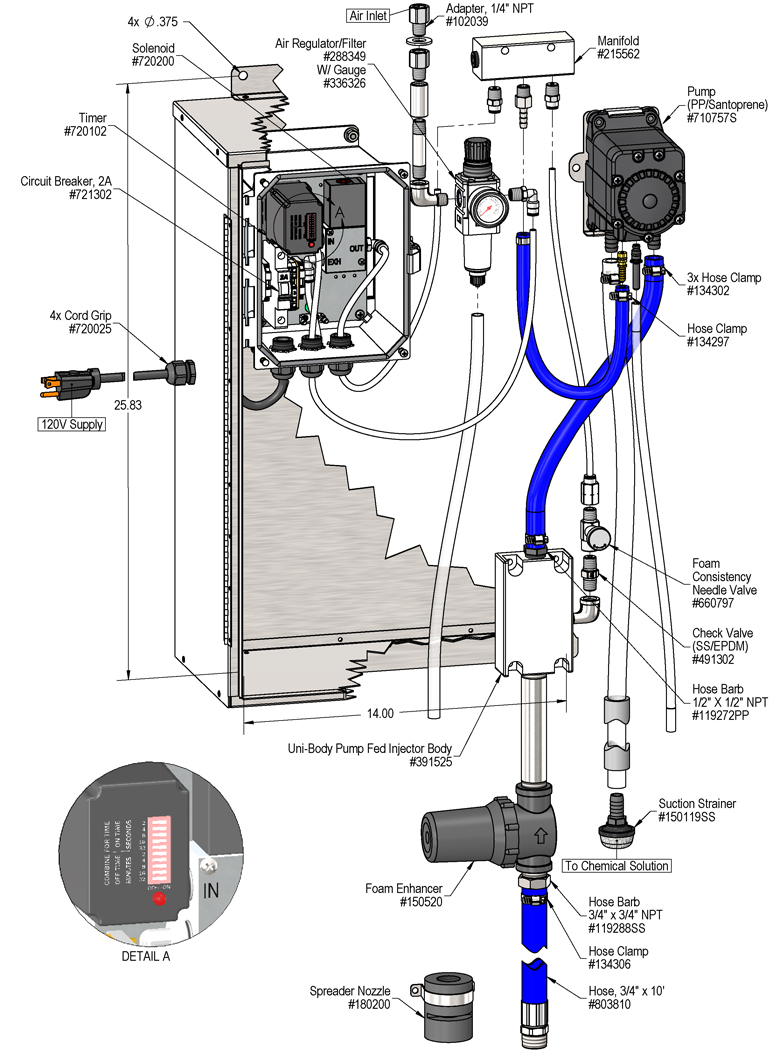

- NEMA rated control box with run/delay timer
- Stainless steel enclosure
- 1/4" Flojet AODD pump (Santoprene diaphragms)
- Machined polypropylene pump-fed foamer body
- 10' discharge hose
- Entryway SpreaderTM nozzle
