Conveyor-Mate™ LC Foam System

PART-NUMBER:975930

Air Assisted

City Pressure

Conveyor Systems

Foam

General Purpose

Medium Volume

Venturi Dilution

Wall Mount / Stationary

The Conveyor-Mate™ LC Foam System is specialized for Clean-In-Place foaming on to conveyor belts up to 48" wide and also can be used as a manual foamer. The stainless steel foam arm and nozzle assembly can be permanently or temporarily mounted to the conveyor belt housing or nearby surface. The fully adjustable foam arm extends vertically and horizontally to virtually any position. The unique stainless steel Spreader Nozzle™ creates a wide foam pattern that can be adjusted and rotated to ensure optimal coverage at any angle. The included LC Foamer is a venturi dilution system that uses city water pressure (35 - 125 PSI) to draw and accurately blend chemical concentrate into the water stream. Compressed air is added to create rich clinging foam, which flows through the hose to the foam arm. Quick disconnect the foam arm and attach a wand for manual foaming.

Request Information Download Specs

Key Features

LC Foamer accurately dilutes chemical concentrate on demand using precision metering tips
Foamer discharge hose quick connects to the foam arm for CIP cleaning or the hand-held wand for manual foaming
Fully-adjustable foam arm accommodates many conveyor belt positions — horizontal, vertical, angled, etc.
Unique Spreader Nozzle™ projects a wide foam pattern
- 12" overhead distance = 30" wide coverage
- 24" overhead distance = 48" wide coverage
Spreader Nozzles™ can also be rotated 360° to project foam at any angle for wider coverage or to foam hard-to-reach locations
Foam arm can be permanently or temporarily mounted
Manual foam wand fan nozzle covers up to 500 sq ft (46.5 sq m) in 2 minutes (up to 12' range)
Foaming expands the chemical and discourages over-application by providing visual assurance of coverage
Rich, clinging foam increases chemical contact time and effectiveness
Adjustable foam consistency (wet/dry)
Water and air pressure gauges eliminate guessing to reduce set-up time and help with troubleshooting
Machined stainless steel and polypropylene components ensure durability and years of outstanding performance
Industrial-strength design holds up in tough environments
Available with lower flow rate for slower and/or narrower belts (#975910)
Lafferty also manufactures portable Conveyor-Mate™ systems (#975932)
See other Lafferty city water pressure foamers in Catalog 1

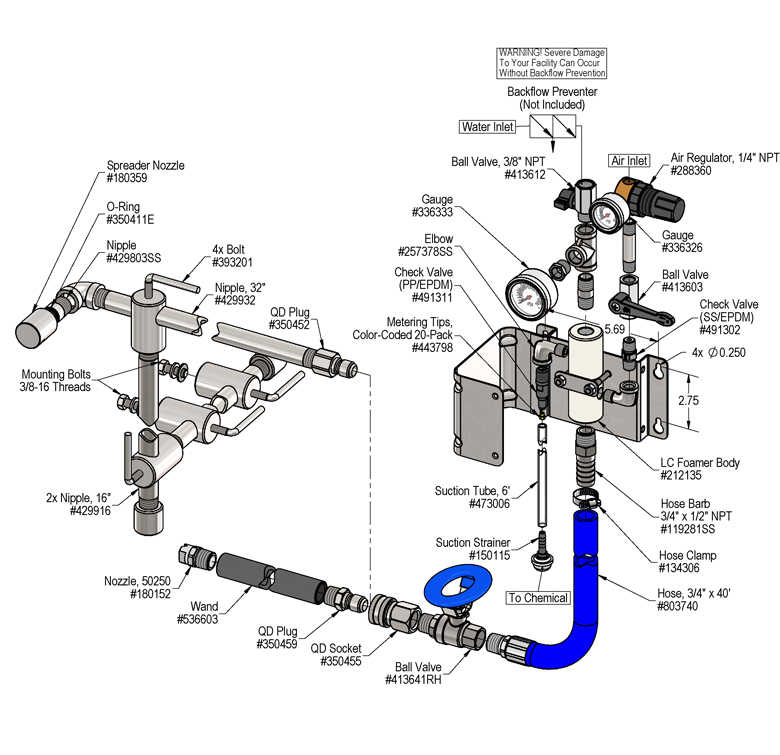

Includes

LC Foamer
40' discharge hose with stainless steel ball valve and quick disconnect socket
Quick disconnect stainless steel foam arm with Spreader Nozzle™
Quick disconnect manual foam wand with fan nozzle

Full technical details including requirements and dilution

View Download

Single sheet overview that highlights key features

View Download
