Portable WR-1 Foam / Rinse W/ SmartWand
Airless
City Pressure
Foam, Rinse
General Purpose
Medium Volume
Polypropylene Body
Portable
Uni-body
Venturi Dilution

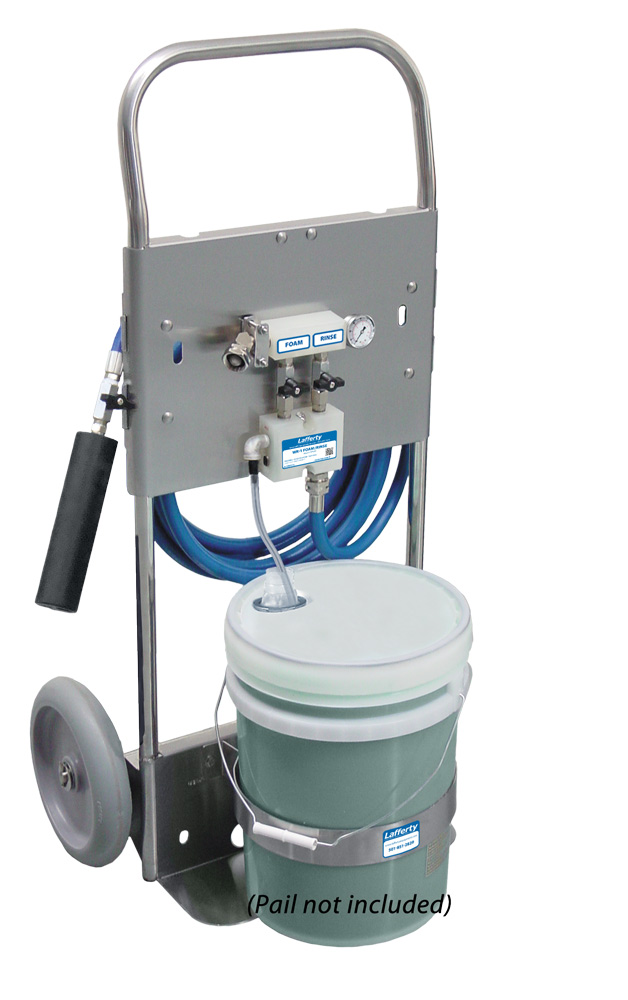

The Portable WR-1 Foam/Rinse System is a combination medium volume airless foam/rinse applicator featuring the unique all-in-one SmartWand™ and an all stainless steel cart assembly. This venturi injection system uses city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. The solution then flows through the discharge hose and the SmartWand™ which draws in atmospheric air to create and project wet, clinging foam on to any surface up close or at distances up to 6 feet. Open the rinse valve and rotate the SmartWand™ to the rinse position to rinse at full pressure.
Key Features
- The SmartWandTM is a unique all-in-one device for alternating between projecting airless foam and a fan pattern rinse
- Use the SmartWandTM to project airless foam at distances up to 6 feet or to rinse at full pressure
- Designed for foam cleaning and rinsing medium to large sized areas where compressed air is not available
- Projects wet, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Chemical resistant components ensure years of outstanding performance with minimal maintenance
- Use it where 35-125 PSI water is available
- Water pressure gauge eliminates guessing, reduces set-up time, and helps with troubleshooting
- Available as a wall-mounted unit (#975125)
- See other Foam/Rinse/Spray systems in Catalog 1

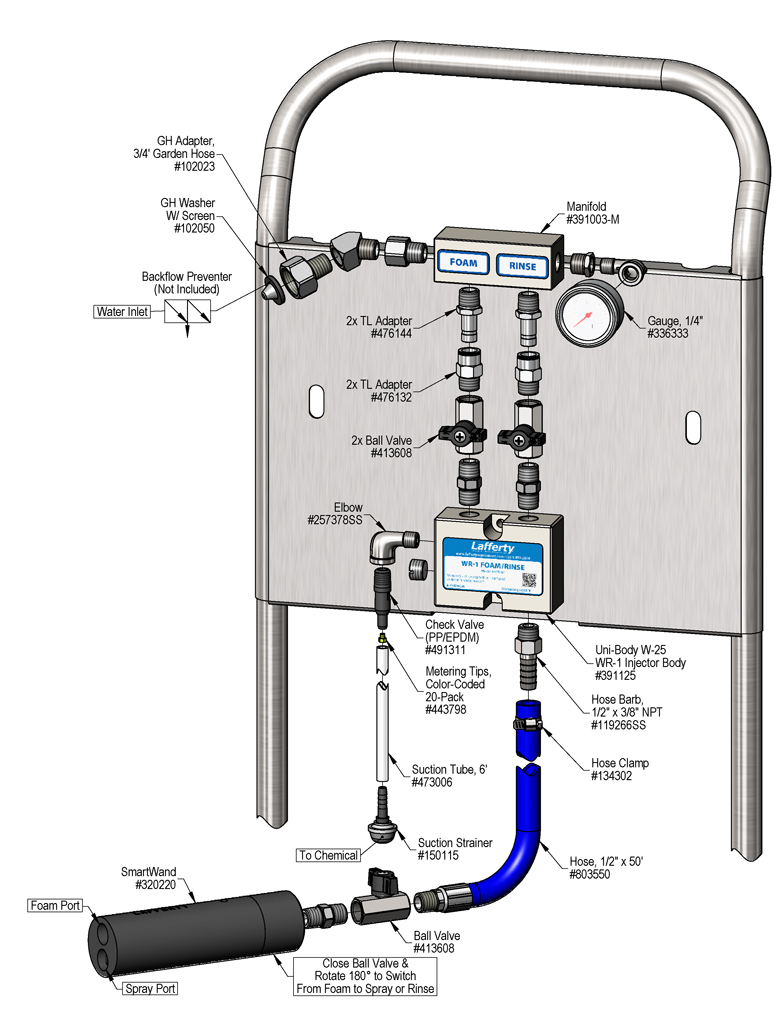

Includes
- All stainless steel 2-wheel cart with non-marking tires
- Stainless steel integrated hose rack
- Stainless steel, round, 5 gallon jug rack (square optional)
- Machined polypropylene manifold and injector body
- Easy-to-read pressure gauge for incoming water
- Machined polypropylene SmartWandTM
- Ball valves to alternate between foaming and rinsing
- 20 color-coded precision metering tips to set dilution ratios
- 50' discharge hose and ball valve
Overview
Key Features
- The SmartWandTM is a unique all-in-one device for alternating between projecting airless foam and a fan pattern rinse
- Use the SmartWandTM to project airless foam at distances up to 6 feet or to rinse at full pressure
- Designed for foam cleaning and rinsing medium to large sized areas where compressed air is not available
- Projects wet, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Chemical resistant components ensure years of outstanding performance with minimal maintenance
- Use it where 35-125 PSI water is available
- Water pressure gauge eliminates guessing, reduces set-up time, and helps with troubleshooting
- Available as a wall-mounted unit (#975125)
- See other Foam/Rinse/Spray systems in Catalog 1
Includes
- All stainless steel 2-wheel cart with non-marking tires
- Stainless steel integrated hose rack
- Stainless steel, round, 5 gallon jug rack (square optional)
- Machined polypropylene manifold and injector body
- Easy-to-read pressure gauge for incoming water
- Machined polypropylene SmartWandTM
- Ball valves to alternate between foaming and rinsing
- 20 color-coded precision metering tips to set dilution ratios
- 50' discharge hose and ball valve
