Drum Bung Mount Uni-Body W-50 Spray-All
City Pressure
Drum Mounted
General Purpose
Polypropylene Body
Portable
Sanitize / Spray
Uni-body
Venturi Dilution

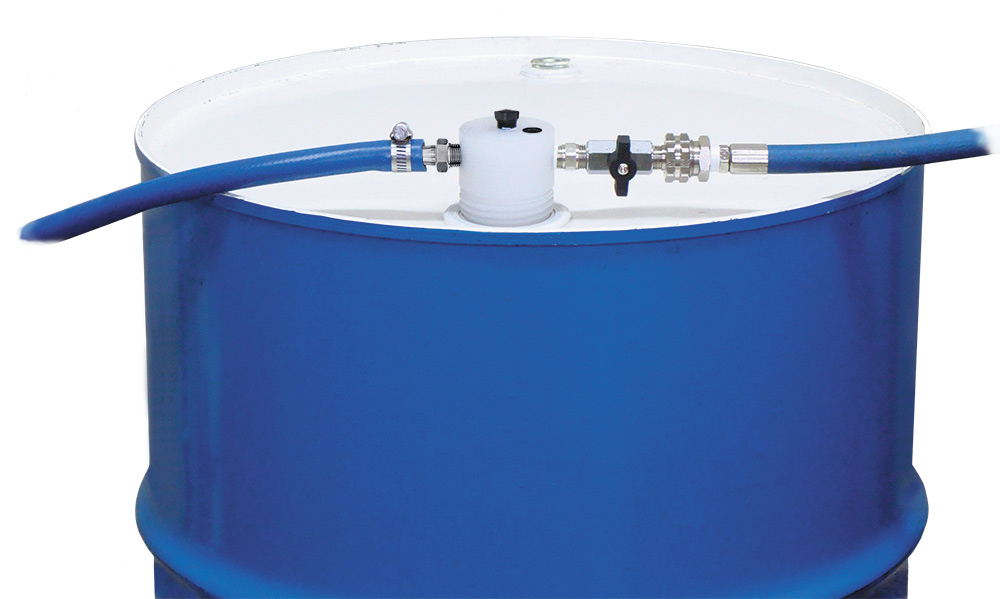

The Drum Bung Mount Uni-Body W-50 Spray-All is a drum-mounted, water-driven, medium volume spray applicator for applying chemical solutions to a variety of surfaces. This venturi injection system uses city water pressure (35 - 125 PSI) to draw and blend chemical concentrate directly from the drum into the water stream. Precision metering tips are used to create an accurately diluted solution which is projected through the discharge hose and fan nozzle as a uniform spray. With a flow rate of around 2 gallons per minute, this unit is great for spraying virtually any size area or object quickly and efficiently.
Key Features
- Screws into, and dispenses directly from, chemical concentrate drums for increased efficiency
- Equipped with both fine and coarse threads
- Creates a medium volume, heavy spray
- Designed for spraying medium to large surfaces and objects
- Fan pattern nozzle for even coverage
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Use it anywhere 35-125 PSI water is available
- Alternate configuration discourages unauthorized changes to the dilution ratio by restricting metering tip access
- Available as a wall-mounted unit (#975050)
- See other Lafferty Spray-Alls and more chemical applicators in Catalog 1

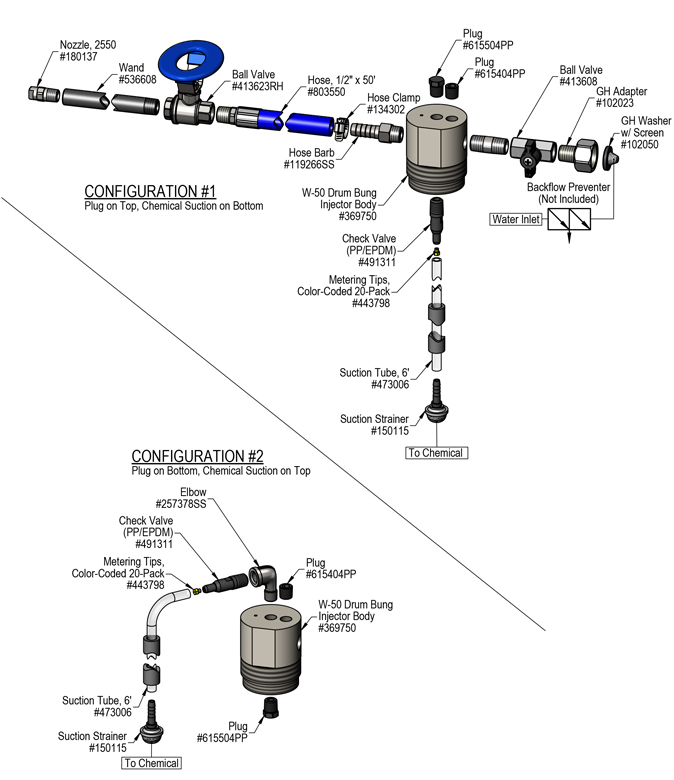

- Machined polypropylene drum bung injector body
- 20 color-coded metering tips for setting dilution ratios
- 50' discharge hose, stainless steel discharge ball valve, polypropylene wand and stainless steel fan nozzle
Loading related posts...
Overview
Key Features
- Screws into, and dispenses directly from, chemical concentrate drums for increased efficiency
- Equipped with both fine and coarse threads
- Creates a medium volume, heavy spray
- Designed for spraying medium to large surfaces and objects
- Fan pattern nozzle for even coverage
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Use it anywhere 35-125 PSI water is available
- Alternate configuration discourages unauthorized changes to the dilution ratio by restricting metering tip access
- Available as a wall-mounted unit (#975050)
- See other Lafferty Spray-Alls and more chemical applicators in Catalog 1
- Machined polypropylene drum bung injector body
- 20 color-coded metering tips for setting dilution ratios
- 50' discharge hose, stainless steel discharge ball valve, polypropylene wand and stainless steel fan nozzle
