Rinse / 517 Sanitize Hose Drop Station
City Pressure
General Purpose
Polypropylene Body
Sanitize, Rinse
Venturi Dilution
Wall Mount / Stationary

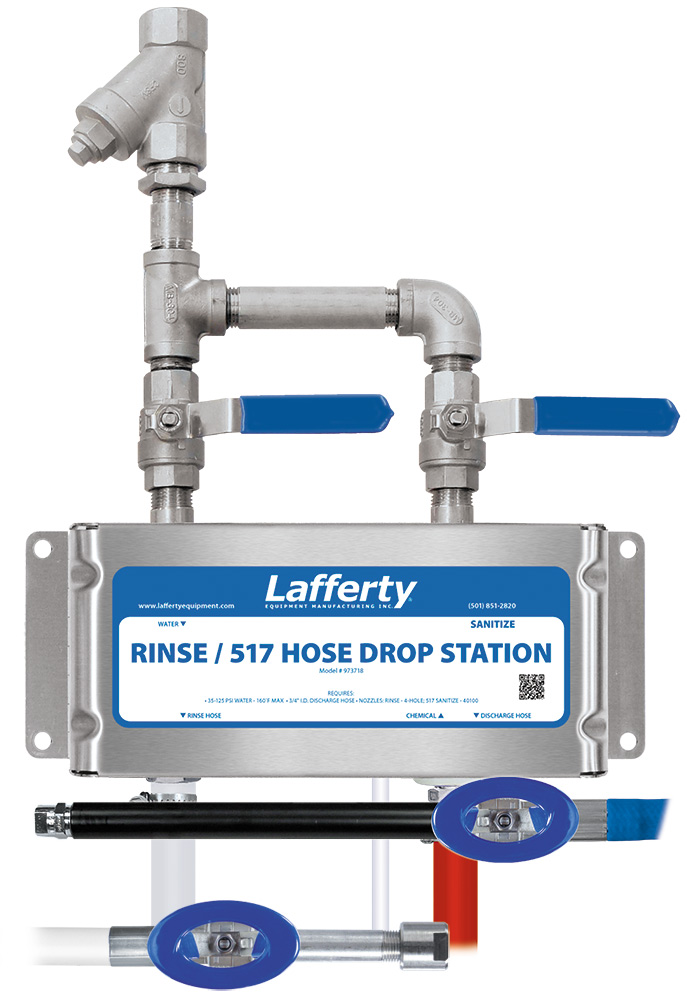

The Rinse / 517 Sanitize Hose Drop Station is a combination rinse/sanitizer applicator for applying one chemical as sanitizing spray and for rinsing. This venturi injection system uses standard city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. The sanitizer solution flows through the sanitizer hose and is projected as a fan pattern spray in the lean ratios required for no-rinse sanitizing in food plants. Rinse at full pressure through a separate hose and a unique and powerful stainless steel 4-hole nozzle.
Key Features
- Designed to rinse and sanitize medium to large surfaces and objects
- Dilutes concentrated sanitizers to the lean ratios required for no-rinse applications in food plants
- Sanitizer is projected as a "flooding spray"
- Rinse at full pressure using the powerful 4-hole nozzle
- Stainless steel and polypropylene components ensure years of trouble-free performance
- See other city water pressure applicators in Catalog 1

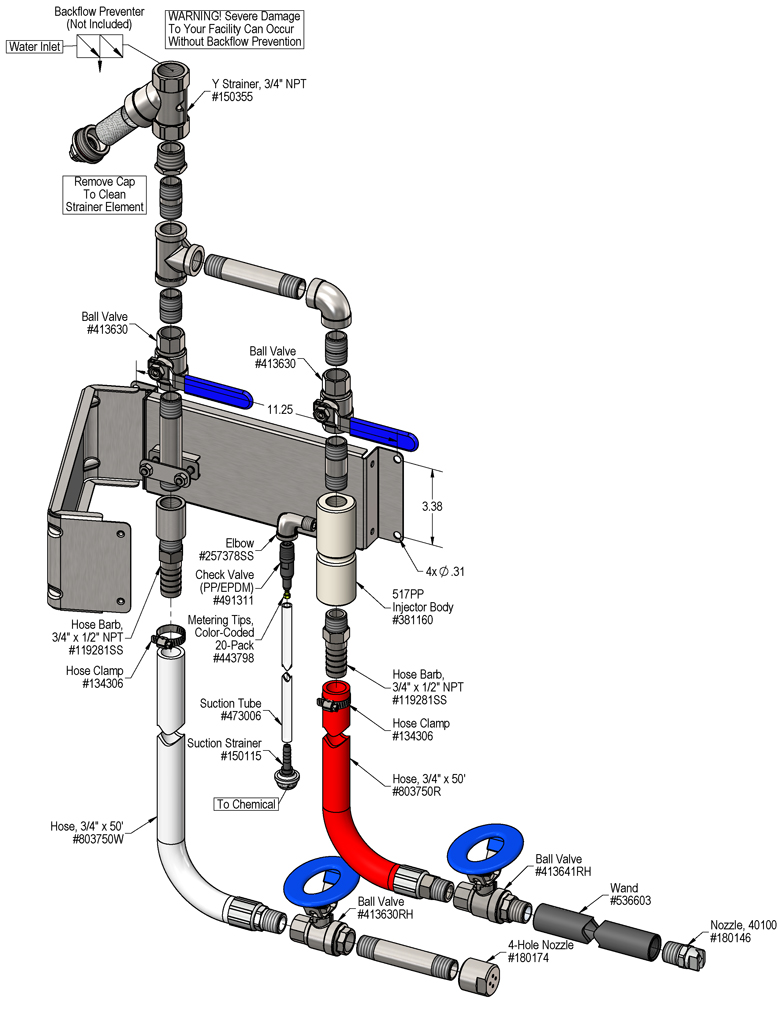

Includes
- Stainless steel mounting bracket
- Machined polypropylene sanitizer body
- Stainless steel inlet and discharge ball valves
- 20 color-coded precision metering tips to set dilution ratios
- 50' sanitize discharge hose, wand and fan nozzle
- 50' rinse hose and stainless steel 4-hole nozzle
Overview
Key Features
- Designed to rinse and sanitize medium to large surfaces and objects
- Dilutes concentrated sanitizers to the lean ratios required for no-rinse applications in food plants
- Sanitizer is projected as a "flooding spray"
- Rinse at full pressure using the powerful 4-hole nozzle
- Stainless steel and polypropylene components ensure years of trouble-free performance
- See other city water pressure applicators in Catalog 1
Includes
- Stainless steel mounting bracket
- Machined polypropylene sanitizer body
- Stainless steel inlet and discharge ball valves
- 20 color-coded precision metering tips to set dilution ratios
- 50' sanitize discharge hose, wand and fan nozzle
- 50' rinse hose and stainless steel 4-hole nozzle
