315 SS Sanitizer
City Pressure
General Purpose
Sanitize / Spray
Stainless Steel Body
Venturi Dilution
Wall Mount / Stationary

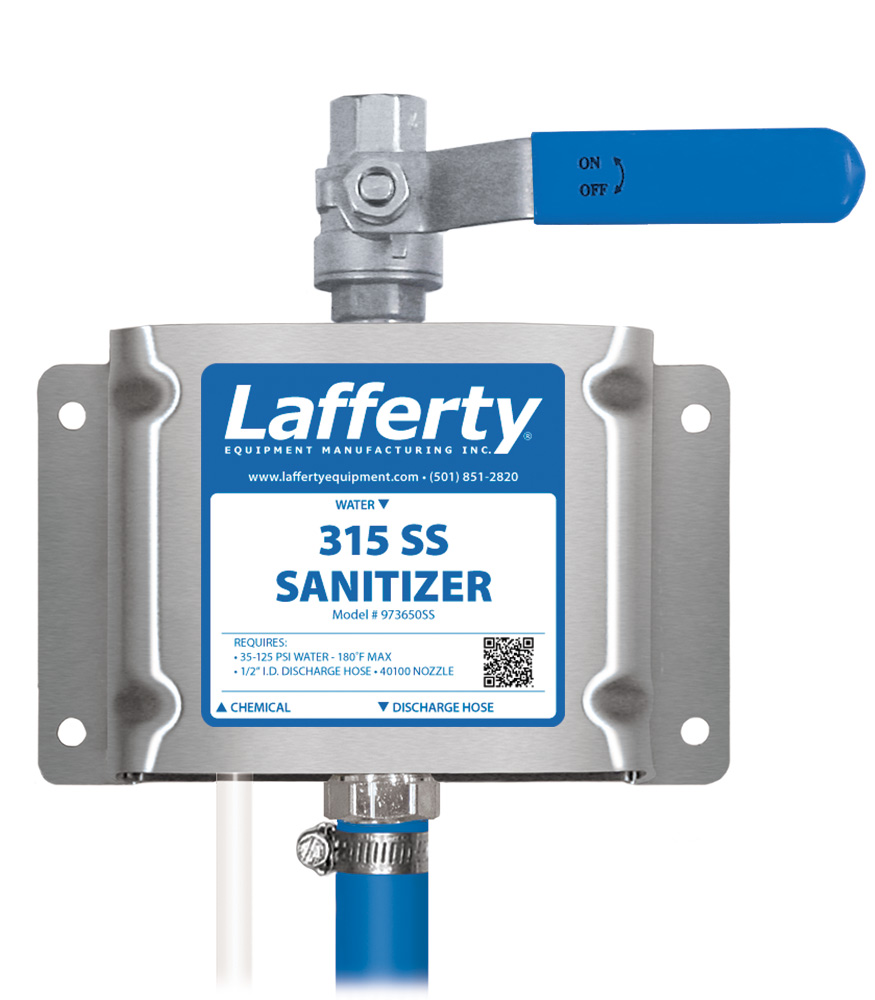

The 315 SS Sanitizer is a stainless steel venturi injection system, suitable for use with PAA, that uses standard city water pressure (35 - 125 PSI) to draw and blend chemical concentrate into the water stream (4 GPM @ 40 PSI). The solution is then projected through the discharge hose and fan nozzle. Equipped with a stainless steel check valve with Kalrez seals. Precision PVDF metering tips create the lean ratios required for no-rinse sanitizing in food plants.
Key Features
- Machined stainless steel injector body for maximum chemical and temperature resistance
- Creates a high volume, coarse spray
- Dilute concentrated sanitizers to the lean ratios required for no-rinse applications in food plants
- Projects a high volume flooding spray in a fan pattern for complete coverage
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Available with a polypropylene body (#973650)
- See other Lafferty Spray-Alls and more chemical applicators in Catalog 1

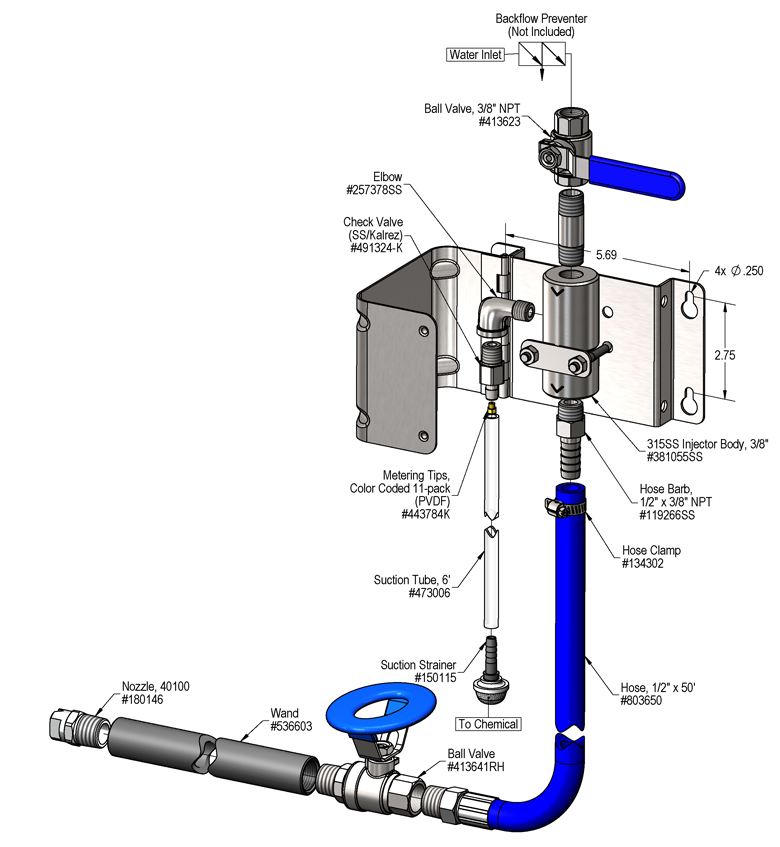

- Stainless steel mounting bracket
- Stainless steel inlet and discharge ball valves
- Machined stainless steel injector body
- Stainless steel / Kalrez check valve
- 20 color-coded metering tips to set dilution ratios
- 50' discharge hose, polypropylene wand and stainless steel fan nozzle
