Model 20 SS Hose End Airless Foamer
Airless
Foam
General Purpose
Hand Held
High Pressure
Medium Volume
Portable
Pressure Washer
Pressure Washing
Stainless Steel Body
Venturi Dilution
Designed for 2.2–5.5 GPM pressure washers. The Model 20 Stainless Steel Hose End Airless Foamer is an airless foam applicator for quickly diluting and applying foaming chemicals. This venturi unit draws and blends chemical concentrate into the water stream to create an accurately diluted solution. The solution then flows through the airless foam wand which draws in atmospheric air to create and project wet, clinging foam on to surfaces up close or at distances up to 25 feet with interchangeable fan and zero degree nozzles.
Key Features
- Designed for use with 2.2–5.5 GPM pressure washers
- Projects wet, clinging foam which increases chemical contact time and effectiveness
- Foam impacts at a lower pressure than spray, allowing a pressure washer to be used on more delicate surfaces
- To rinse, simply quick disconnect the entire assembly and replace your original rinse nozzle
- Use the fan nozzle for wide coverage or the zero degree nozzle for maximum range (up to 25')
- Draws chemical from any container
- Your equipment is protected because no chemical passes through the pump, hose or gun
- Almost no maintenance necessary: does not require pads, o-rings, or other wear parts
- Foamer body is one solid piece of machined stainless steel - built to last!
- Achieves chemical concentrations up to 7:1
- Available as a "high concentrate" model to achieve a 3.5:1 dilution ratio for tough jobs (#969620HC)
- Available with an attached bottle (#969621-B)
- See other Lafferty high pressure applicators in Catalog 3

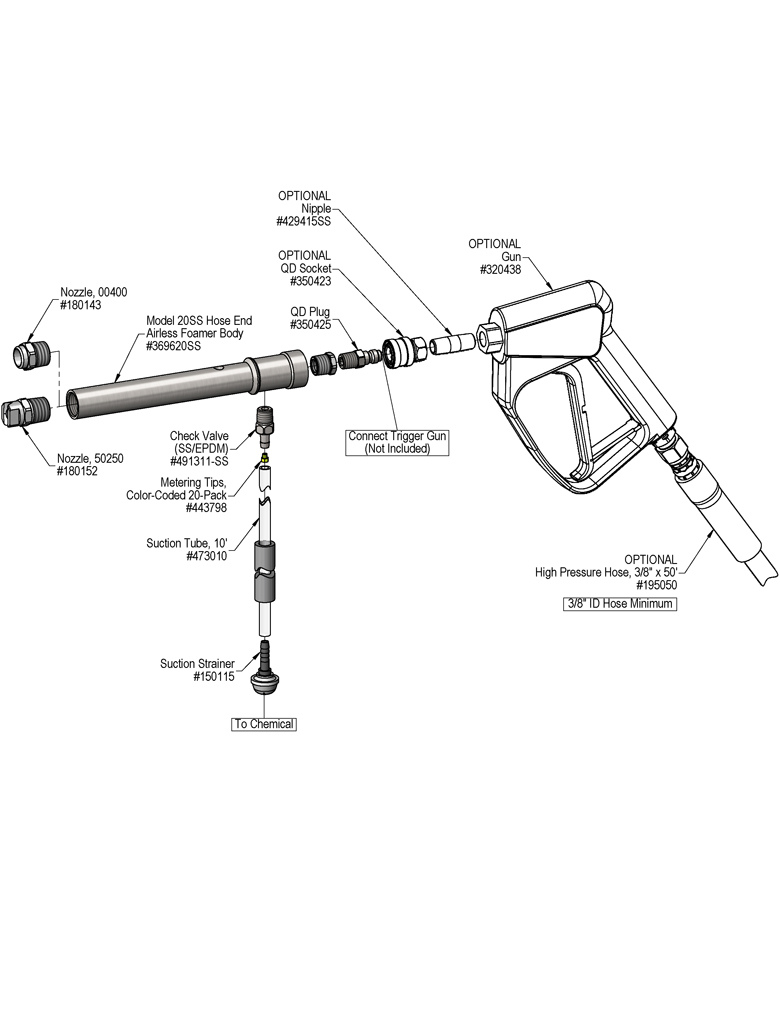

- Machined stainless steel foamer body
- 1/4" quick connect plug for connecting to your gun
- 10' chemical suction tube and strainer
- 20 color-coded precision metering tips to set dilution ratios
- Fan pattern foam nozzle and zero degree foam nozzle
Loading related posts...
Overview
Key Features
- Designed for use with 2.2–5.5 GPM pressure washers
- Projects wet, clinging foam which increases chemical contact time and effectiveness
- Foam impacts at a lower pressure than spray, allowing a pressure washer to be used on more delicate surfaces
- To rinse, simply quick disconnect the entire assembly and replace your original rinse nozzle
- Use the fan nozzle for wide coverage or the zero degree nozzle for maximum range (up to 25')
- Draws chemical from any container
- Your equipment is protected because no chemical passes through the pump, hose or gun
- Almost no maintenance necessary: does not require pads, o-rings, or other wear parts
- Foamer body is one solid piece of machined stainless steel - built to last!
- Achieves chemical concentrations up to 7:1
- Available as a "high concentrate" model to achieve a 3.5:1 dilution ratio for tough jobs (#969620HC)
- Available with an attached bottle (#969621-B)
- See other Lafferty high pressure applicators in Catalog 3
- Machined stainless steel foamer body
- 1/4" quick connect plug for connecting to your gun
- 10' chemical suction tube and strainer
- 20 color-coded precision metering tips to set dilution ratios
- Fan pattern foam nozzle and zero degree foam nozzle
