Model 20 SS Compact Sprayer
General Purpose
Hand Held
High Pressure
Portable
Pressure Washer
Pressure Washing
Sanitize / Spray
Stainless Steel Body
Venturi Dilution
Designed for 2.2–5.5 GPM pressure washers. The Model 20 Stainless Steel Compact Sprayer is a chemical spray applicator for quickly diluting and applying virtually any liquid chemical. This venturi unit draws chemical concentrate from the attached bottle and blends it into the water stream to create an accurately diluted solution. The solution is then projected as a fan pattern chemical spray on to surfaces up close or at a distance.
Key Features
- Designed for use with 2.2–5.5 GPM pressure washers
- Quickly dilutes and applies chemicals as a spray
- To rinse, simply quick disconnect the entire assembly and replace your original rinse nozzle
- Use the included fan pattern nozzle for wide coverage or remove it for increased range
- The lightweight 32 oz bottle reduces wrist and arm fatigue as well as the risk of repetitive strain injuries
- Your equipment is protected because no chemical passes through the pump, hose or gun
- Industrial-strength, stainless steel design ensures durability and reliable performance
- Lid color options help identify equipment to enhance safety (blue standard - red, yellow, or green optional)
- Available without the bottle to draw from any sized container (#969520)
- See other Lafferty high pressure applicators in Catalog 3

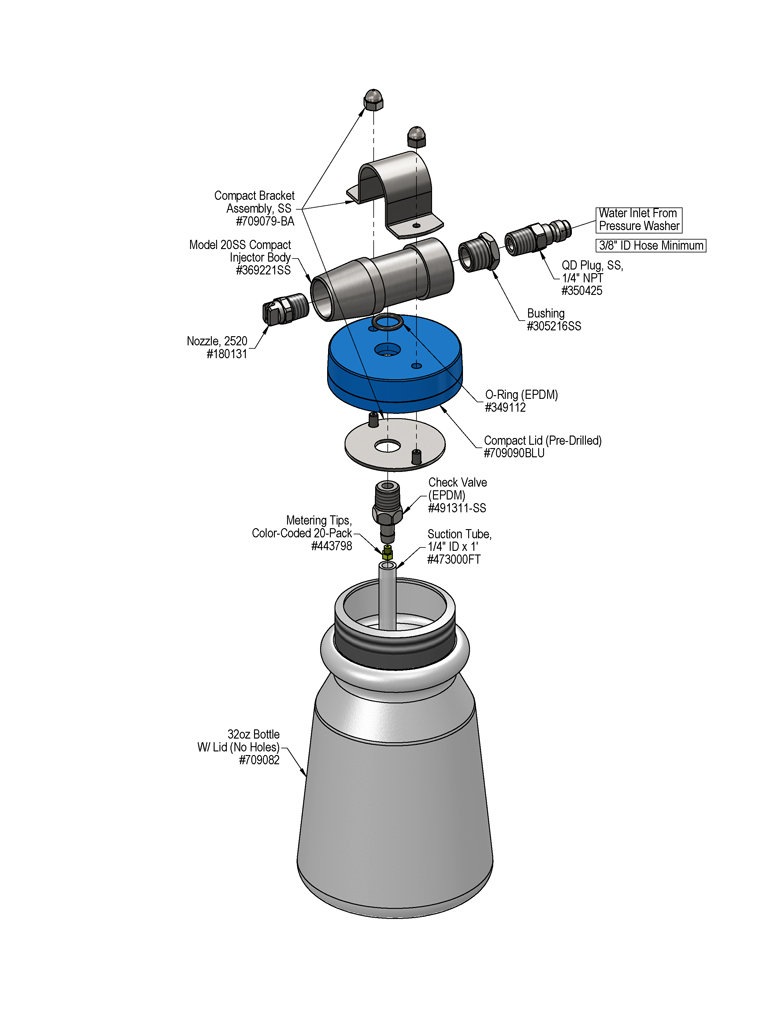

- Machined solid stainless steel sprayer body
- 1/4" quick connect plug for connecting to your gun
- 32 oz wide-mouth, polyethylene bottle
- 20 color-coded precision metering tips to set dilution ratios
- Fan nozzle (removable for increased range)
