Stationary 612 Miniature 4-Way Fogger
612 Series: Damp Mist (6ft)
Air Assisted
Fog
General Purpose
Polypropylene Body
Portable
Specialty

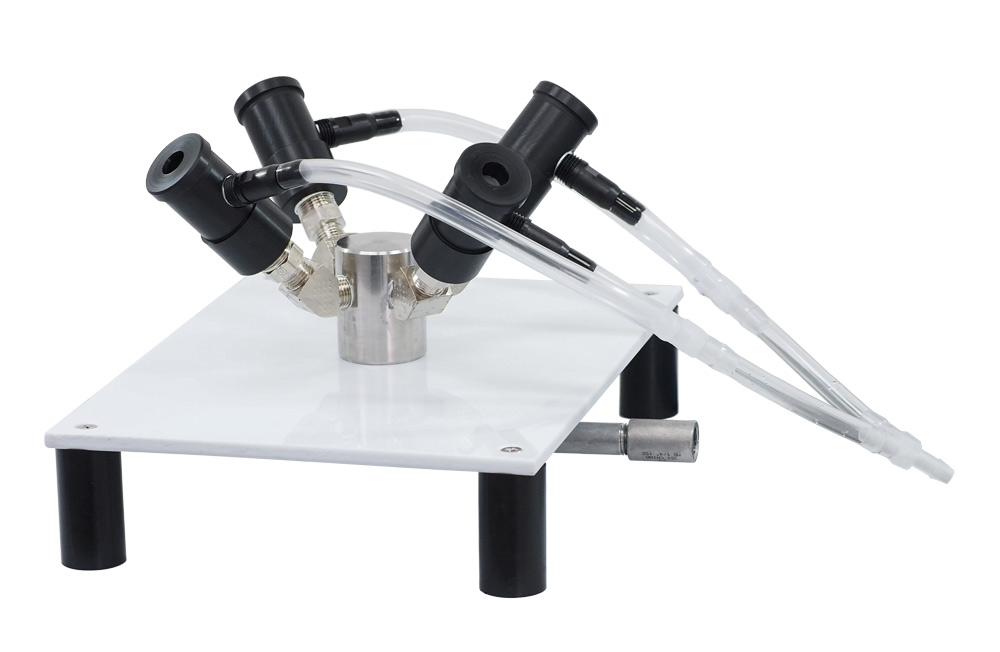

The Stationary 612 4-Way Fogger is a damp mist sprayer that uses compressed air (4.8 CFM @ 80 PSI) and venturi action to draw ready-to-use chemical solution from a nearby container and project it up to 6 feet in 4 directions. The adjustable output sprays mist (fog) into the air to cover exposed surfaces and penetrate hard-to-reach areas. This versatile unit can be permanently mounted or easily moved. The low CFM requirement allows it to be used with consumer-grade air compressors rated at 5 CFM or above.
Key Features
- Can be permanently mounted or moved for use in multiple locations
- Atomizes and sprays chemical solutions using only compressed air
- Venturi action draws pre-diluted chemical from a nearby container
- Projects up to 6' in 4 directions
- Low volume output is ideal for fogging in small areas
- Damp fog (mist) fills the air and covers exposed surfaces with chemical, including hard-to-reach areas
- Optional metering tips can reduce chemical usage and output wetness
- Chemical resistant polypropylene construction ensures durability and years of outstanding performance
- See Catalog 7 for hand held, permanently mounted and portable foggers
- Use the Lafferty Fogger Planning Tool to design the optimal fogging system for any facility

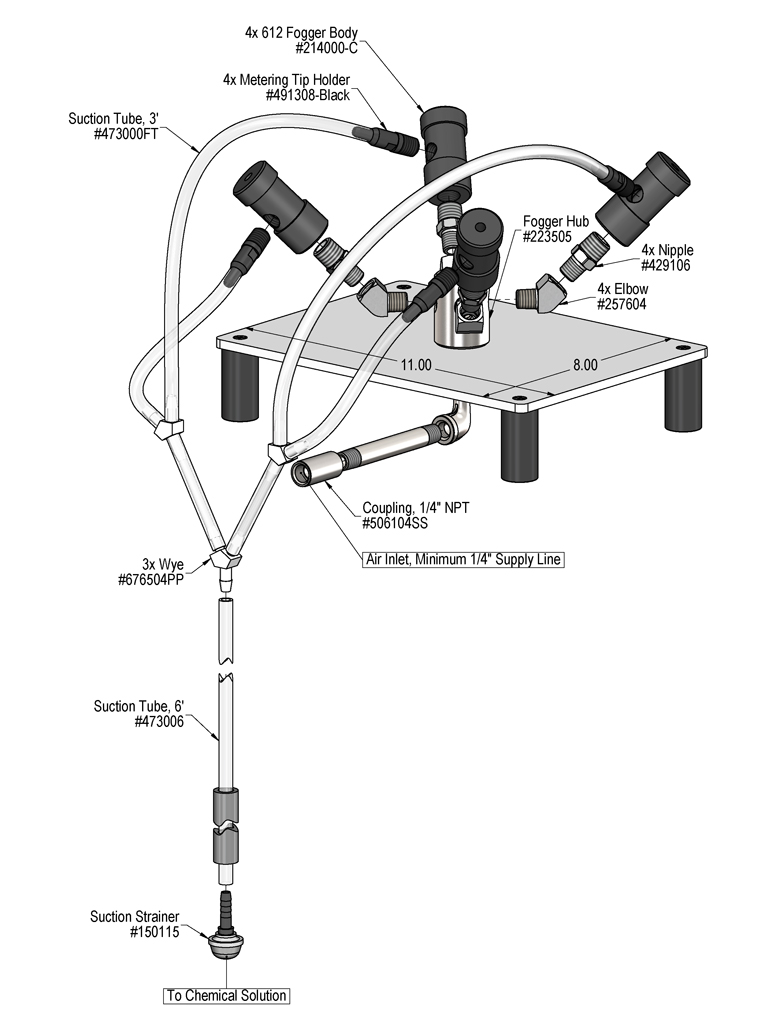

Includes
- Polypropylene base/mounting plate
- Table standoffs
- 3/8" NPT air inlet
- (4) Machined polypropylene fogger bodies
- (4) Metering tip holders
- 6' chemical suction tube and strainer
Loading related posts...
Overview
Key Features
- Can be permanently mounted or moved for use in multiple locations
- Atomizes and sprays chemical solutions using only compressed air
- Venturi action draws pre-diluted chemical from a nearby container
- Projects up to 6' in 4 directions
- Low volume output is ideal for fogging in small areas
- Damp fog (mist) fills the air and covers exposed surfaces with chemical, including hard-to-reach areas
- Optional metering tips can reduce chemical usage and output wetness
- Chemical resistant polypropylene construction ensures durability and years of outstanding performance
- See Catalog 7 for hand held, permanently mounted and portable foggers
- Use the Lafferty Fogger Planning Tool to design the optimal fogging system for any facility
Includes
- Polypropylene base/mounting plate
- Table standoffs
- 3/8" NPT air inlet
- (4) Machined polypropylene fogger bodies
- (4) Metering tip holders
- 6' chemical suction tube and strainer
