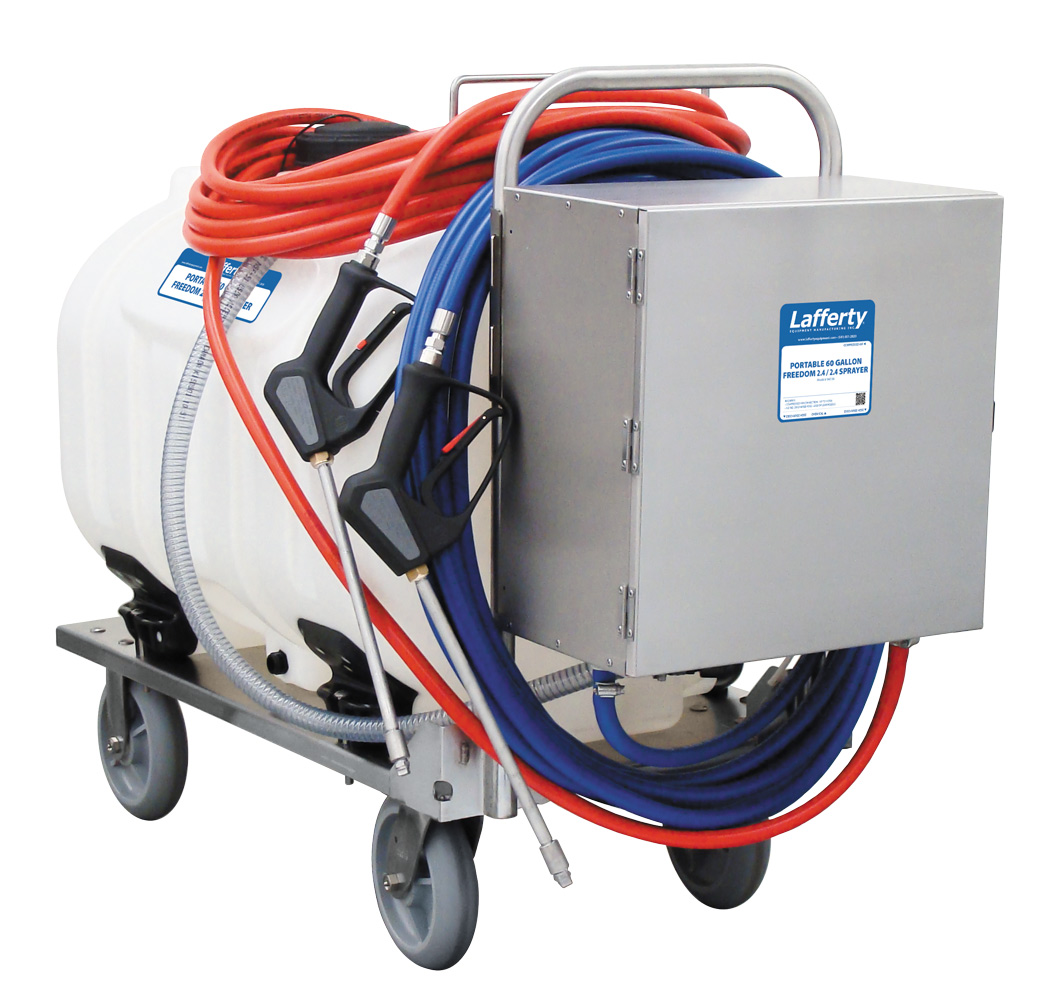

Portable 60 Gallon Freedom 2.4 / 2.4 Sprayer
Air Assisted
Air Pump Driven
General Purpose
N/A: Compressed-Air Pump
Portable
Sanitize / Spray
The Portable 60 Gallon 2.4 / 2.4 Freedom Sprayer is a dual-hose chemical applicator for projecting ready-to-use chemical solution as a fan pattern spray. This unit features a lockable, stainless steel enclosure, a 4-wheel stainless steel cart, and a rugged 1/2" Sandpiper air-operated, double-diaphragm pump that draws pre-diluted chemical from the 60 gallon tank and discharges the solution through the hose, wand and nozzle. Each discharge assembly includes two spray nozzles, which provide either 5 or 3.25 minutes of spraying time per 20 gallons of solution, depending on the nozzle used (assuming both hoses in operation).
Key Features
- Two discharge hose assemblies for single or dual use.
- Offers a higher volume than Liberty Sprayers, projecting a low or medium flow fan pattern, depending on the nozzle used from the two included.
- Sprays for 5 or 3.5 minutes per 20 gallons of solution, based on nozzle(s) used (assuming both hoses in operation).
- Draws pre-diluted chemical from the 40 gallon tank
- Rugged 1/2" Sandpiper AODD pump with Santoprene diaphragms
- The chemical flow rate is regulated to match the pump's optimum operating range, which protects the pump from running, repetitively, at maximum capacity
- Powered solely by compressed air
- Chemical resistant wetted components ensure durability and years of reliable service
- Available with a 40 gallon tank (#942124)
- Available with one hose and 60 gallon tank (#942126)
- See other air-operated sprayers and foamers in Catalog 4

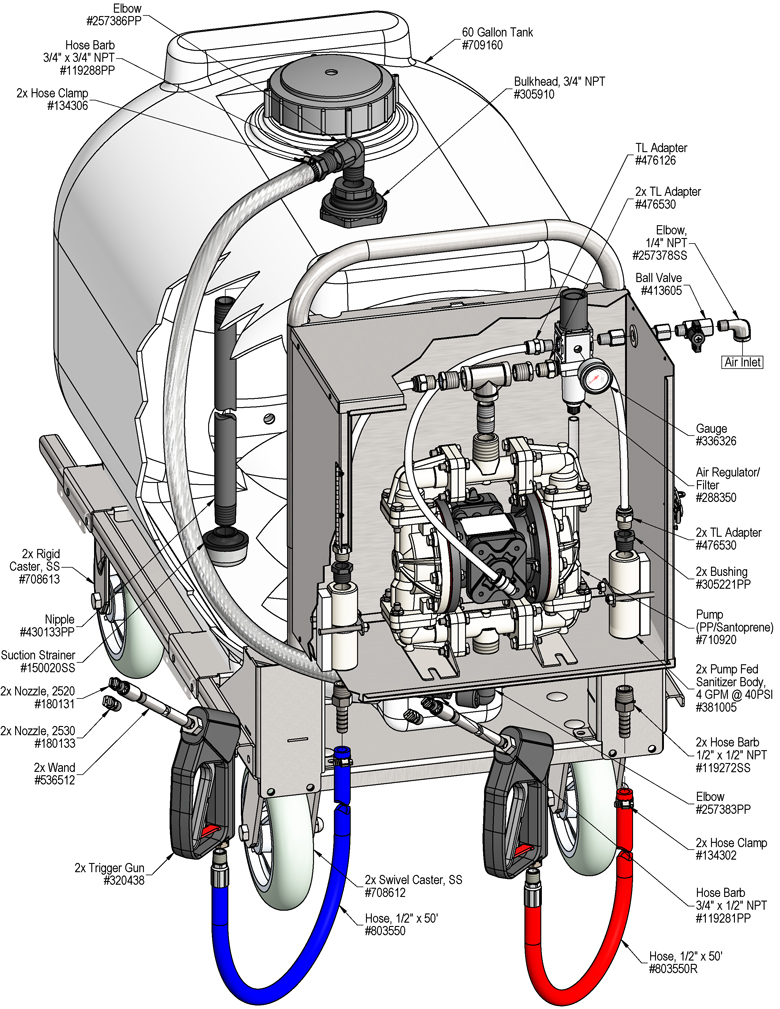

Includes
- All stainless steel 4-wheel cart assembly
- Non-marking tires
- Two stainless steel swivel casters
- 60 gallon, wide-mouth polyethylene tank with drain
- Lockable, stainless steel pump enclosure
- Air inlet ball valve and regulator/filter
- Sandpiper 1/2" AODD pump
- Two 50' discharge hoses, each with stainless steel ball valve, stainless steel wand and two fan nozzles
