Timed FPS Transfer System
Air Assisted
Electricity (120V)
General Purpose
Programmable Systems
Transfer
Wall Mount / Stationary

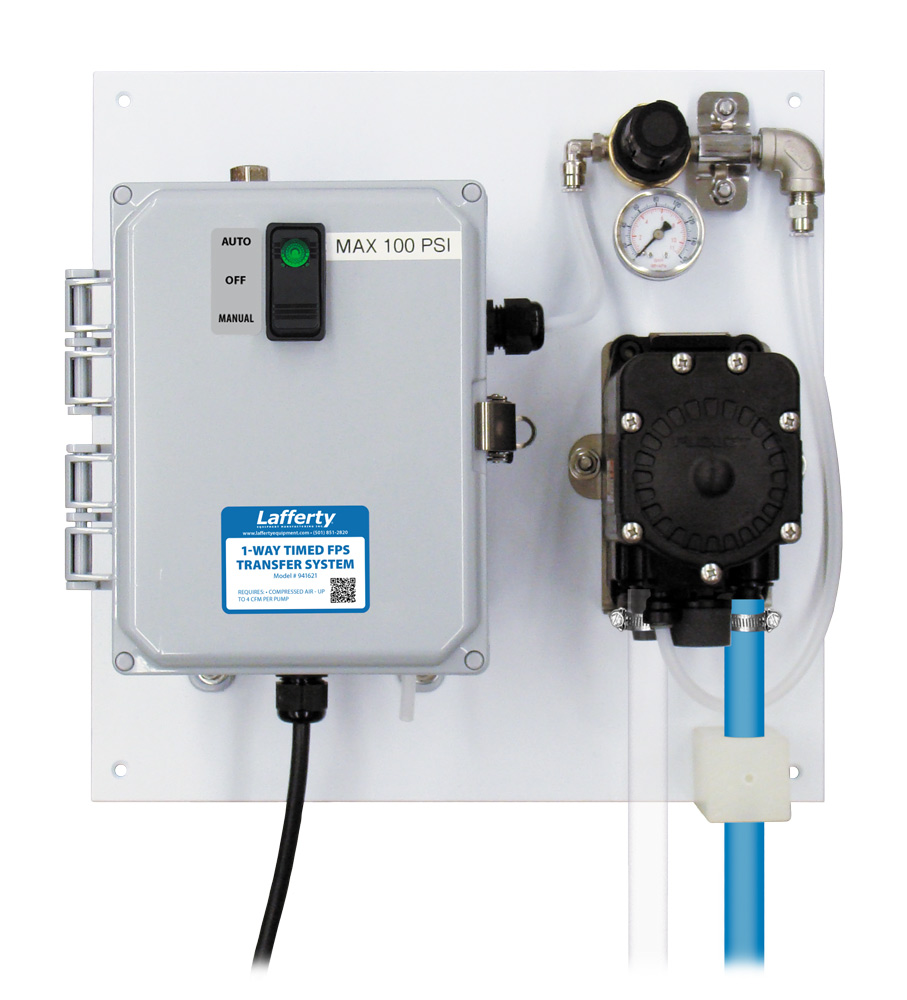

The Timed FPS Transfer System is a chemical transfer system for filling any size container with chemical concentrate or ready-to-use solution. Compressed air powers a FloJet air pump which draws chemical from a bulk container and dispenses it into any other container. This unit features on/off rocker switch activation with an adjustable timer to help prevent over usage.
Key Features
- Transfers chemicals from bulk containers into any sized container or cleaning equipment safely and without mess
- The rocker switch activated, adjustable, single-shot timer increases employee safety and labor efficiency
- Transfer chemical concentrate or ready-to-use solution
- Pump mounted on a unique Lafferty quick-release, stainless steel bracket to easily replace pumps
- Discharge hose stabilizer coupling protects pump discharge outlet from abuse
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- See transfer systems for up to 5 chemicals and other chemical management systems in Catalog 9

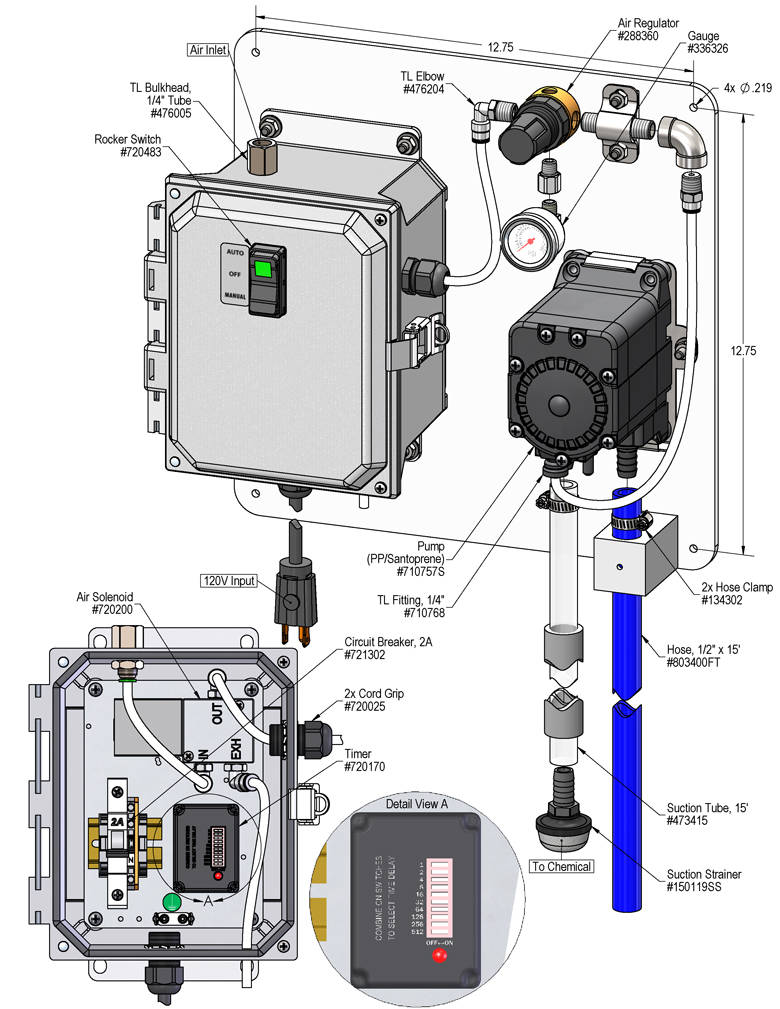

Includes
- Polypropylene mounting panel
- Timer control box with rocker switch activation
- Air regulator and air pressure gauge
- FloJet AODD Pump with Santoprene diaphragms
- Stainless steel pump quick release bracket
- 15' chemical pickup tube
- 10' discharge hose
Overview
Key Features
- Transfers chemicals from bulk containers into any sized container or cleaning equipment safely and without mess
- The rocker switch activated, adjustable, single-shot timer increases employee safety and labor efficiency
- Transfer chemical concentrate or ready-to-use solution
- Pump mounted on a unique Lafferty quick-release, stainless steel bracket to easily replace pumps
- Discharge hose stabilizer coupling protects pump discharge outlet from abuse
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- See transfer systems for up to 5 chemicals and other chemical management systems in Catalog 9
Includes
- Polypropylene mounting panel
- Timer control box with rocker switch activation
- Air regulator and air pressure gauge
- FloJet AODD Pump with Santoprene diaphragms
- Stainless steel pump quick release bracket
- 15' chemical pickup tube
- 10' discharge hose
