1-Way FPS MM Transfer System
Air Assisted
General Purpose
HC (High Concentrate)
Medium Volume
Proportion and dispense
Transfer
Wall Mount / Stationary

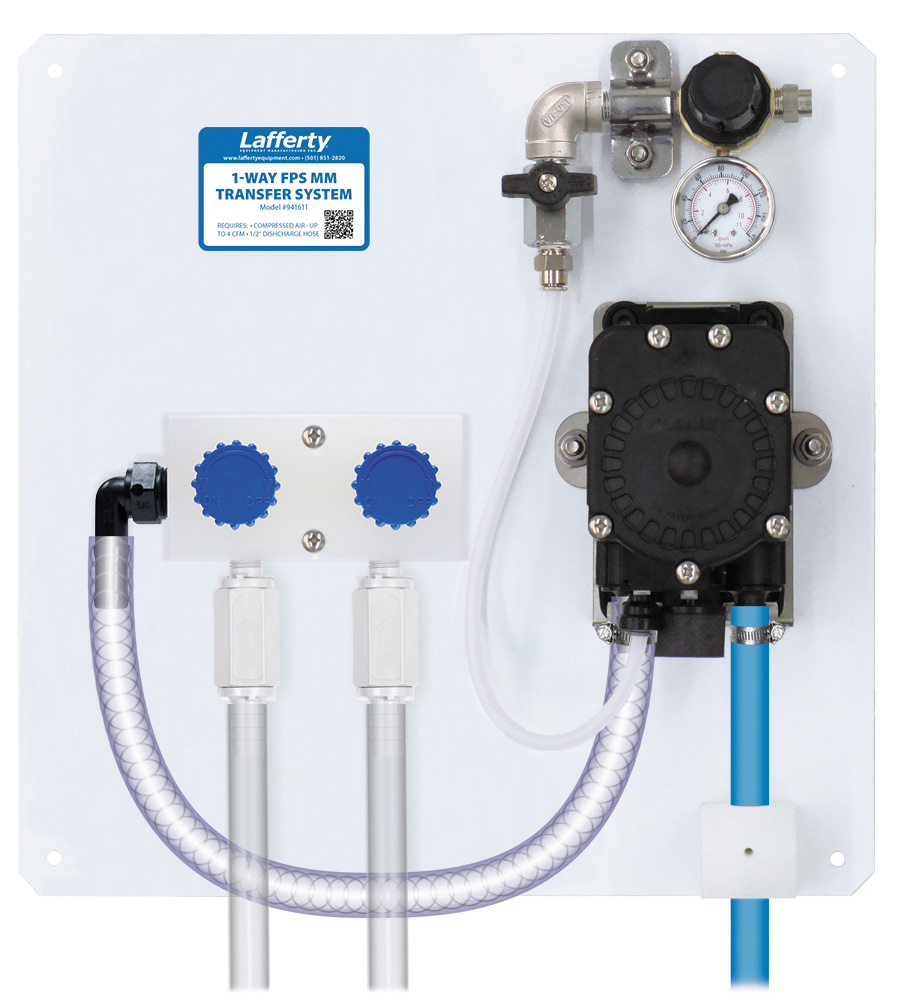

The 1-Way FPS MM Transfer System is a air pump driven chemical transfer system designed to blend 2 compatible chemical concentrates, or 1 chemical concentrate with water, and dispense the solution into any sized container. This unit uses a FloJet air pump to draw the 2 liquids through a unique metering manifold to create virtually any ratio. The solution is then dispensed into any container through a 15 foot discharge hose and trigger gun.
Key Features
- Draws and blends 2 compatible chemical concentrates or 1 chemical concentrate and water
- Creates virtually any dilution ratio using a unique metering manifold
- Increases safety and labor efficiency
- Requires only compressed air to operate
- Pump mounted on a unique Lafferty quick-release, stainless steel bracket to easily replace pumps
- The convenient positive shut-off trigger gun prevents the unit from running unattended
- Discharge hose stabilizer coupling protects pump discharge outlet from abuse
- See transfer systems for up to 5 chemicals and other chemical management systems in Catalog 9

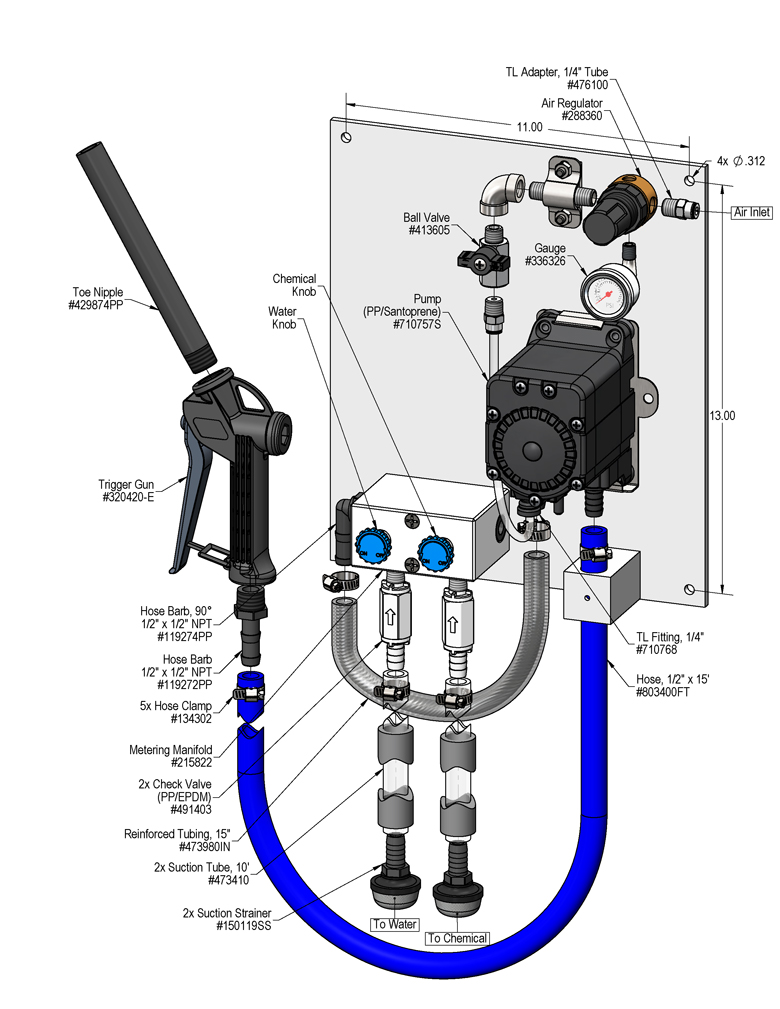

Includes
- Polypropylene mounting panel
- Air regulator and air pressure gauge
- FloJet AODD Pump with Santoprene diaphragms
- Stainless steel quick release pump bracket
- Machined polypropylene metering manifold
- Two 6' chemical pickup tubes with strainers
- 15' discharge hose
- Polypropylene trigger gun with stainless steel and EPDM internal components
