1-Way Lock Box FPS Transfer System
Air Assisted
General Purpose
Transfer
Wall Mount / Stationary
The 1-Way Lock Box FPS Transfer System is for filling any sized container with chemical concentrate or ready-to-use solution. The Lock Box model features a lockable, stainless steel mounting enclosure to protect the pump and air regulator. Compressed air powers a FloJet air pump which draws chemical from the drum or tote and dispenses it through a 15 foot discharge hose and trigger gun. This unit uses a ball valve as the on/off control for the pump.
Key Features
- Stainless steel enclosure protects the pump and air regulator from abuse, and prevents unauthorized tampering when a user-supplied padlock is added
- Safely transfers chemicals from bulk containers into any other container or cleaning equipment tank
- Transfers chemical concentrate or ready-to-use solution
- Requires only compressed air to operate
- The convenient positive shut-off trigger gun prevents the unit from running unattended
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- See transfer systems for up to 5 chemicals and other chemical management systems in Catalog 9

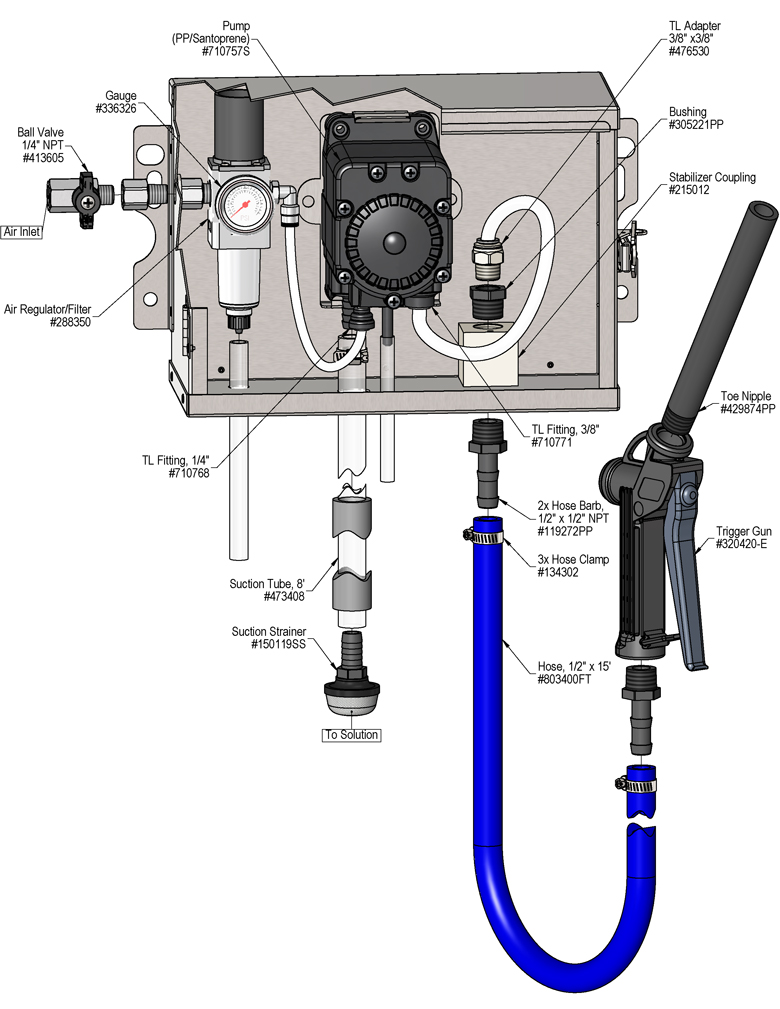

Includes
- Stainless steel mounting enclosure with lockable door clasp
- Air regulator and air pressure gauge
- FloJet AODD Pump with Santoprene diaphragms
- 15' chemical pickup tube and discharge hose
- Polypropylene trigger gun with stainless steel and EPDM internal components
Overview
Key Features
- Stainless steel enclosure protects the pump and air regulator from abuse, and prevents unauthorized tampering when a user-supplied padlock is added
- Safely transfers chemicals from bulk containers into any other container or cleaning equipment tank
- Transfers chemical concentrate or ready-to-use solution
- Requires only compressed air to operate
- The convenient positive shut-off trigger gun prevents the unit from running unattended
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- See transfer systems for up to 5 chemicals and other chemical management systems in Catalog 9
Includes
- Stainless steel mounting enclosure with lockable door clasp
- Air regulator and air pressure gauge
- FloJet AODD Pump with Santoprene diaphragms
- 15' chemical pickup tube and discharge hose
- Polypropylene trigger gun with stainless steel and EPDM internal components
