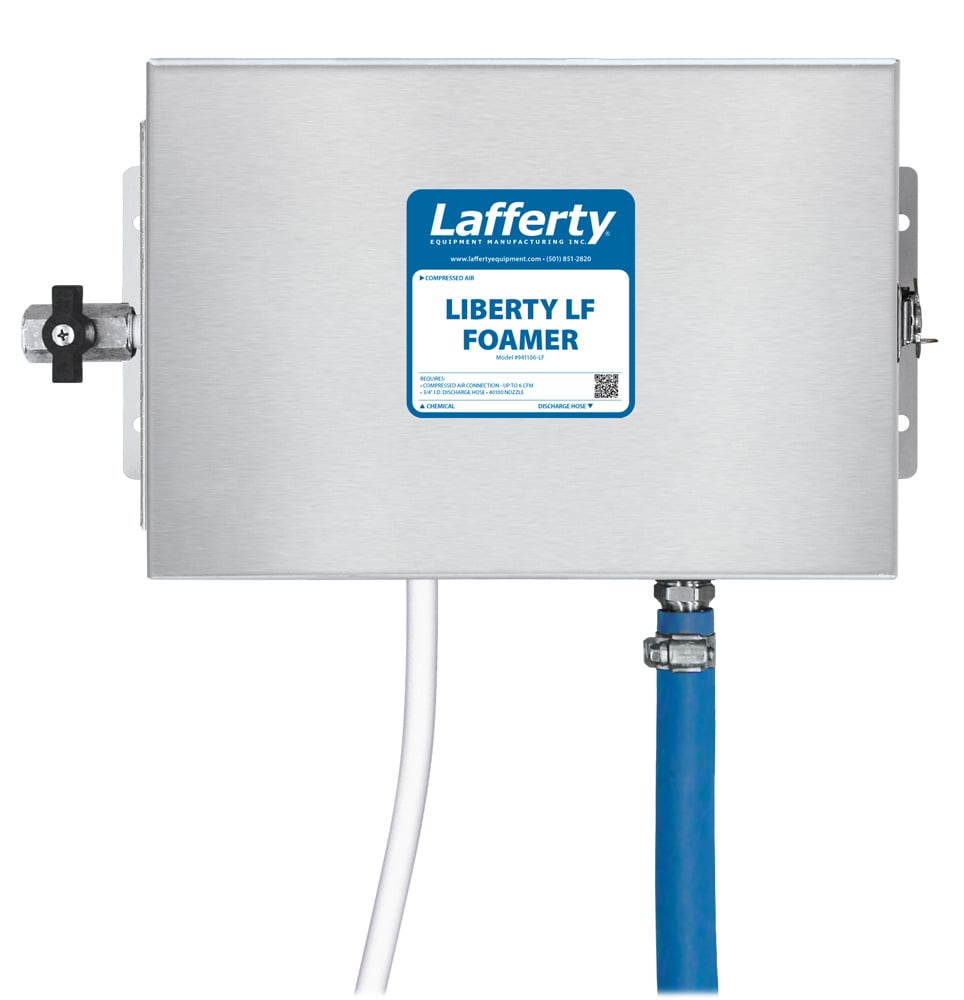

Liberty LF Foamer
Air Assisted
Foam
General Purpose
Low Volume
N/A: Compressed-Air Pump
Polypropylene Body
Wall Mount / Stationary
The Liberty LF Foamer is a "low volume" foam applicator for projecting ready-to-use foaming chemicals on to any surface up close or at distances up to 9 feet. This unit features a stainless steel enclosure and uses a cost-effective 1/4" Flojet air-operated, double-diaphragm pump to draw pre-diluted chemical from a static tank. It injects compressed air into the solution to greatly increase volume and coverage ability and projects rich, clinging foam through the hose, wand and fan nozzle.
Key Features
- Draws pre-diluted chemical solution from a static tank
- Uses a cost-effective 1/4" Flojet AODD pump with Santoprene diaphragms
- The solution flow rate is regulated by the foamer body match the low-range of the air pump’s specified operating range which prevents the pump from running, at maximum capacity
- Projects a "low volume" of rich, clinging foam which increases chemical contact time and effectiveness
- Ideal for foaming small areas and near sensitive equipment
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern nozzle with up to 9' foam throw
- Covers up to 500 sq ft (46.5 sq m) in 4.5 minutes
- Adjustable foam consistency (wet/dry)
- Chemical resistant wetted components ensure durability and years of reliable service
- Available as a portable unit (#941219-LF)
- Available with a higher flow rate (#941106)
- See other air-operated foamers and sprayers in Catalog 4

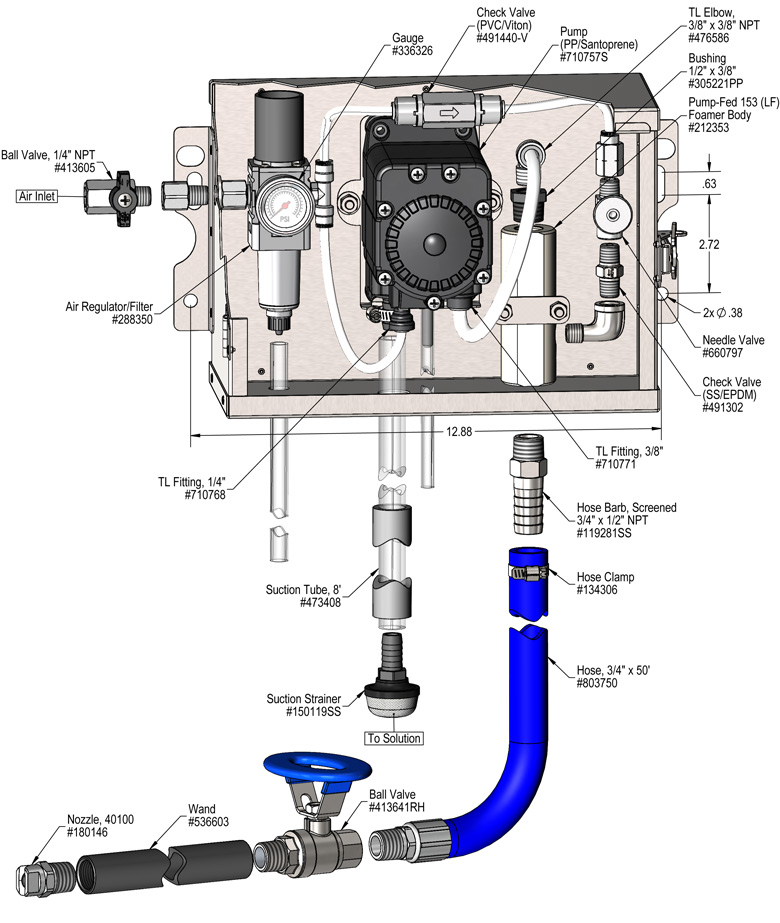

Includes
- Lockable, stainless steel enclosure
- Air inlet ball valve and regulator/filter
- Flojet 1/4" AODD pump
- Machined polypropylene pump-fed foamer body
- 50' discharge hose, stainless steel ball valve, polypropylene foam wand & fan nozzle
