2-Way FPV-PD/MM Concrete Foamer
Acid / Corrosive Systems
Air Assisted
Aluminum Brightening
Concrete Removal
Foam
HC (High Concentrate)
Low/Fluctuating Water Pressure
Medium Volume
N/A: Compressed-Air Pump
Polypropylene Body
Wall Mount / Stationary

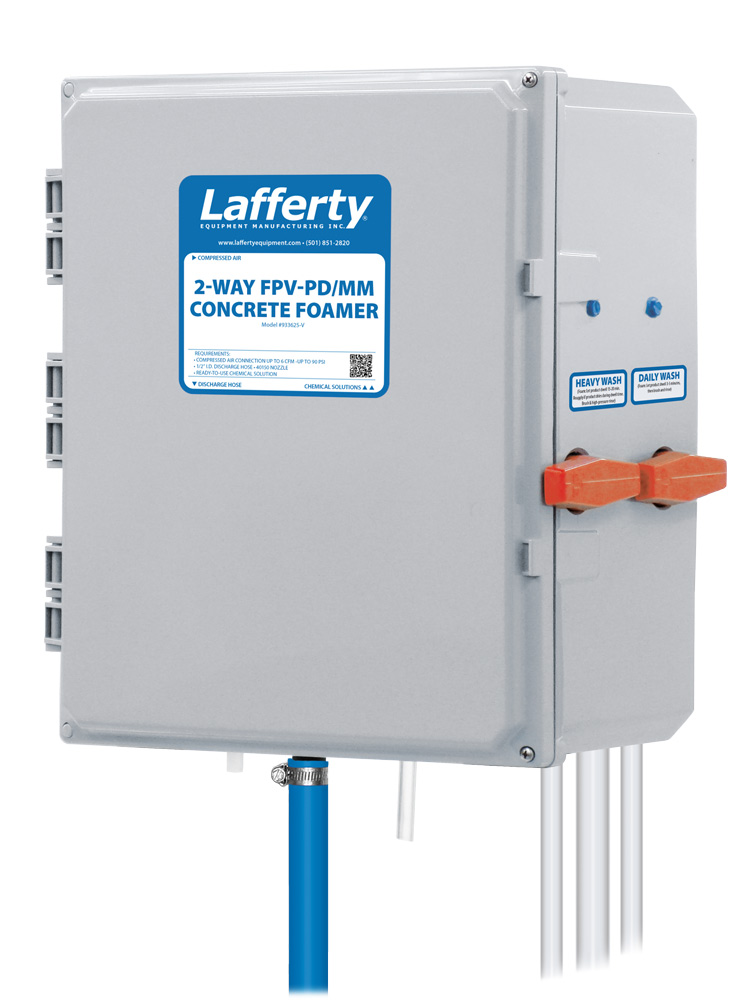

The 2-Way FPV-PD/MM Concrete Foamer is a foam applicator for projecting 2- highly corrosive chemicals such as those used to remove concrete and for aluminum brightening. This acid-resistant system uses an air-operated, double-diaphragm, Flojet pump to draw a ready-to-use chemical solution from one static tank, or mix water and chemical concentrate from separate tanks. Compressed air is injected into the solution to greatly increase volume and coverage ability. Rich, clinging foam is projected through the hose, wand and fan nozzle on to any surface.
Key Features
- Draws either a ready-to-use chemical solution or water and chemical concentrate through a unique metering manifold that adjusts chemical to water ratio from 1:1 to neat chemical
- Projects rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- The foamer body optimizes the volume and produces the ideal amount of foam to avoid excessive run-off
- Fan pattern nozzle for quick coverage
- Adjustable foam consistency (wet/dry)
- Corrosion resistant wetted components ensure durability and years of reliable service
- Available without a metering manifold (#933602-V)
- See other Lafferty acid sprayers and foamers in Catalog 8

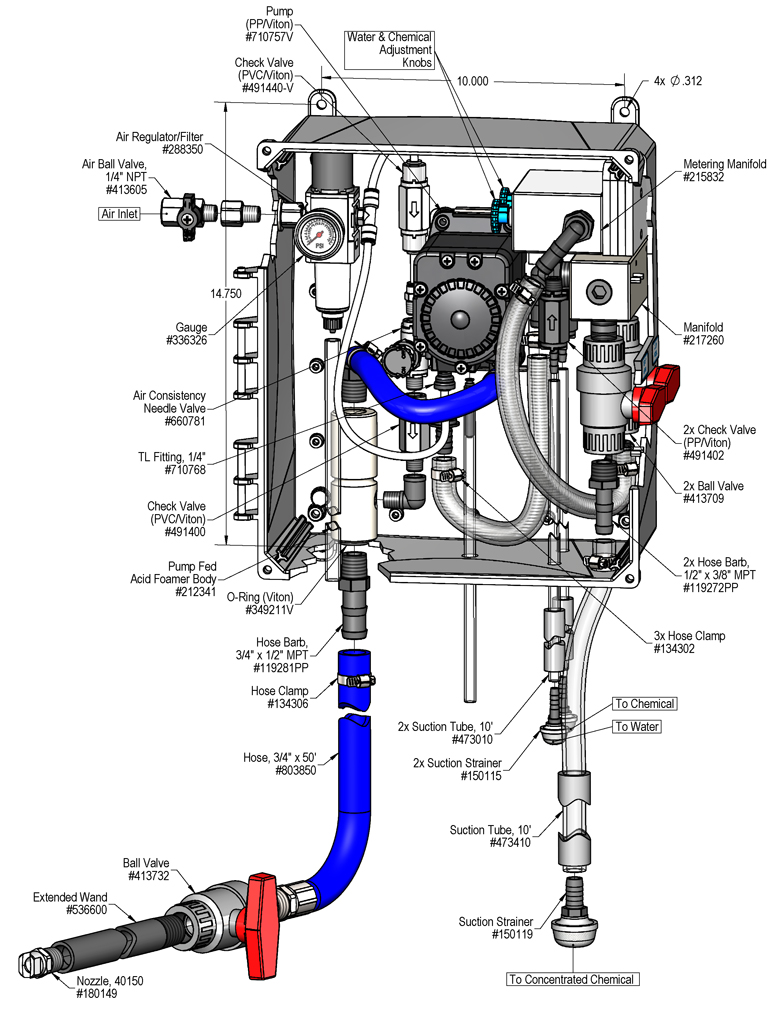

Includes
- Chemical resistant plastic enclosure
- Air inlet ball valve and regulator/filter
- Flojet AODD pump with Viton diaphragms
- 2- PVC chemical selector ball valves
- Machined chemical/water metering manifold
- Machined polypropylene pump-fed foamer body
- 50' discharge hose, polypropylene wand, PVC ball valve and fan nozzle
