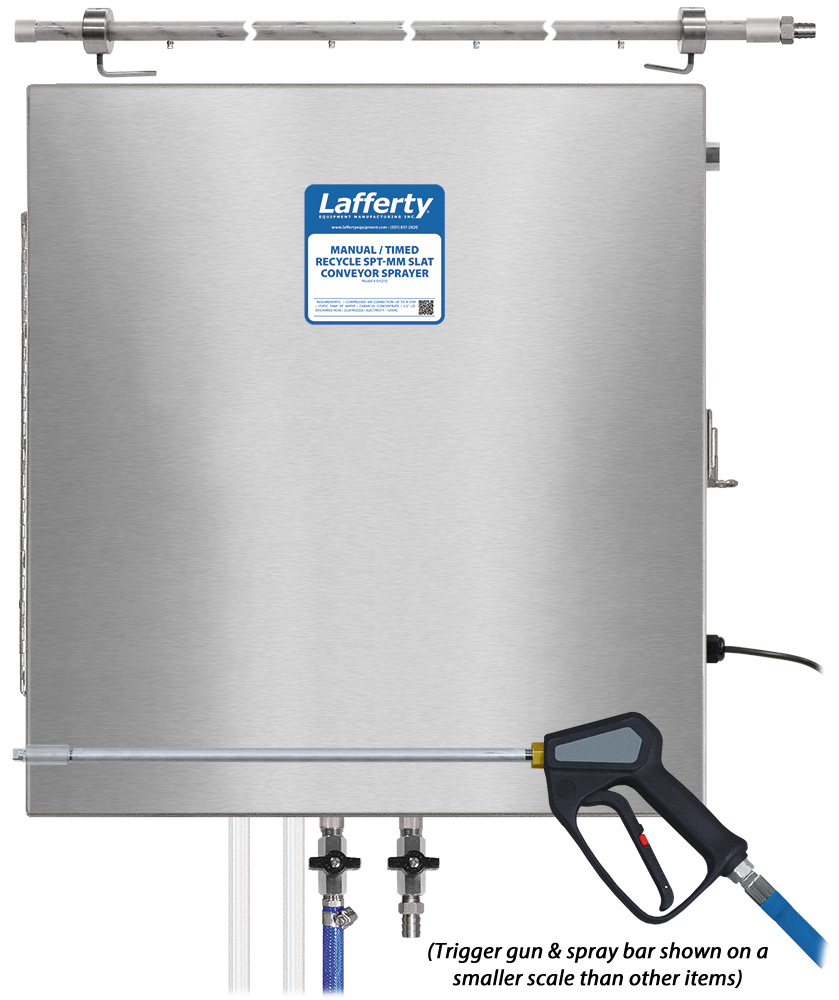

Manual / Timed Recycle SPT-MM Slat Conveyor Sprayer
Asphalt Release
Electricity (120V)
Low/Fluctuating Water Pressure
Sanitize / Spray
Wall Mount / Stationary
The Manual / Timed Recycle SPT-MM Slat Conveyor Sprayer is an asphalt release system for slat conveyors that applies chemical and recycles automatically, with a manual override. This system is designed for facilities that have no, low, or fluctuating water pressure. It uses a rugged 1/2" Sandpiper air-operated, double-diaphragm pump to draw water and chemical concentrate from user-supplied static containers and blend them "on-the-fly" using a metering manifold to achieve virtually any dilution ratio. When the adjustable recycle timer activates the system, solution flows to a spray bar suspended over the slat conveyor. In override mode, release agent is projected through a trigger gun and fan nozzle.
Key Features
- Designed to automatically spray release chemicals on to slat conveyors and for manual application to truck beds and tools
- A rugged 1/2" AODD pump draws chemical concentrate and water from separate static tanks and blends them "on-the-fly"
- The adjustable run/delay timer automatically applies chemical via a fixed spray bar for up to 6 minutes and delays up to 60 minutes before reactivation
- The override feature allows the user to apply chemical to trouble spots using a trigger gun
- Evenly, and completely, coats conveyor belts up to 34" wide
- Achieves a wide range of dilution ratios using a metering manifold to control chemical and water flow
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- To allow for customization in any facility, discharge hose for the spray bar is sold separately
- See other Lafferty asphalt release equipment and industrial chemical applicators in Catalog 8

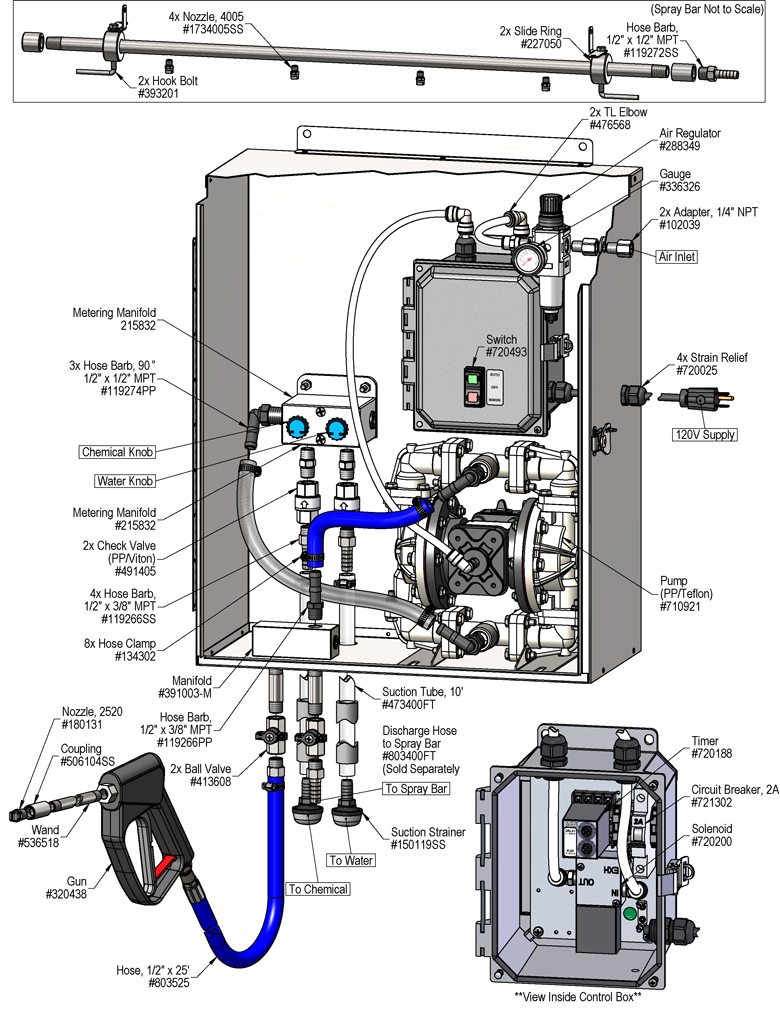

- Lockable, stainless steel pump enclosure
- Sandpiper 1/2" AODD pump (Teflon diaphragms - Santoprene available)
- Machined polypropylene metering manifold
- Control box with delay/run timers & override switch
- 34" coverage stainless steel spray bar with mounting slide brackets
- 25' discharge hose, trigger gun, wand and fan nozzle
- Discharge hose from unit to spray bar is NOT included, order separately
