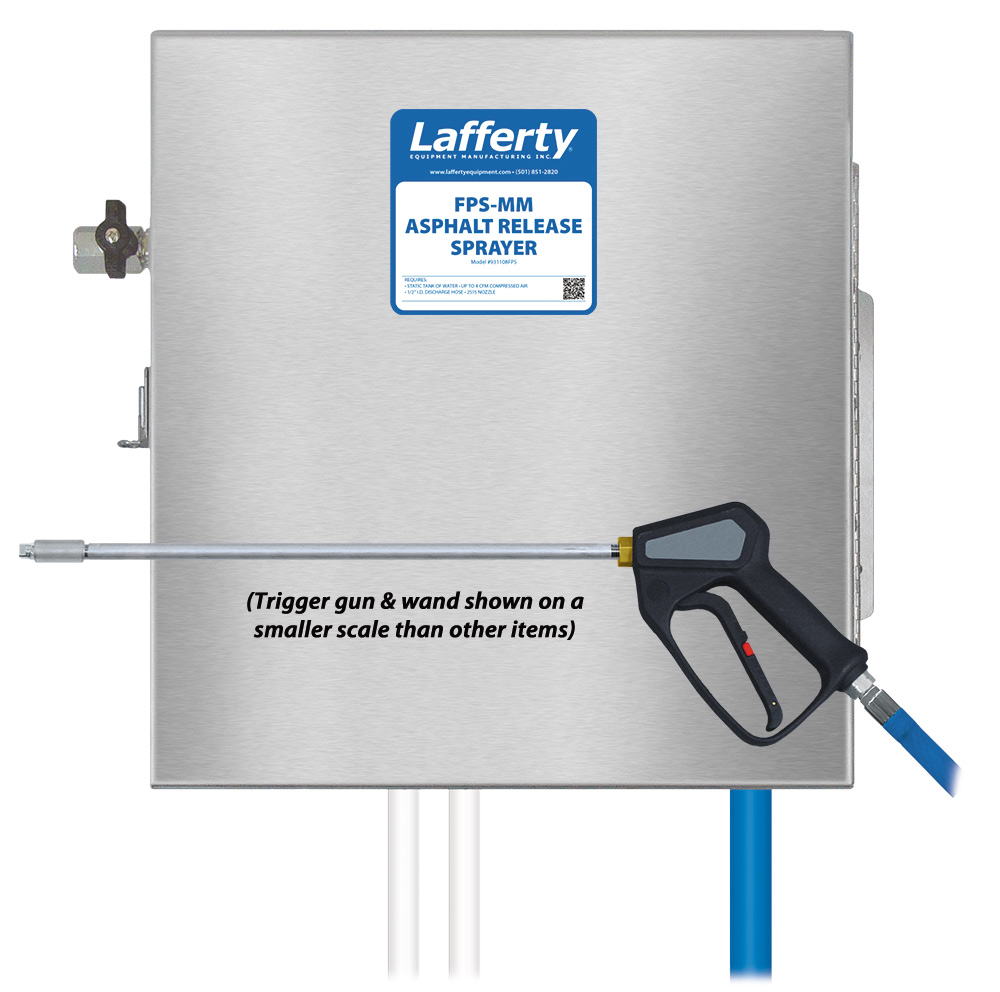

FPS-MM Asphalt Release Sprayer
Air Assisted
Asphalt Release
HC (High Concentrate)
Low/Fluctuating Water Pressure
N/A: Compressed-Air Pump
Sanitize / Spray
Wall Mount / Stationary
The FPS-MM Asphalt Release Sprayer is a chemical spray applicator for diluting and projecting asphalt release chemicals on to truck beds or tools to prevent asphalt from sticking. This system features a lockable, stainless steel enclosure and uses a cost-effective 1/4" Flojet air-operated, double-diaphragm pump to draw chemical concentrate and water from separate static tanks and blend them to create virtually any dilution ratio (or draw neat chemical). The solution is then projected through the hose, trigger gun, wand and fan nozzle.
Key Features
- Projects asphalt release chemicals on to truck beds and asphalt tools as liquid spray
- A cost-effective Flojet AODD pump draws water and chemical from separate static tanks
- The metering manifold blends water and chemical concentrate "on-the-fly" to achieve a wide range of dilution ratios
- Fan pattern spray for fast, efficient application
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Available with a rugged Warren Rupp pump (#931108WPS)
- See other industrial chemical applicators in Catalog 8

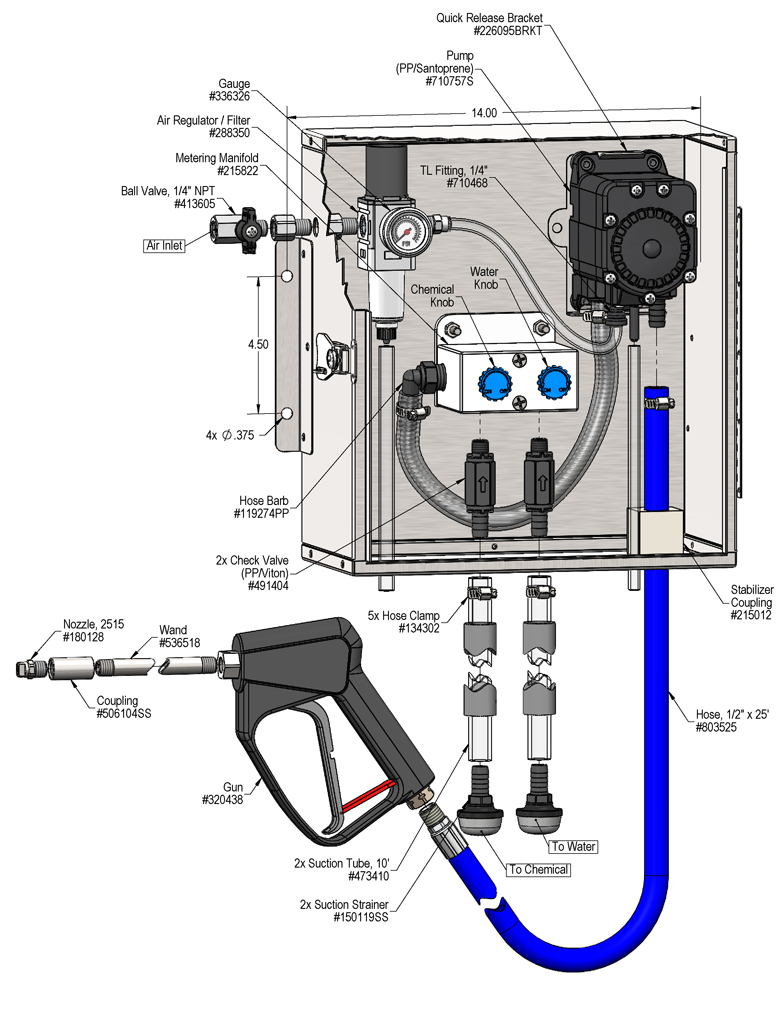

Includes
- Lockable, stainless steel pump enclosure
- Air inlet ball valve & air regulator/filter
- Machined polypropylene metering manifold
- 1/4" Flojet AODD pump (Santoprene diaphragms)
- 25' foam hose with trigger gun
- Stainless steel extension wand & fan nozzle
Loading related posts...
Overview
Key Features
- Projects asphalt release chemicals on to truck beds and asphalt tools as liquid spray
- A cost-effective Flojet AODD pump draws water and chemical from separate static tanks
- The metering manifold blends water and chemical concentrate "on-the-fly" to achieve a wide range of dilution ratios
- Fan pattern spray for fast, efficient application
- Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
- Available with a rugged Warren Rupp pump (#931108WPS)
- See other industrial chemical applicators in Catalog 8
Includes
- Lockable, stainless steel pump enclosure
- Air inlet ball valve & air regulator/filter
- Machined polypropylene metering manifold
- 1/4" Flojet AODD pump (Santoprene diaphragms)
- 25' foam hose with trigger gun
- Stainless steel extension wand & fan nozzle
