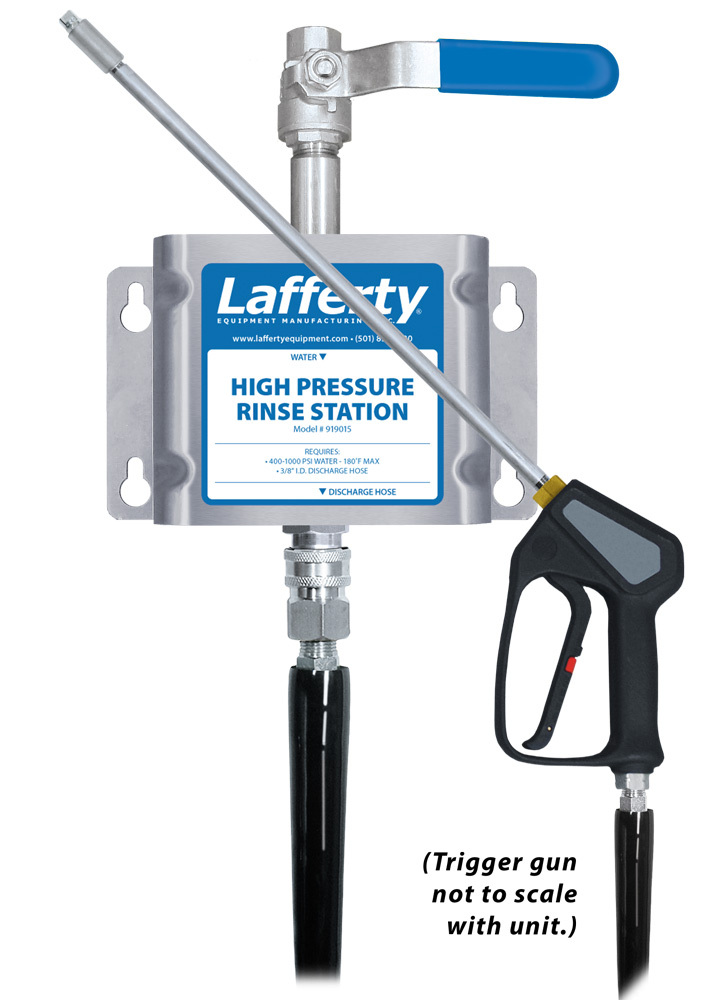

High Pressure Rinse Station
General Purpose
High Pressure
Rinse
Stainless Steel Body
Wall Mount / Stationary
The High Pressure Rinse Station is designed for both pre-clean and post-clean rinsing of a variety of surfaces in and around food and beverage plants that are equipped with central high pressure water systems. Constructed with stainless steel components, this Rinse Station connects to 400 - 1000 PSI water and projects it through a hard hitting 5 degree stainless steel nozzle. 3 flow rates available.
- Designed for rinsing down medium to large sized surfaces and objects
- Projects a rinse spray in a fan pattern for quick application (4.6 GPM @ 700 PSI)
- Quick-disconnect hose for easy installation and removal
- All stainless steel components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Available for Boosted Pressure and City Water Pressure Rinse applications

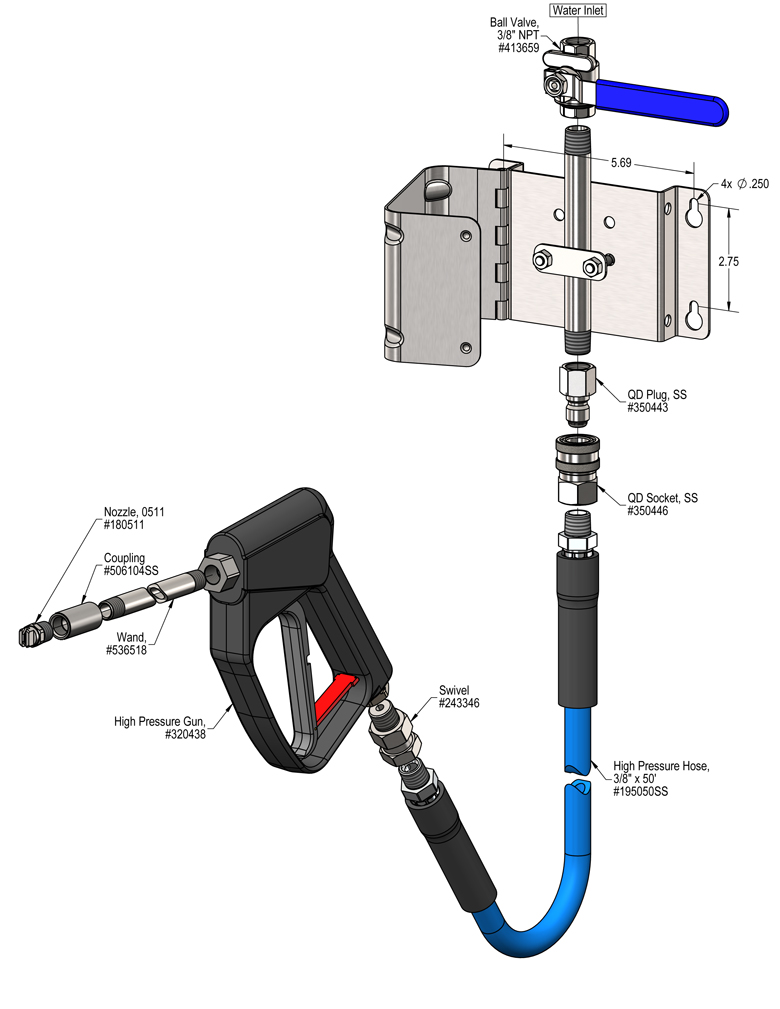

- Stainless steel mounting bracket
- Stainless steel components
- 50' high pressure discharge hose with stainless steel quick-disconnect fittings
- Trigger gun, stainless steel wand & 5 degree fan nozzle
- Standard nozzle is 0511, with 0507 and 0520 available as options for lower and higher flow rates
| Flow Rate Chart | |||
| Pressure | Flow Rate | ||
| PSI | GPM | ||
| Standard 0511 Nozzle | Optional 0507 Nozzle | Optional 0520 Nozzle | |
| 400 | 3.50 | 2.21 | 6.32 |
| 500 | 3.91 | 2.47 | 7.07 |
| 600 | 4.29 | 2.71 | 7.75 |
| 700 | 4.63 | 2.93 | 8.37 |
| 800 | 4.95 | 3.13 | 8.94 |
| 900 | 5.25 | 3.32 | 9.49 |
| 1000 | 5.53 | 3.50 | 10.00 |
Optional Water Conservation Flow Restrictors
- Rinse Stations can be equipped with optional flow restrictors
- Controls water consumption
- Machined stainless steel, in-line flow restrictor limits the amount of water per minute that can be discharged
- Flow restriction stays active even if hose or rinse gun/nozzle are changed or removed
- Restrictors, rinse nozzles and trigger guns are matched to the water pressure range to provide powerful rinsing action while limiting water volume
- Lower sewer costs due to decreased water usage
