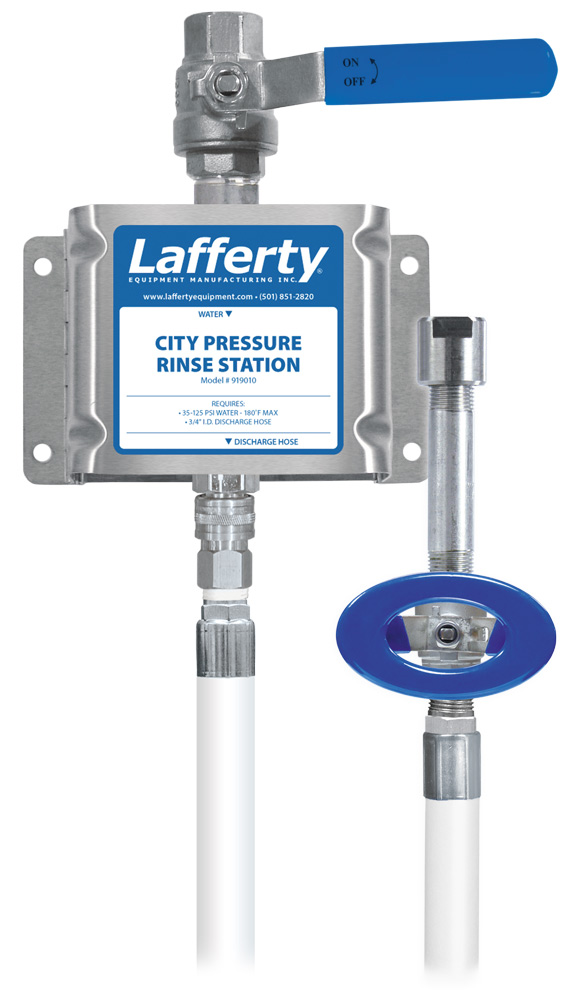

City Pressure Rinse Station
General Purpose
Polypropylene Body
Rinse
Wall Mount / Stationary
The City Pressure Rinse Station is designed for both pre-clean and post-clean rinsing of a variety of surfaces in and around food and beverage plants that utilize city water pressure. Constructed with stainless steel components, this Rinse Station connects to 35-125 PSI water and projects it through the unique and powerful 4 hole nozzle.
Key Features
- Designed for rinsing down medium to large sized surfaces and objects
- The unique and powerful 4-hole stainless steel rinse nozzle concentrates the flow of water through the nozzle, creating a powerful jet spray, using only city pressure water
- Projects 7.2 GPM @ 40 PSI (see flow rate chart below)
- Quick-disconnect hose for easy installation and removal
- All stainless steel components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Rinse Stations also available for High Pressure and Boosted Water Pressure Rinse applications

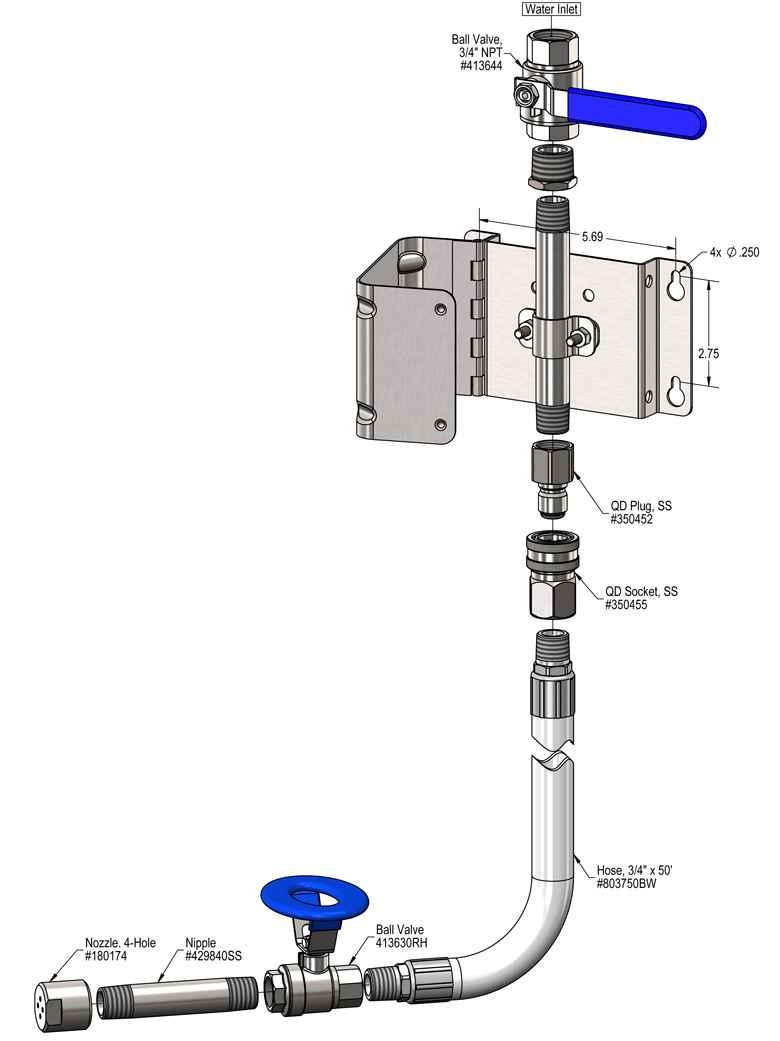

Includes
- Stainless steel mounting bracket
- Stainless steel components
- 50' discharge hose with stainless steel quick-disconnect fittings
- Stainless steel 4-hole nozzle
| Rinse Flow Rate Chart | |
| Pressure (PSI) | Flow Rate (GPM) |
| 40 | 7.2 |
| 50 | 8.05 |
| 60 | 8.82 |
| 70 | 9.52 |
| 80 | 10.18 |
| 90 | 10.80 |
| 100 | 11.38 |
| 110 | 11.94 |
| 120 | 12.47 |
Optional Water Conservation Flow Restrictors
- Rinse Stations can be equipped with optional flow restrictors
- Controls water consumption
- Machined stainless steel, in-line flow restrictor limits the volume of water per minute that can be discharged
- Flow restriction stays active even if hose or rinse gun/nozzle are changed or removed
- Restrictors and rinse nozzles are matched to the water pressure range to provide powerful rinsing action while limiting water volume
- Lower sewer costs due to decreased water usage
