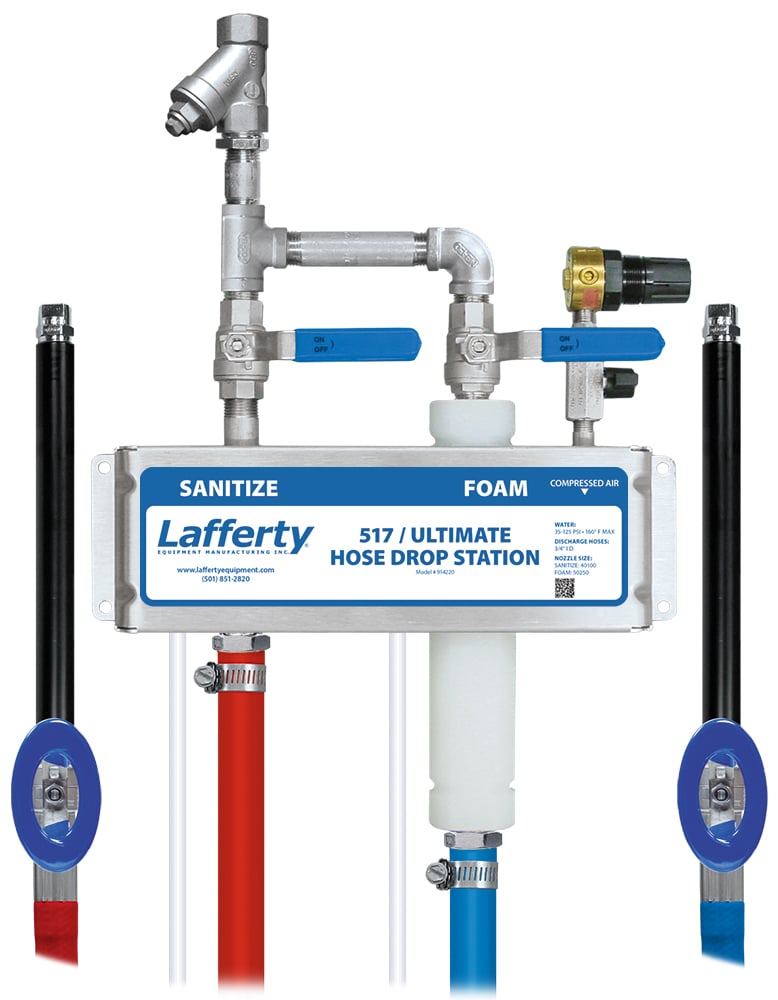

517 Sanitize / Ultimate Foam Hose Drop Station
Air Assisted
City Pressure
General Purpose
Medium Volume
Polypropylene Body
Sanitize, Foam
Venturi Dilution
Wall Mount / Stationary
The 517 Sanitize/Ultimate Foam Hose Drop Station is a combination applicator that projects one chemical as foam and another as a sanitizing spray. This venturi injection system uses standard city water pressure (35 - 125 PSI) to draw chemical concentrates into the water streams to create accurately diluted solutions using precision metering tips to control chemical usage. Compressed air is injected into the foaming solution to greatly increase volume and coverage ability. This rich, clinging foam is projected through the discharge hose and fan nozzle at distances up to 12 feet. The sanitizer solution, in the lean ratios required for no-rinse sanitizing in food plants, is projected as a fan pattern spray.
Key Features
- Designed to foam and sanitize medium to large surfaces
- Projects a medium volume of rich, clinging foam which increases chemical contact time and effectiveness
- Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
- Fan pattern foam nozzle for fast coverage (up to 12' range)
- Covers up to 500 sq ft (46.5 sq m) in 2 minutes
- Adjustable foam consistency (wet/dry)
- Dilutes concentrated sanitizers to the lean ratios required for no-rinse applications in food plants
- Sanitizer is projected as a "flooding spray" in a fan pattern for complete coverage
- All stainless steel and polypropylene wetted components ensure years of trouble-free performance
- Available with a higher sanitizer flow rate to create even leaner ratios (#914120)
- See other city water pressure foamers in Catalog 1

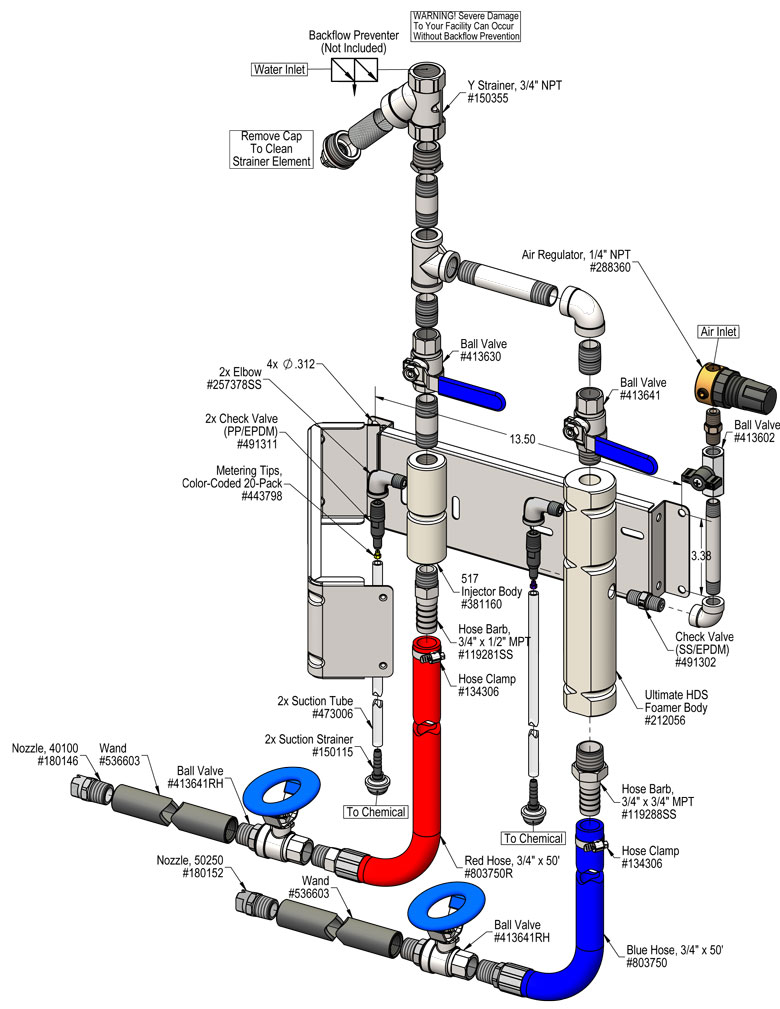

Includes
- Stainless steel mounting bracket
- Machined polypropylene foamer and sanitizer bodies
- Stainless steel inlet and discharge ball valves
- 20 color-coded precision metering tips to set dilution ratios
- 50' foam hose, polypropylene foam wand & fan nozzle
- 50' sanitize hose, polypropylene wand & fan nozzle
