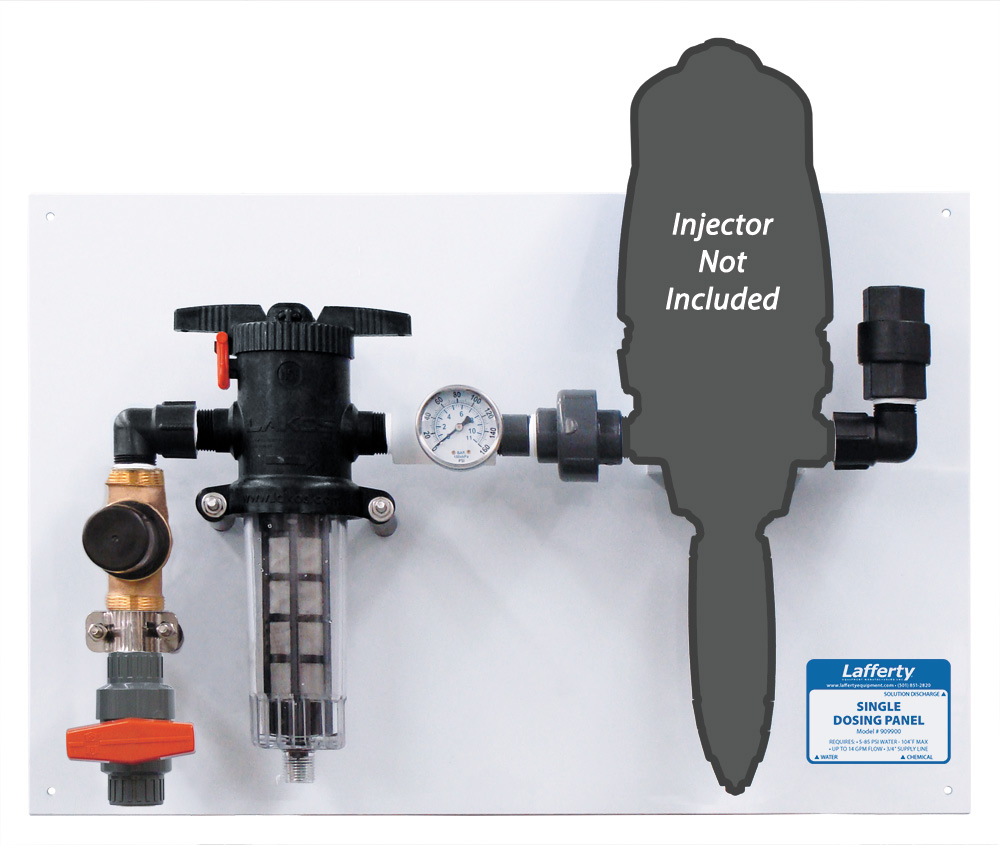

Single Dosing Panel (Injector NOT Included)
City Pressure
General Purpose
High Volume
Low/Fluctuating Water Pressure
Proportion and dispense
Super High Volume
Wall Mount / Stationary
Water powered proportioners are water-driven, non-electrical, proportional dispensing systems that dilute chemical concentrates to required ratios and deliver RTU chemical solution to pump fed applicators. For convenience and ease of installation, the Single Dosing Panel features a polypropylene mounting plate and includes a water filter, water regulator, flow restrictor, pressure gauge, and a mounting bracket for an injector (available separately). Fully adjustable proportioners cover dilution ratios from 1:3000 up to 1:5 and a choice of Viton, Aflas or Kalrez seals are available for chemical compatibility.
Key Features
- A convenient mounting solution for water-driven dosing pumps
- Accommodates proportioners with 3/4” inlet and discharge ports
- Easy-to-clean filter
- Water regulator allows for adjustments to the inlet water pressure to ensure proper solution pressure for the intended application
- Gauge displays the water pressure going to the injector
- Chemical resistant components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Available as a portable cart with spray applicator (#909380)
- Custom modifications or designs are available upon request
- See more chemical management systems in Catalog 9

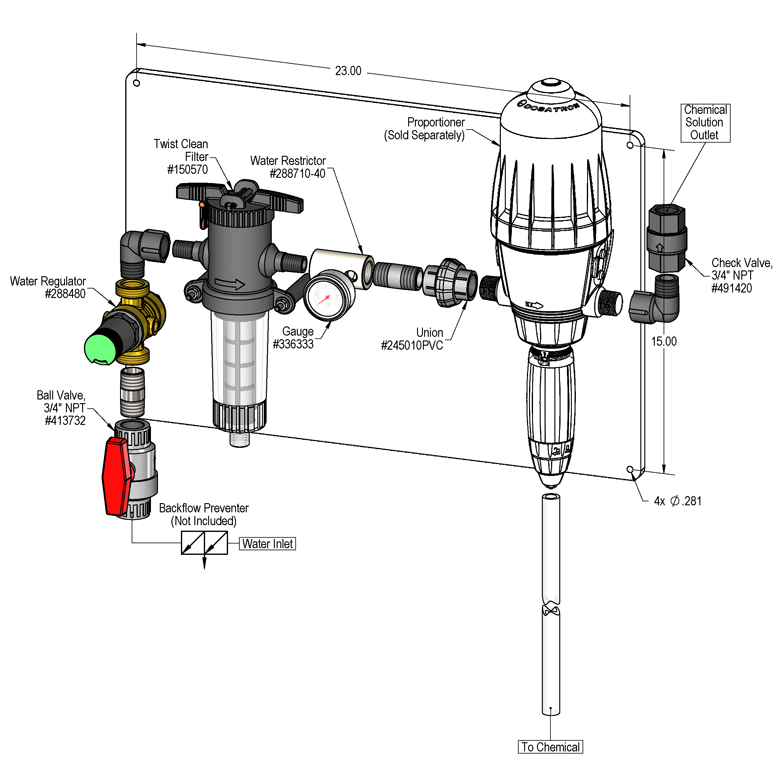

- 23" x 15" polypropylene mounting panel
- Water inlet ball valve
- Water filter
- Water pressure gauge & pressure regulator
- Water flow restrictor
- Proportioner mounting bracket
- Solution discharge check valve
Overview
Key Features
- A convenient mounting solution for water-driven dosing pumps
- Accommodates proportioners with 3/4” inlet and discharge ports
- Easy-to-clean filter
- Water regulator allows for adjustments to the inlet water pressure to ensure proper solution pressure for the intended application
- Gauge displays the water pressure going to the injector
- Chemical resistant components ensure years of outstanding performance with minimal maintenance
- Industrial-strength design holds up in tough environments
- Available as a portable cart with spray applicator (#909380)
- Custom modifications or designs are available upon request
- See more chemical management systems in Catalog 9
- 23" x 15" polypropylene mounting panel
- Water inlet ball valve
- Water filter
- Water pressure gauge & pressure regulator
- Water flow restrictor
- Proportioner mounting bracket
- Solution discharge check valve
