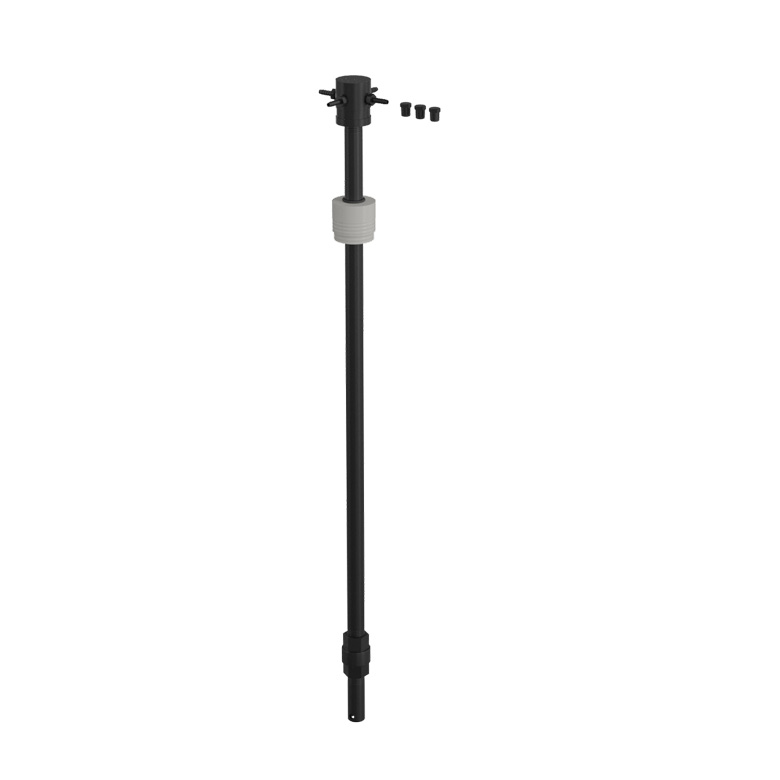

4-Way Drum Stick, 33" (EPDM)
Accessory
Jug Lids & Drum/Tote Dispensing

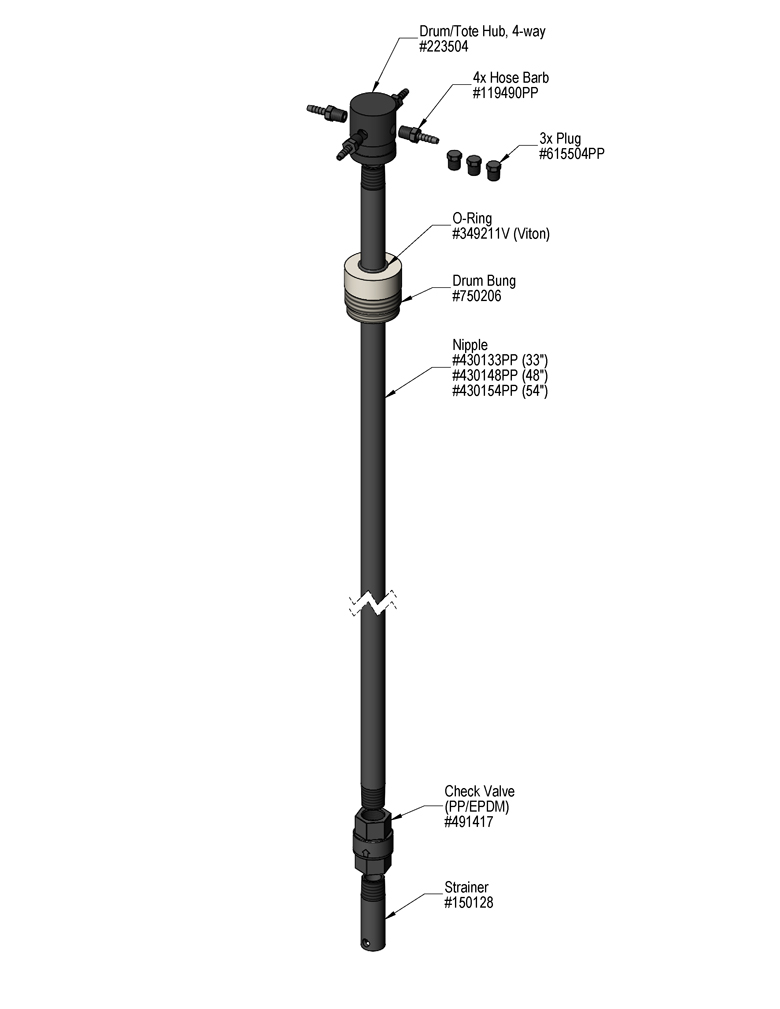

4-Way Drum Sticks are chemical pick-up assemblies for use with venturi systems to draw chemical concentrate directly from a drum. Comes complete with a Hastelloy chemical strainer, polypropylene chemical check valve (with a choice of EPDM or Viton seals), four 1/4" hose barbs to connect to suction tubing, and plugs for unused ports. Custom lengths are available on request. Standard lengths fit common drum/tote depths. Custom lengths available upon request. 4-Way Drum Sticks can ONLY be used with Mixing Stations and units with 491402 / 491401 or other spring-loaded check valves.
Designed for superior performance and industrial strength use, Lafferty Drum and Tote Sticks are a valuable addition to every chemical installation.
- 4-Way Drum Sticks are ideal for diluting one chemical to multiple ratios using a multifunction Mixing Station
- Includes (4) 1/4" hose barbs and (3) plugs for unused hose barbs
- Keeps trash out of the chemical and guards against spillage or interference
- Drum Sticks include a polypropylene drum bung adapter, machined to fit both coarse or fine-threaded bung holes
- Tote Sticks include a polypropylene tote cover
- Drum bung adapter and tote cover slide for easy depth adjustment
- Chemical resistant polypropylene construction
- Rigid 3/4" polypropylene pipe overcomes problems common with flexible tubing and facilitates high volume pumping
- Hastelloy strainer is easily accessible for cleaning
- Choice of Viton or EPDM seals
- Available in several lengths - refer to the Drum/Tote Depth Selection Guide
- Also available: Drum and Tote Sticks for single chemical dispensing with various size hose barbs to accommodate a wide range of flow rates
Chemical management made simpler, neater, cleaner and safer - Lafferty.
IMPORTANT: 4-Way Drum Sticks can ONLY be used with Mixing Stations and units with 491402 / 491401 or other spring-loaded check valves.
Overview
Designed for superior performance and industrial strength use, Lafferty Drum and Tote Sticks are a valuable addition to every chemical installation.
- 4-Way Drum Sticks are ideal for diluting one chemical to multiple ratios using a multifunction Mixing Station
- Includes (4) 1/4" hose barbs and (3) plugs for unused hose barbs
- Keeps trash out of the chemical and guards against spillage or interference
- Drum Sticks include a polypropylene drum bung adapter, machined to fit both coarse or fine-threaded bung holes
- Tote Sticks include a polypropylene tote cover
- Drum bung adapter and tote cover slide for easy depth adjustment
- Chemical resistant polypropylene construction
- Rigid 3/4" polypropylene pipe overcomes problems common with flexible tubing and facilitates high volume pumping
- Hastelloy strainer is easily accessible for cleaning
- Choice of Viton or EPDM seals
- Available in several lengths - refer to the Drum/Tote Depth Selection Guide
- Also available: Drum and Tote Sticks for single chemical dispensing with various size hose barbs to accommodate a wide range of flow rates
Chemical management made simpler, neater, cleaner and safer - Lafferty.
IMPORTANT: 4-Way Drum Sticks can ONLY be used with Mixing Stations and units with 491402 / 491401 or other spring-loaded check valves.
