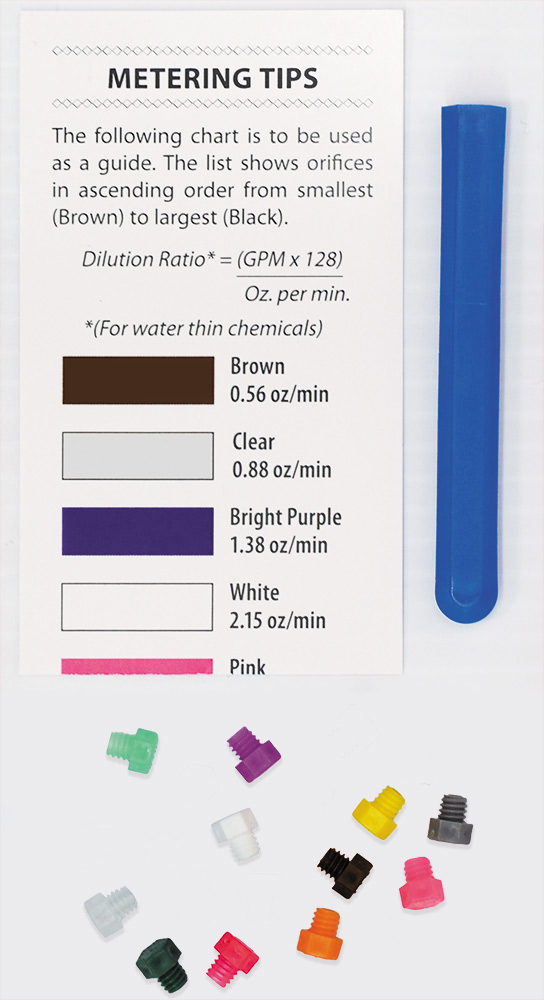

Metering Tips, PVDF - Color Coded (11)

• A metering tip is used to control the amount of chemical being drawn into the water stream in a Venturi body
• The metering tip is installed in the chemical suction tube
• Each color-coded tip allows chemical to flow through the tip at a specific rate (measured in oz. per minute)
• The final dilution ratio produced by each tip varies based on the water volume (GPM) and pressure (PSI) flowing through the Venturi body of the specific unit being installed
• Refer to the Metering Tip Selection Chart in the Installation & Operation Instructions to choose the appropriate tip
• The online Lafferty Metering Tip Calculator assists with these calculations
  • http://www.laffertyequipment.com/tools/metering-tip-calculator
• Precision molded PVDF construction for enhanced chemical resistance (standard metering tips are polypropylene)

Single sheet overview that highlights key features
