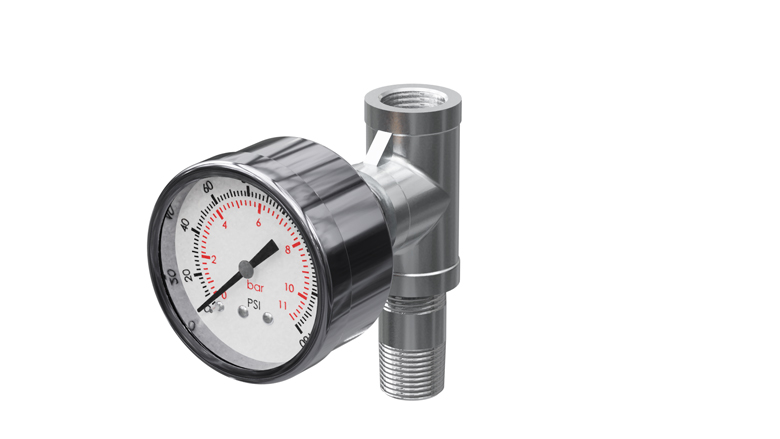

3/8" Water Pressure Gauge Assembly

Key Features

• Available for any city water pressure (20-125 PSI) system with incoming water or air connections
• Gauges eliminate guessing the pressure, which reduces set-up time and provides critical information for troubleshooting
• Water pressure gauges aid in metering tip selection and use of the Metering Tip Calculator

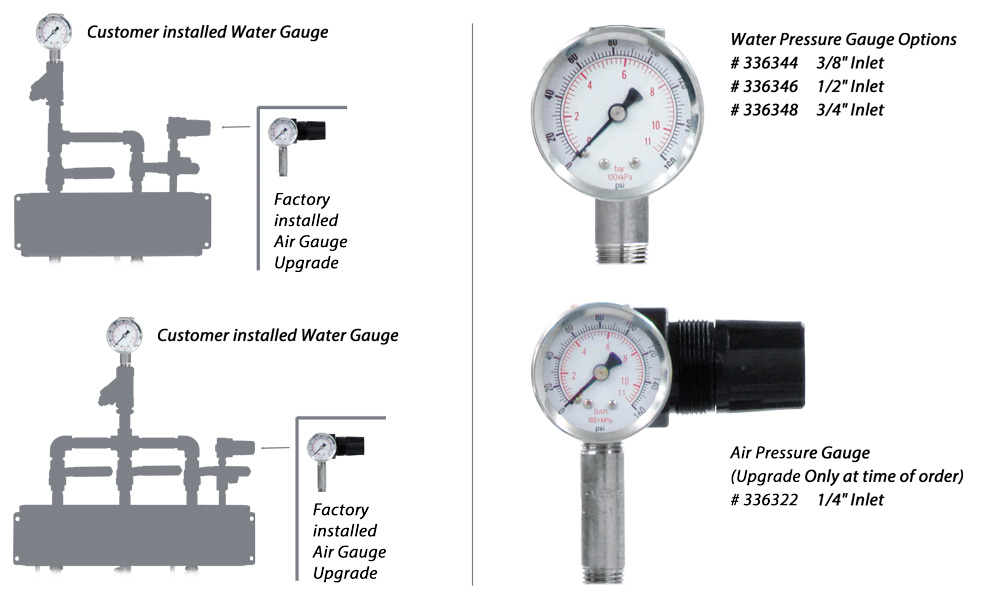

• Water pressure gauge assemblies can be installed on new or existing units, and are selected based on the size of the water inlet(s)
  • 3/8" (#336344)
  • 1/2" (#336346)
  • 3/4" (#336348)
• Air pressure gauge assembly #336322 is factory installed on new units only (specify at time of order)
• Not suitable for boosted or high water pressure systems (see #336340-HP)
• Other gauge configurations are available upon request
• See Lafferty city water pressure systems in Catalog 1

Includes

• Easy-to-read gauges
• Stainless steel fittings (see options for sizes)

Also Available

• Portable city water pressure gauge kit #336340
• Confirm water pressure before installing a new unit

Single sheet overview that highlights key features
