Dilute and Apply Any Foaming Chemical Effectively
|
|
|
|
|
|
|
|
|
|
 |
For any size foam cleaning application there is a Lafferty Foamer for the job – from the smallest job up to jumbo jets, parking lots or large buildings, especially food processing plants and equipment. Lafferty Equipment offers seven types of Venturi operated (water driven), compressed air foamers that produce rich, clinging foam for more effective cleaning.
Lafferty’s line of Venturi foamers operate with available water pressures in the ranges of 35 to 125 and 150 to 1000 PSI.
|
|
|
|
|
|
|
|
|
|
|
|
Wall Mount Foamer QuickLinks
35 to 125 psi:
LV |
LC & LCSS |
Ultimate & Ultimate SS |
High Volume (HV) |
Super HV
150 to 1000 psi:
Mega |
Hyper & Hyper SS |
HP & HPSS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LV Foamer (Wall Mount / Compressed Air Required) – 35 to 125 PSI Water
|
|
|
Features:
- Low volume output for precise foaming applications, such as small pieces of process equipment, small or tight areas
or where overspray will create a problem.
- Minimal water usage
- Foam throw distance of up to 8 feet
- Covers up to 500 ft² (46.5 m²) in 5½ minutes
Includes:
- Machined polypropylene foamer body
- Stainless steel mounting enclosure
- Air regulator
- Color-coded metering tips for up to 21 dilution ratios
- Discharge hose, ball valve, polypropylene foam wand and matching fan nozzle
|
|
|
Model: |
Description: |
913105 |
LV Foamer Complete |
|
|
|
|
|
|

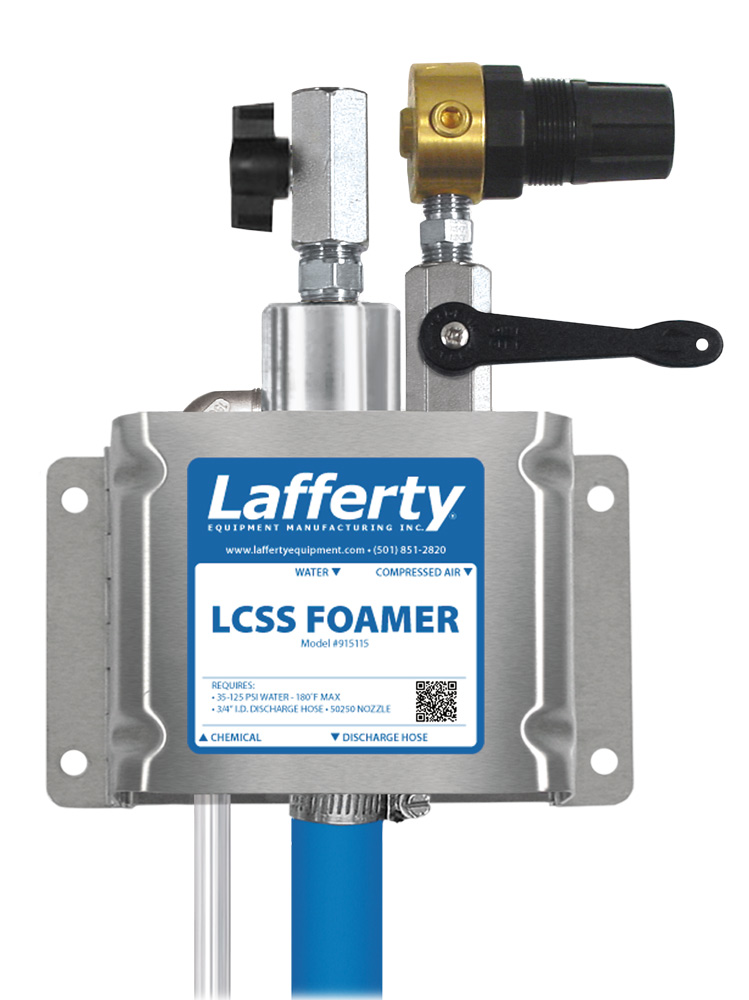

LC & LCSS Foamers (Wall Mount / Compressed Air Required) – 35 to 125 PSI Water
|
|
|
|
Features:
- Medium volume output for all foaming applications
- Foam throw distance of up to 12 feet
- Covers up to 500 ft² (46.5 m²) in 2 minutes
Includes:
- Machined polypropylene or stainless steel foamer body
- Stainless steel mounting enclosure
- Air regulator
- Color-coded metering tips for up to 21 dilution ratios
- Discharge hose, ball valve, polypropylene foam wand and matching fan nozzle
|
|
|
Model: |
Description: |
915105 |
LC Foamer Complete |
915115 |
LCSS Foamer Complete |
|
|
|
|
|
|

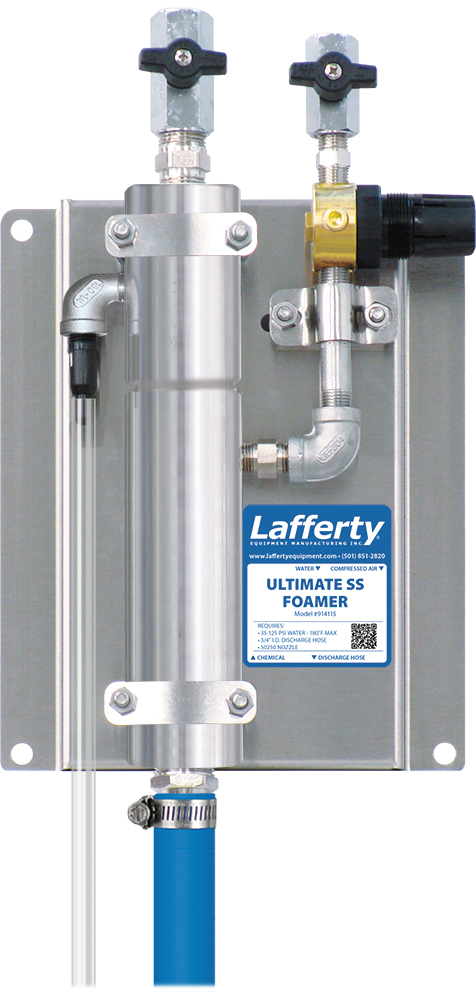

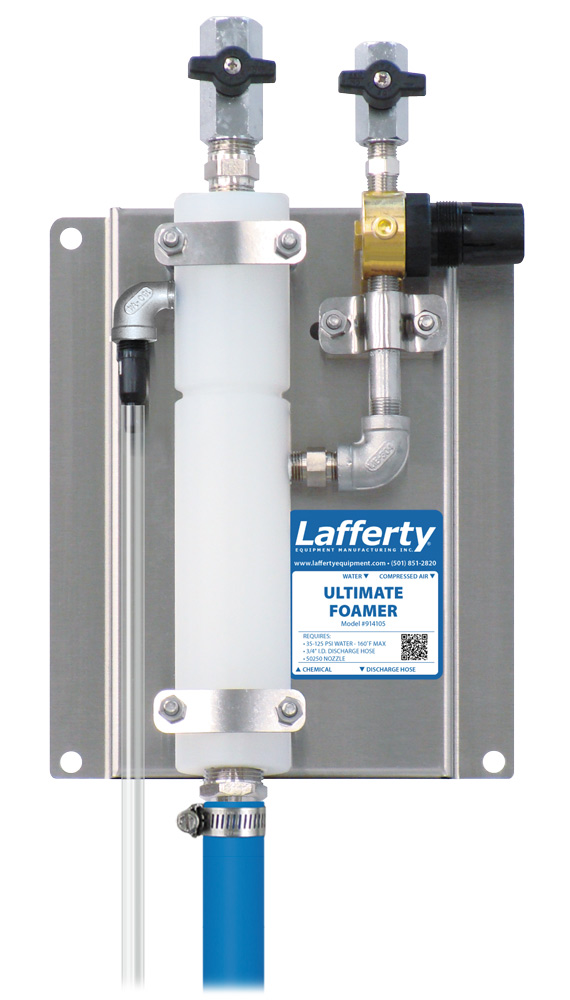

Ultimate & Ultimate SS Foamers (Wall Mount / Compressed Air Required) – 35 to 125 PSI Water
|
|
|
|
Features:
- Medium volume output for all foaming applications in food plant sanitation
- Will foam harder-to-foam chemicals and perform well when water pressure is marginal. Equipped with a 50 ft. hose.
- Foam throw distance of up to 12 feet
- Covers up to 500 ft² (46.5 m²) in 1½ minutes
Includes:
- Machined polypropylene or stainless steel foamer body
- Stainless steel mounting bracket
- Air regulator
- Color-coded metering tips for up to 21 dilution ratios
- Discharge hose, ball valve, polypropylene foam wand and matching fan nozzle
|
|
|
Model: |
Description: |
914105 |
Ultimate Foamer Complete |
914115 |
Ultimate SS Foamer Complete |
|
|
|
|
|
|

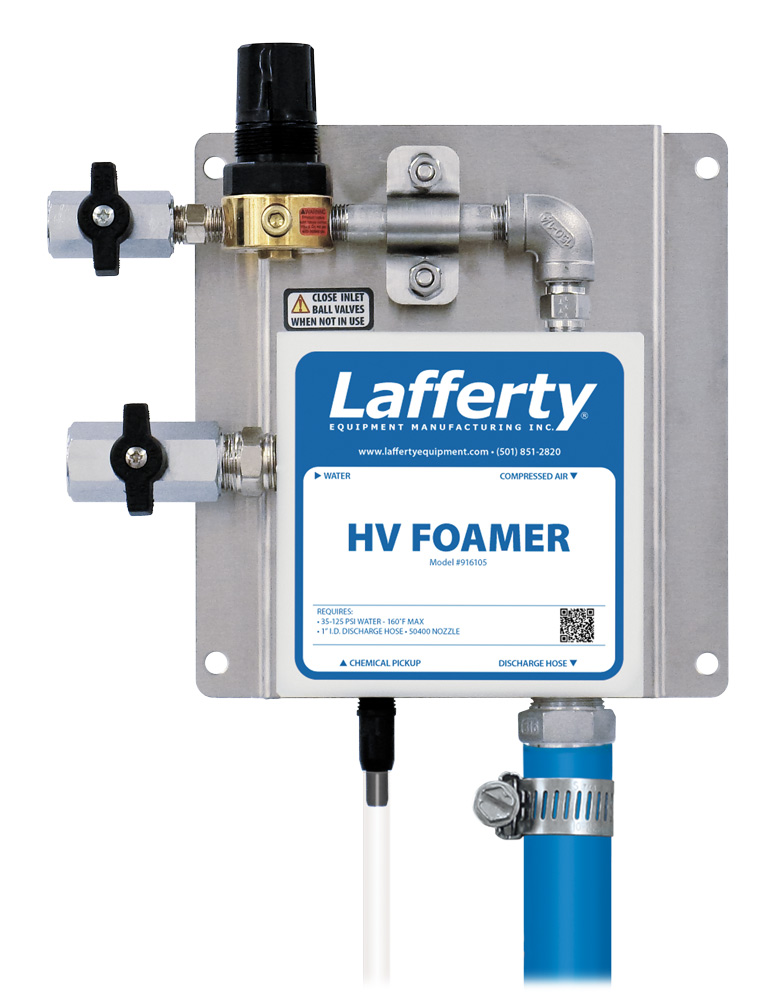

HV Foamer (Wall Mount / Compressed Air Required) – 35 to 125 PSI Water
|
|
|
Features:
- High volume output for foaming large surface areas quickly
- Foam throw distance of up to 27 feet
- Covers up to 500 ft² (46.5 m²) in 1 minute
- HVHC (High Concentrate) model available for tough cleaning jobs
Includes:
- Machined polypropylene foamer body
- Stainless steel mounting bracket
- Air regulator
- Color-coded metering tips for up to 21 dilution ratios (916105 only)
- Discharge hose, ball valve, polypropylene foam wand and 0° nozzle
|
|
|
Model: |
Description: |
916105 |
HV Foamer Complete |
916115 |
HVHC Foamer Complete |
|
|
|
|
|
|

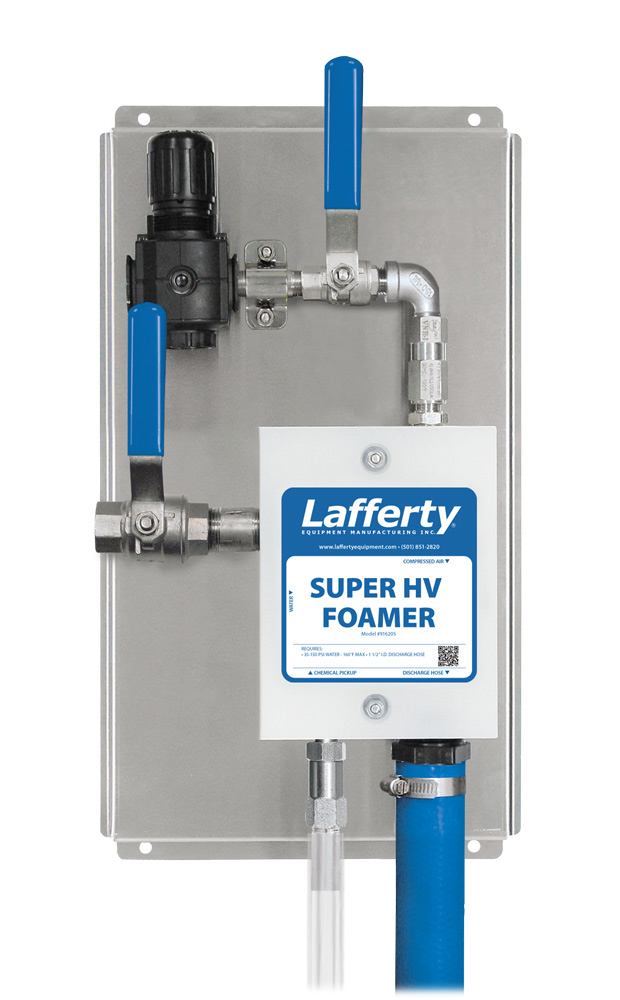

Super HV Foamer (Wall Mount / Compressed Air Required) – 30 to 150 PSI
|
|
|
Features:
- Super high volume output for foaming very large surface areas and reaching high ceilings
- Foam throw distance of up to 45 feet
- Covers up to 500 ft² (46.5 m²) in 40 seconds
Includes:
- Machined polypropylene foamer body
- Stainless steel mounting bracket
- Stainless steel ball valves
- Air regulator
- Color-coded metering tips for up to 6 dilution ratios
- Discharge hose and open flow, polypropylene foam nozzle
|
|
|
Model: |
Description: |
916205 |
Super HV Foamer Complete |
|
|
|
|
|
|

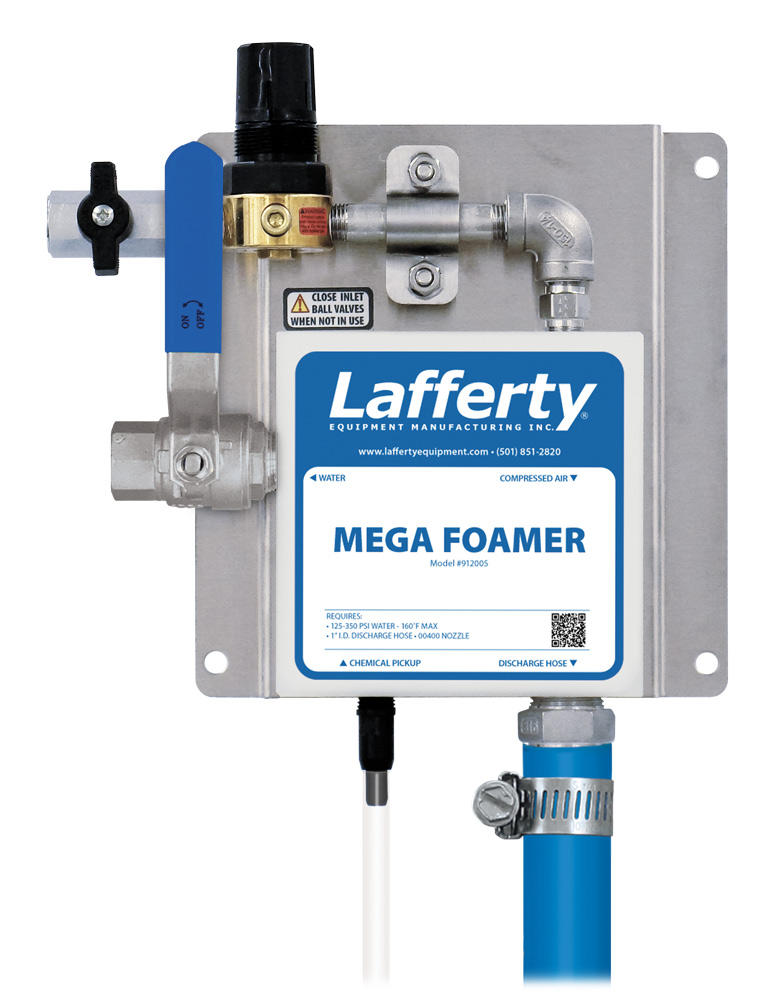

Mega Foamer (Wall Mount / Compressed Air Required) – 150 to 600 PSI
|
|
|
Features:
- Mega volume output for foaming very large surface areas and reaching high ceilings
- Foam throw distance of up to 50 feet
- Covers up to 500 ft² (46.5 m²) in 40 seconds
Includes:
- Machined polypropylene foamer body
- Stainless steel mounting bracket
- Stainless steel water inlet ball valve
- Air regulator
- Color-coded metering tips for up to 21 dilution ratios
- Discharge hose, polypropylene foam wand and 0° nozzle
|
|
|
Model: |
Description: |
912005 |
Mega Foamer Complete |
|
|
|
|
|
|

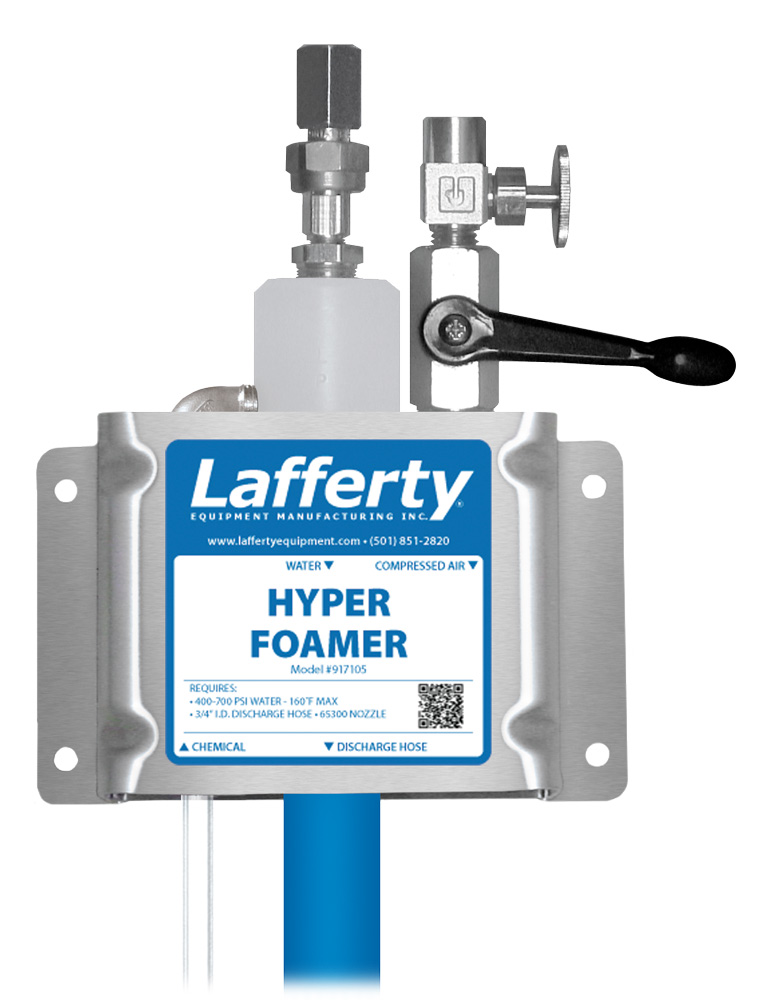

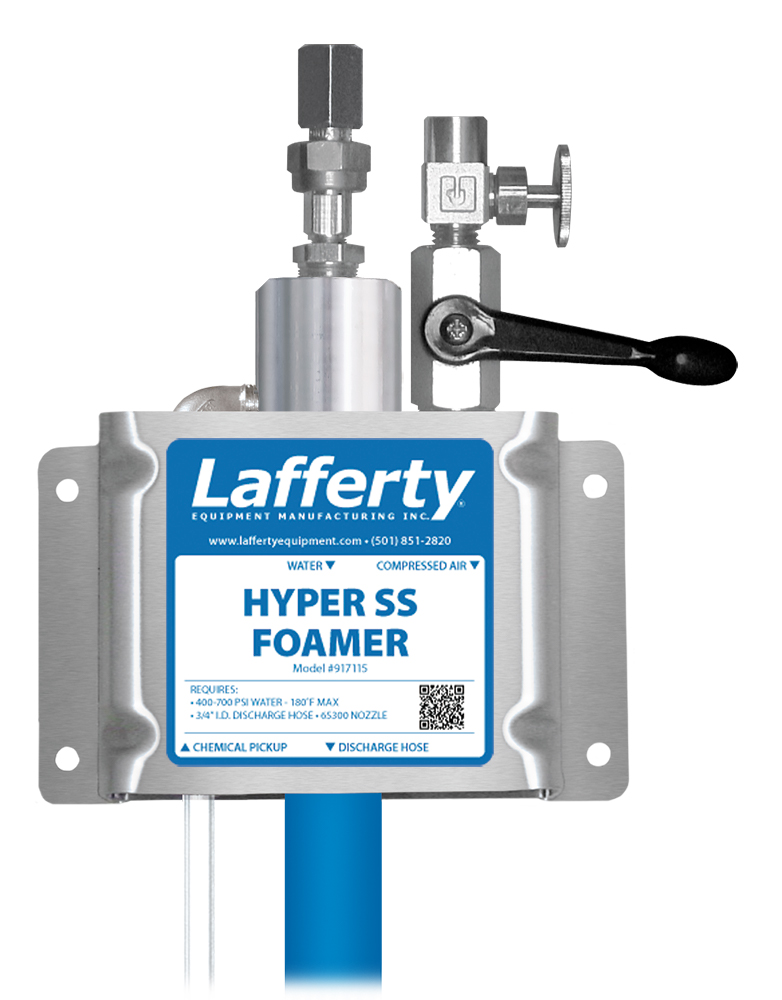

Hyper & Hyper SS Foamers (Wall Mount / Compressed Air Required) – 150 to 1000 PSI
|
|
|
Features:
- High volume output for foaming large surface areas quickly
- Foam throw distance of up to 21 feet
- Covers up to 500 ft² (46.5 m²) in 1½ minutes
Includes:
- Machined polypropylene or stainless steel foamer body
- Stainless steel mounting bracket
- Air needle valve
- Color-coded metering tips for up to 21 dilution ratios
- Discharge hose, polypropylene foam wand and fan nozzle
|
|
|
Model: |
Description: |
917105 |
Hyper Foamer Complete |
917115 |
Hyper SS Foamer Complete |
|
|
|
|
|
|

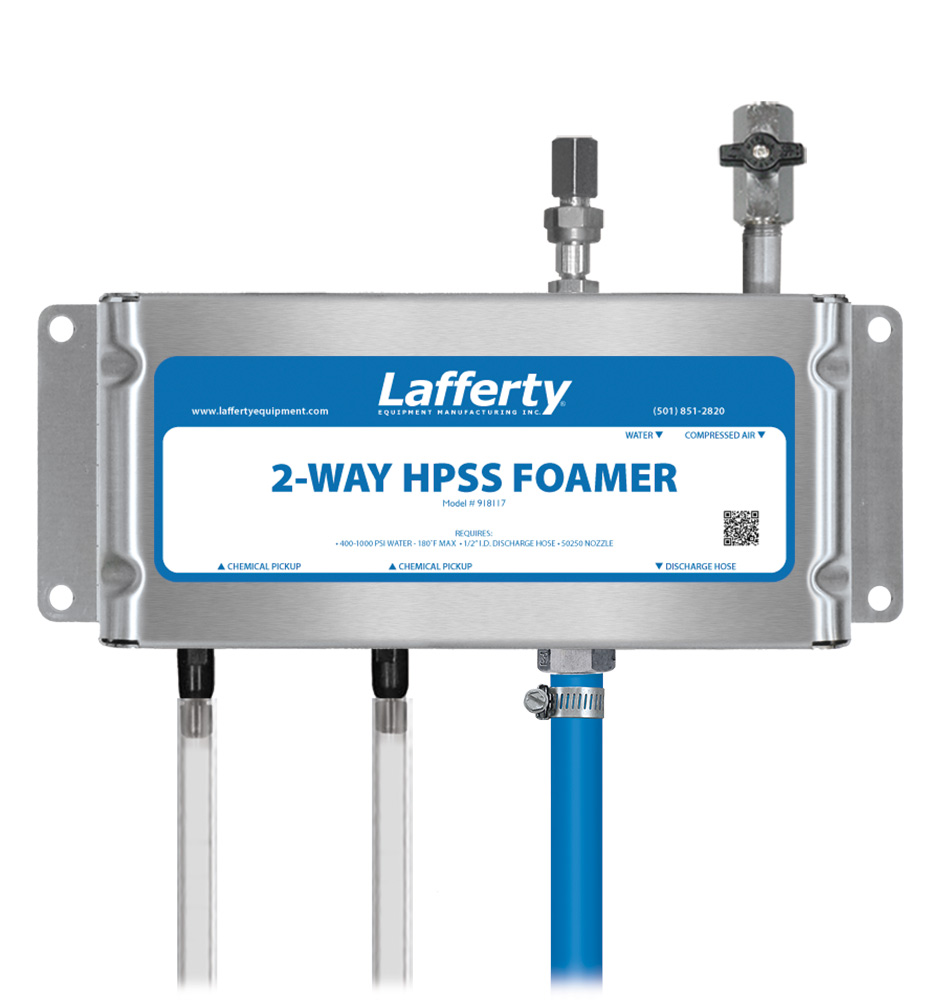

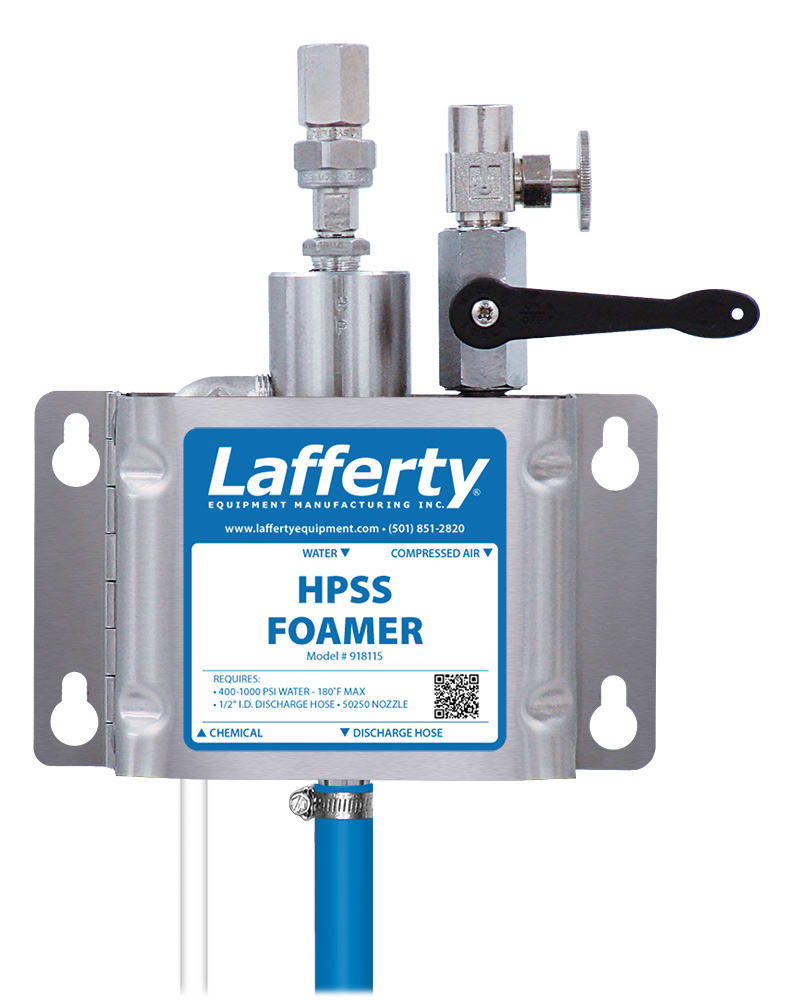

HP & HPSS Foamers (Wall Mount / Compressed Air Required) – 400 to 1000 PSI
|
|
|
|
Features:
- Medium volume foaming for all applications where high pressure water is available
- Foam throw distance of up to 14 feet with included fan nozzle (Optional 0° nozzle available for greater throw distance)
- Covers up to 500 ft² (46.5 m²) in 1½ minutes
Includes:
- Machined polypropylene or stainless steel foamer body
- Stainless steel mounting enclosure
- Color-coded metering tips for up to 21 dilution ratios
- Discharge hose, open flow foam wand and matching nozzle
|
|
|
Model: |
Description: |
918105 |
HP Foamer Complete |
918115 |
HPSS Foamer Complete |
918115DU |
HPSSDU Foamer Complete |
|
|
|
|
|
|
|
