Portable Durability in Cleaning

Tank Foamers

Lafferty Tank Foamers & Sprayers give you top of the line durability and portability. Both the internal and external models are simple to use and easy to maintain. Cleaning has never been so convenient!

These foamers and sprayers are powered by compressed air.

Internal Tank Foamers



Features:

  • Lafferty Tank Foamers are air-powered systems that produce and project high quality foam onto any surface
  • For use when water pressure is unreliable or unavailable
  • ASME pressure rated stainless steel tank
  • All stainless steel carts
  • Tanks hold RTU chemical solution
  • No air pump — no moving parts — virtually maintenance free
  • Lafferty Mixing Stations can be used to fill the tanks with RTU chemical solution.

Includes:

  • Machined stainless steel foamer body
  • Hinged, stainless steel foamer enclosure
  • All stainless steel car
  • ASME rated 316L stainless steel tank
  • Stainless steel pressure relief pop-off valve
  • Discharge hose, stainless steel ball valve, polypropylene foam wand and matching fan nozzle

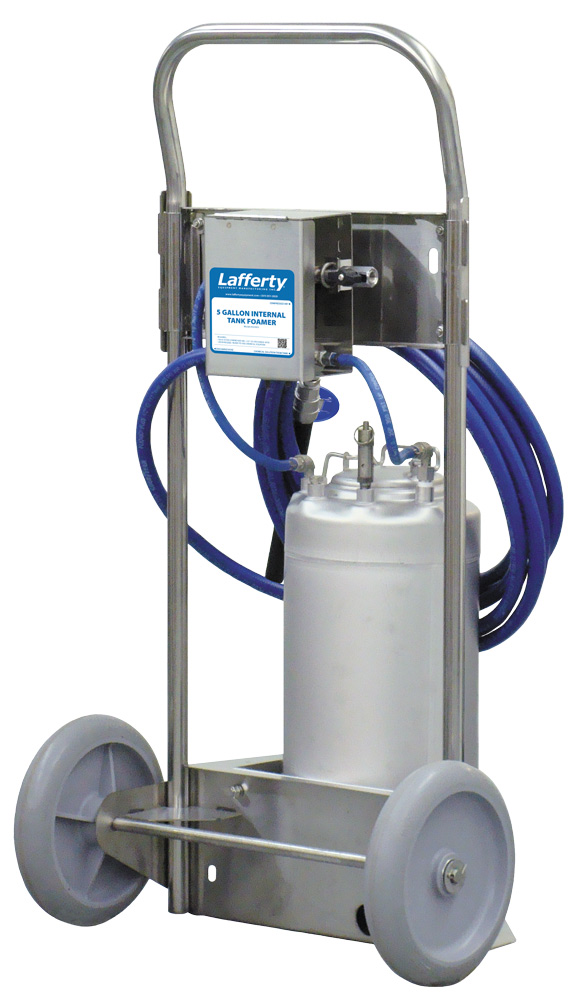

5, 16, & 37.4 Gallon Internal Tank Foamers Complete (Click for larger view)

Model:

Description:

925905

5 Gallon Internal Tank Foamer Complete

925916

16 Gallon Internal Tank Foamer Complete

925937

37.4 Gallon Internal Tank Foamer Complete


Instructions

Sales Sheet

Sales Sheet
Print

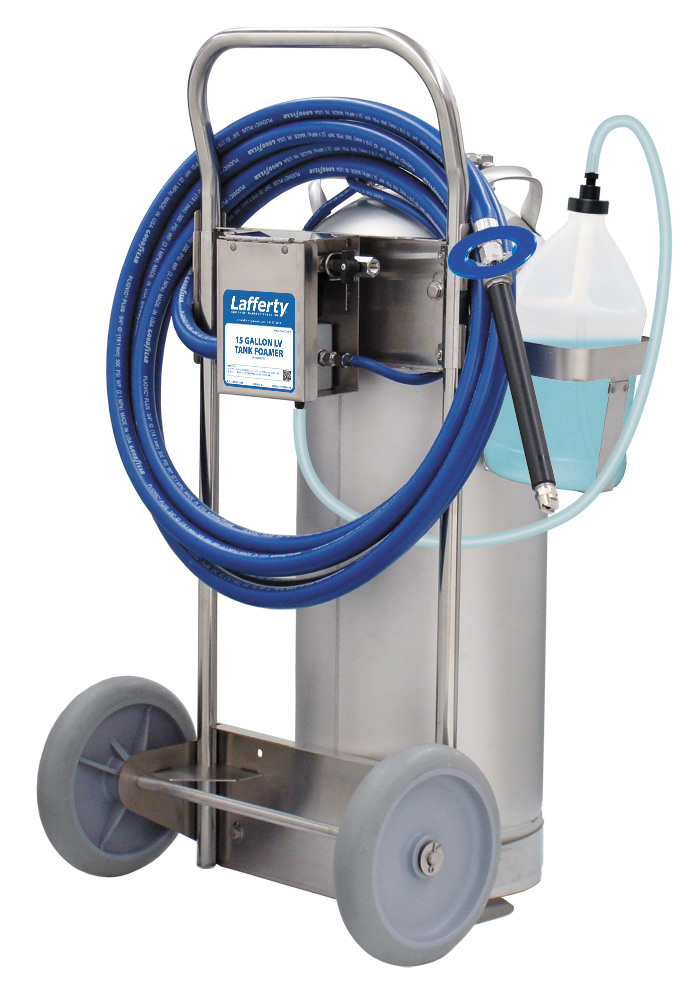

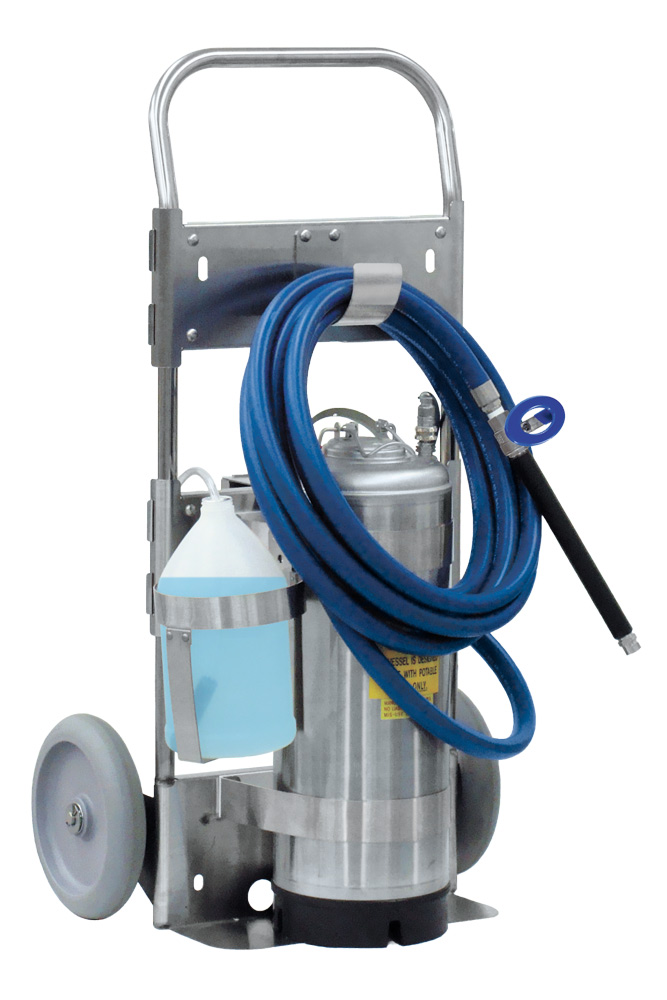

LV Tank Foamers



Features:

  • LV Tank Foamers are the most durable of all the portable foamers since only water is held in the NSDA rated stainless steel tank and the units have no moving parts.
  • LV Tank Foamers create and project a usable amount of foam onto any surface, with little waste.
  • Air pressure forces water through a venturi foamer, which draws and dilutes concentrated chemical.
  • Offered as Low Flow units

Includes:

  • Fan nozzle for quick coverage.
10 Gallon External Tank Foamer Complete

Model:

Description:

925505

5 Gallon LV Tank Foamer

925515

15 Gallon LV Tank Foamer


Instructions

Installation/Operation Instructions
Print

Tank Sprayers



Features:

  • Lafferty Tank Sprayers are air-powered systems that draw and project a spray of RTU chemical solution onto any surface.
  • For use where plumbed water is unreliable or unavailable
  • ASME pressure rated stainless steel tank
  • All stainless steel carts
  • Tanks hold RTU chemical solution
  • No air pump — no moving parts — virtually maintenance free
  • Two spray nozzles are included giving the option of spray volumes of 0.6 gpm and 1.0 gpm
  • Lafferty Mixing Stations or Level Master Systems can be used to fill the tanks with RTU chemical solution

Includes:

  • Stainless steel cover
  • All stainless steel cart
  • ASME rated 316 stainless steel tank
  • Stainless steel pressure relief pop-off valve
  • Discharge hose, stainless steel ball valve, stainless steel wand and two spray nozzles

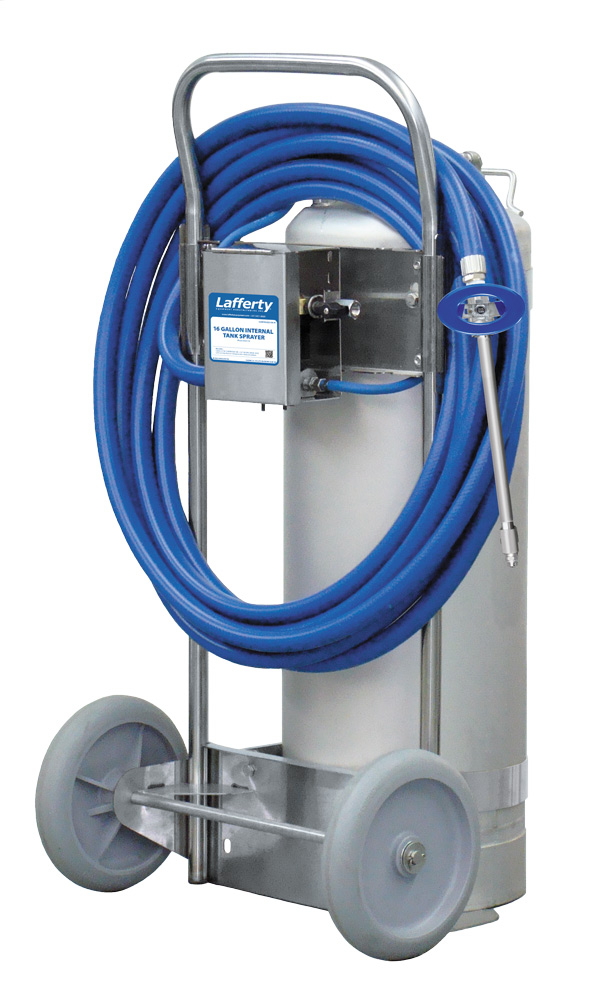

16 Gallon Internal Tank Sprayer Complete

MODEL #925716 SHOWN

Model:

Description:

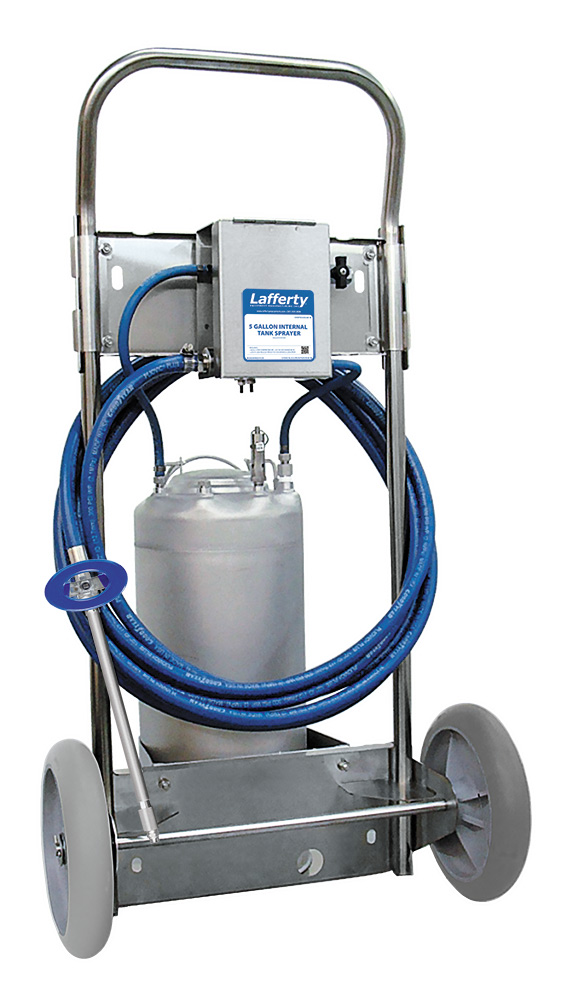

925705

5 Gallon Internal Tank Sprayer

925716

16 Gallon Internal Tank Sprayer


Print
