Lafferty Equipment Is Building Performance You Can Trust!

Lafferty Spray-Alls™

Go To Airless Foamers Product Page
Spray-Alls Sales Literature (PDF)
More Lafferty Products



Lafferty Spray-Alls™ are venturi-driven chemical applicators that use metering tips to provide a wide range of chemical dilutions. Many different styles are available to suit specific application requirements.

Spray-All QuickLinks:

View All |  Low Pressure |  High Pressure |  Uni-Body |  WR-1 & WR-2 |  Acid |  Asphalt Release

Low Pressure Spray-Alls (Wall Mount) – 35 to 125 PSI

Spray-All Wand Assembly (Complete Models)

Features:

  • Lafferty Spray-Alls accurately dilute chemical concentrates and produce sprays that range from a light to a flooding spray
  • Choice of four water flow rates

Includes:

  • Machined polypropylene injector body
  • Stainless steel mounting enclosure
  • Color-coded metering tips for up to 21 dilution ratios
  • Discharge hose, stainless steel ball valve, polypropylene wand and matching fan nozzle

Water Flow Rates @ 40 PSI:

  • W-10 (Light Spray) – 0.5 gpm
  • W-20 (Medium Spray) – 0.8 gpm
  • W-50 (Heavy Spray) – 2.3 gpm
  • W-100 (Flooding Spray) – 4.0 gpm

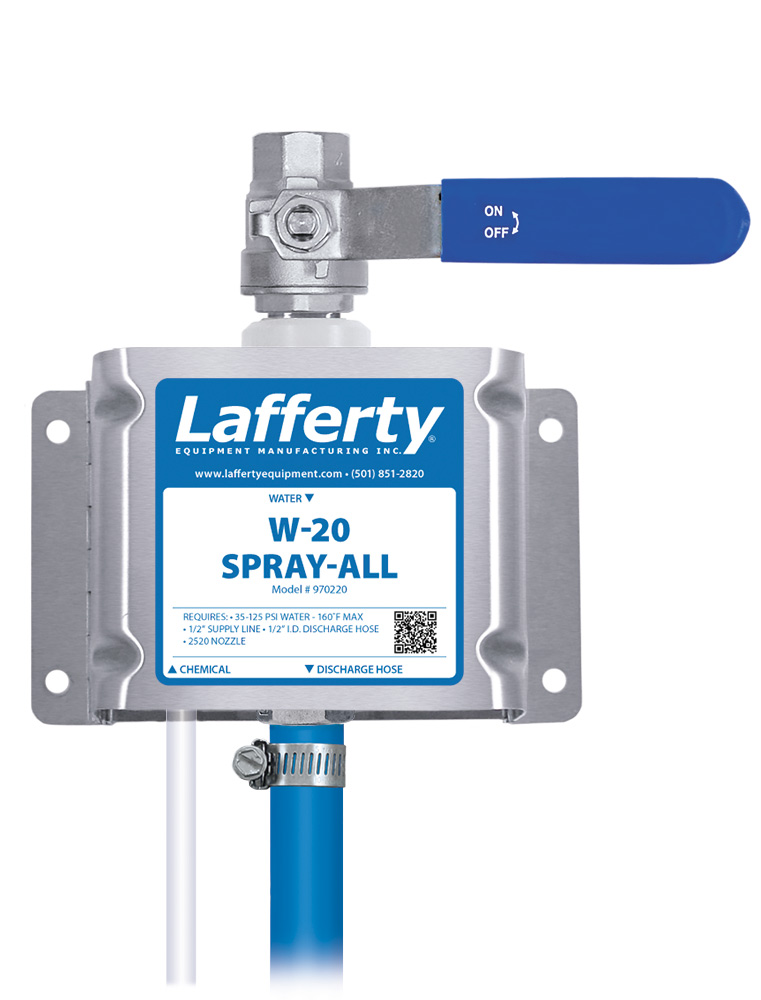

Low Pressure Spray-All (Click for larger view.)

Model:

Description:

970210

W-10 Spray-All Complete

970220

W-20 Spray-All Complete

970250

W-50 Spray-All Complete

970270

W-100 Spray-All Complete


Instructions

Sales Sheet

Installation/Operation Instructions Sales Sheet
Print

High Pressure Spray-Alls (Wall Mount) – 400 to 1000 PSI


Benefits:

  • High pressure application of any chemical to any surface
  • Two models are available, each with a different water flow rate

Features:

  • Stainless steel base with hinged cover
  • Stainless steel injector body
  • 20 color-coded metering tips
  • 50’ hose assembly with a trigger gun, 18” stainless steel wand and fan nozzle

Water Flow Rates @ 700 PSI:

  • 1.6 gpm – W-10SS
  • 4.0 gpm – W-20SS

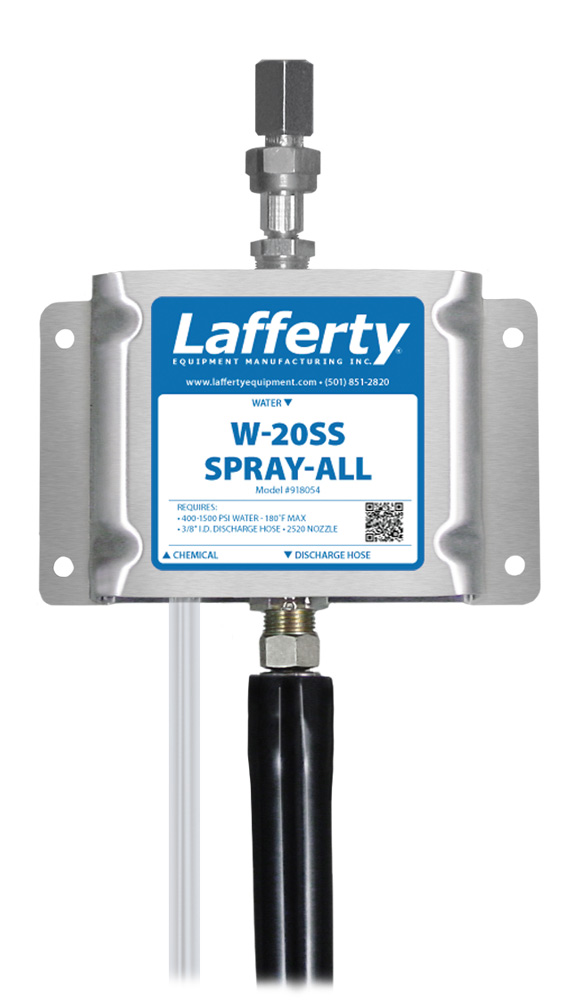

High Pressure Spray-Alls (Click for larger view.)

Model:

Description:

918050

W-10SS Spray-All Complete

918054

W-20SS Spray-All Complete


Instructions

Sales Sheet

Installation/Operation Instructions Sales Sheet
Print

Uni-Body Spray-Alls (Wall Mount) – 35 to 125 PSI

Spray-All Wand Assembly (Complete Models)

Features:

  • Lafferty Uni-Body Spray-Alls accurately dilute chemical concentrates and produce sprays that range from a light to a flooding spray.
  • Choice of four water flow rates

Includes:

  • Machined polypropylene injector body
  • Compact Uni-Body design
  • Color-coded metering tips for up to 21 dilution ratios
  • Discharge hose, ball valve, polypropylene wand and matching fan nozzle

Water Flow Rates @ 40 PSI:

  • W-10 (Light Spray) – 0.5 gpm
  • W-20 (Medium Spray) – 0.8 gpm
  • W-50 (Heavy Spray) – 2.3 gpm
  • W-100 (Flooding Spray) – 4.0 gpm
Uni-Body Spray-All (Click for larger view.)

Model:

Description:

975010

Uni-Body W-10 Spray-All Complete

975020

Uni-Body W-20 Spray-All Complete

975050

Uni-Body W-50 Spray-All Complete

975070

Uni-Body W-100 Spray-All Complete


Instructions

Brochure

Installation/Operation Instructions Brochure
Print

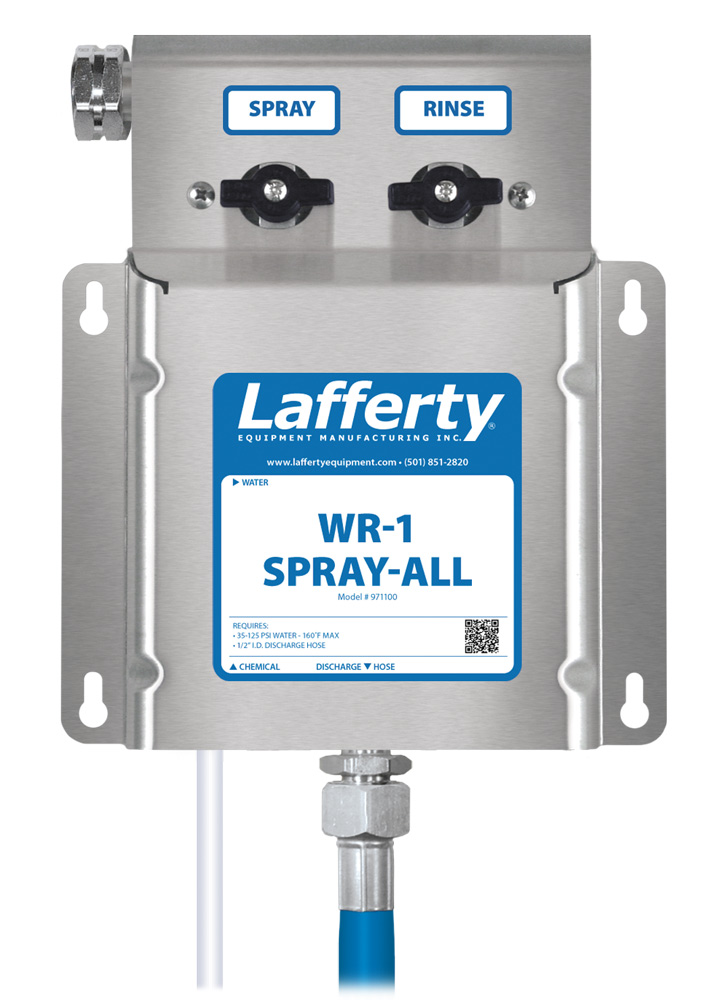

Uni-Body WR-1 & WR-2 Spray-Alls – 35 to 125 PSI



Uni-Body WR-1 Benefits & Features:

  • Lafferty Uni-Body WR-1 & WR-2 Spray-All unites can be matche with any one of three applicator kits to produce convenient combination systems.
  • For many uses, including in small to medium sized food service facilities.
  • Combination systmes can be configured to apply one (WR-1) or two (WR-2) chemicals as spray or airless foam and rinse.
  • The choice of applicator and hose kit will determine the functionality of the system.

Applicator Features:

Ball Valve & Spray Wand:

  • Durable ball valve for positive shutoff of discharge
  • Machined polypropylene wand
  • Includes a fan nozzle for wide spray pattern and quicker coverage

Garden Hose Gun, QD Set, & A-50 Airless Foam Wand:

  • Connects to any standard garden hose
  • Quickly change from foam to spray with quick disconnect (QD) plug and socket set

Applicator & Hose Kit Options

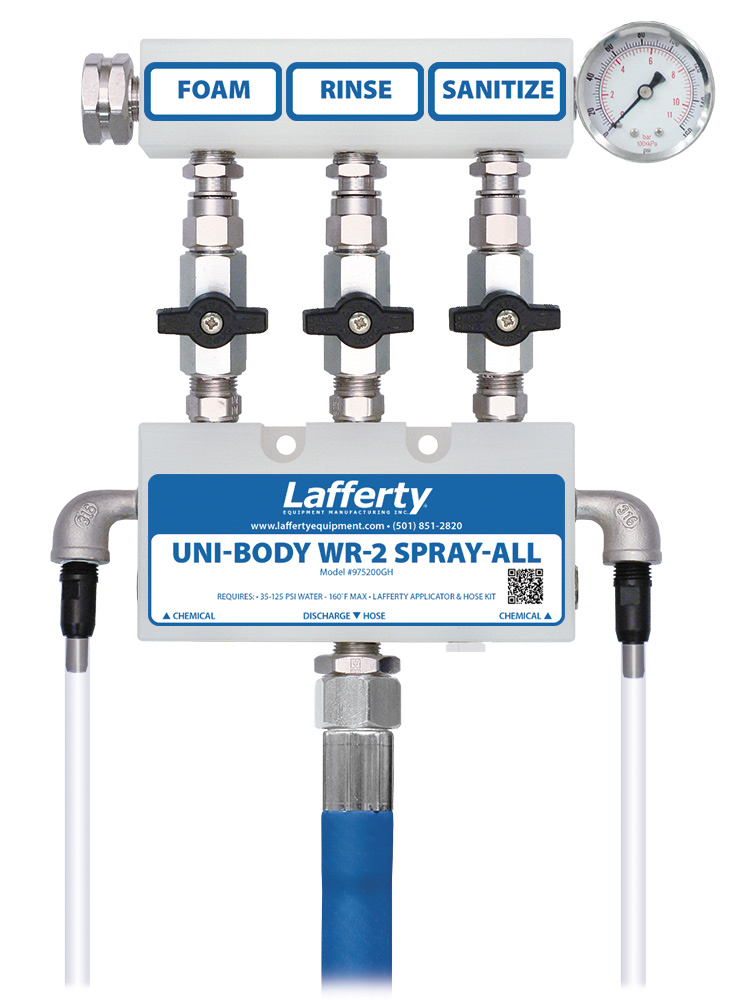

Uni-Body WR-1 & WR-2 Spray-All with your choice of two applicators

Model:

Description:

975100

Uni-Body WR-1 Spray-All

975200

Uni-Body WR-2 Spray-All


Instructions

Brochure

Brochure
Print

WR-2 Spray-All (Wall Mount) – 35 to 125 PSI

Lafferty WR-2 Spray-Alls are great for supermarkets and delis. Apply two chemical solutions as airless foam and/or spray and rinse from one unit.

For foaming, select a complete model with garden hose gun and quick disconnect airless foam wand or select a model with the unique spray-and-foam SmartWand™.

Benefits:

  • Apply airless foam, rinse, then sanitize – from the same unit
  • Durable construction means longer life

Features:

  • Stainless steel base and cover
  • Machined polypropylene injector body
  • 20 color-coded metering tips
  • "Complete" models include a 50' discharge hose assembly with accessories as noted in description

Applicator Features:

  • Connects to any standard garden hose
  • Quickly change from foam to spray with quick disconnect (QD) plug and socket set
  • A-50 Airless Foam Wand machined from solid polypropylene
WR-2 Spray-All with airless foamer and garden hose gun. (Click for larger view of unit.)
WR-2 Spray-All with airless foamer and garden hose gun. (Click for larger view of unit.)

Model:

Description:

971210

WR-2 Spray-All W/ Garden Hose Gun, QD Set, & A-50 Airless Foam Wand Complete


Instructions

Installation/Operation Instructions

Print

Acid Spray-Alls (Wall Mount) – 40 to 125 PSI

Acid Spray-All Wand Assembly (Complete Models)

Features:

  • Lafferty Acid Spray-Alls are water-driven venturi systems designed specifically to accurately dilute harsh acidic chemical concentrates to required ratios to fill containers or to project a spray or high quality foam onto any surface.
  • Lafferty Acid Spray-Alls produce a moderate spray volume and project a fan pattern onto surfaces. These models provide up to a 3.2:1 dilution ratio.
  • Venturi action

Includes:

  • Polypropylene wall mounting bracket
  • Machined polypropylene body
  • Color-coded metering tips for up to 21 dilution ratios
  • Discharge hose assembly with PVC ball valve, 28 inch polypropylene wand, and protected, matching PVDF nozzle or polypropylene airless foam wand.

Options:

  • Stainless Steel Hose Racks and Jug Racks available.

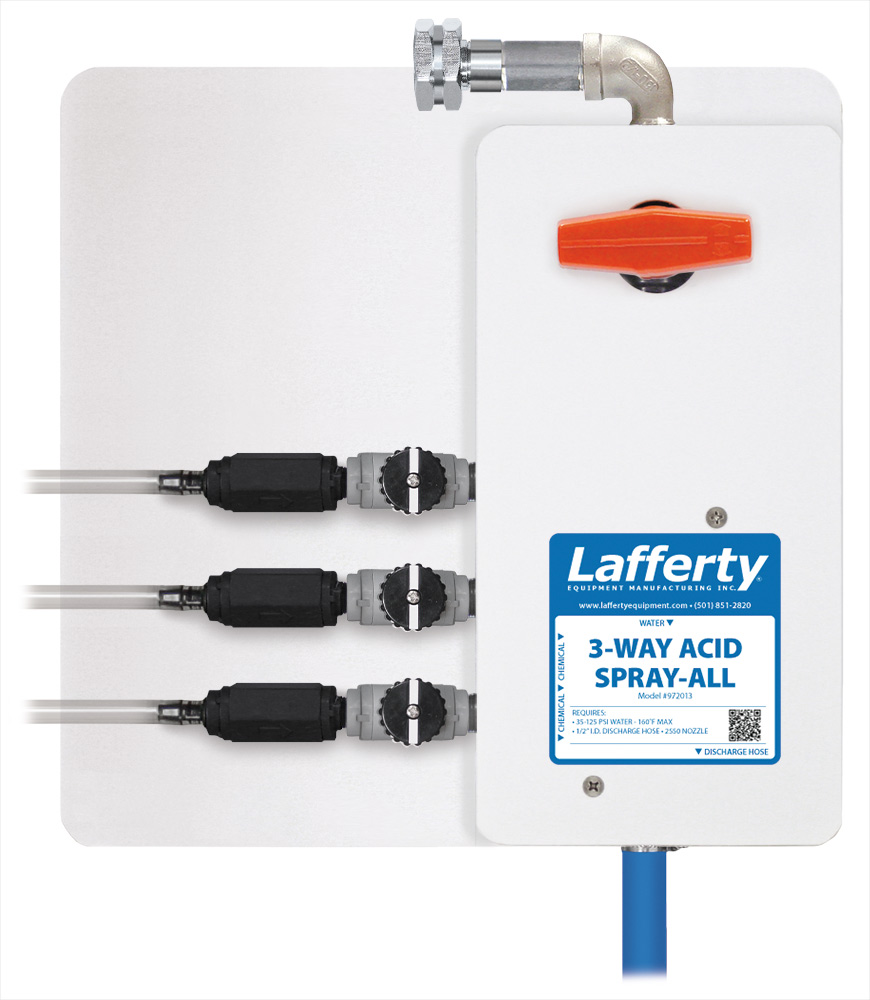

1-Way Acid Spray-All Complete (Click for larger view.) 2-Way Acid Spray-All Complete (Click for larger view.) 3-Way Acid Spray-All Complete (Click for larger view.)

Model:

Description:

972011

1-Way Acid Spray-All Complete

972012

2-Way Acid Spray-All Complete

972013

3-Way Acid Spray-All Complete

972125

Acid Drum Bung Mount W-25HC Spray-All Complete


Instructions

Wall Mount

Drum Mount

Sales Sheet

Wall Mount Installation/Operation Instructions Drum Mount Installation/Operation Instructions Sales Sheet
Print

Manually Operated Uni-Body Asphalt Release Spray-Alls (Wall Mount) – 35 to 125 PSI

Features:

  • Spray pattern allows quick, complete coverage of the truck bed
  • Draws asphalt release agent directly from original shipping containers
  • Choice of two water flow rates

Includes:

  • Machined polypropylene injector
  • Compact Uni-Body design
  • Manual on/off ball valve
  • Color-coded metering tips for up to 21 dilution ratios

Water Flow Rates @ 40 PSI:

  • W-25 – 1.3 gpm
  • W-50 – 2.1 gpm

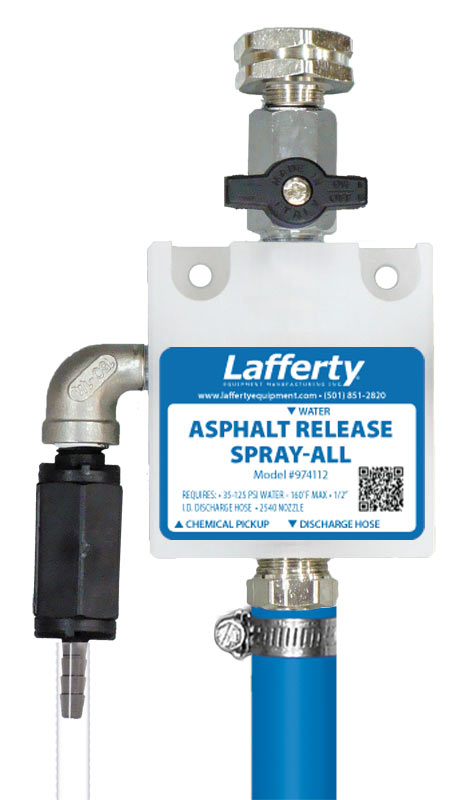

Asphalt Release Spray-All (Click for larger view.)

Model:

Description:

974112

W-25 Uni-Body Asphalt Release Spray-All Complete

974113

W-50 Uni-Body Asphalt Release Spray-All Complete


Instructions

Brochure

Installation/Operation Instructions Brochure
Print

Timed Uni-Body Asphalt Release Sprayer Complete
with Delay & Remote (Wall Mount) – 35 to 125 PSI

Features:

  • Spray pattern allows quick, complete coverage of the truck bed
  • Draws asphalt release agent directly from original shipping containers
  • Choice of two water flow rates
  • Timed model precisely controls chemical use — A Run Timer controls the length of application. A Delay Timer keeps the driver from immediately restarting the system, preventing costly over-application

Includes:

  • Machined polypropylene injector
  • Compact Uni-Body design
  • Manual on/off ball valve
  • Color-coded metering tips for up to 21 dilution ratios
Timed Uni-Body Asphalt Release Sprayer with Delay and Remote (Click for larger view.)

Model:

Description:

977002

Timed W-25 Uni-Body AR Spray-All Complete


Instructions

Brochure

Installation/Operation Instructions Brochure
Print
