Chemical Applicators for Central Cleaning / Sanitizing Systems
|
|
|
|
|
|
|
|
|
Lafferty Pump Fed Foamers and Hose Drop Stations are chemical applicators designed for use with central cleaning / sanitizing systems. Diluted chemical is pumped through user-supplied, chemical-resistant piping to multiple foamers and/or hose drop stations.
|
|
|
|
|
|
|
|
Pump Fed Systems Save Time and Money:
- Provide consistent solution pressure
- Provide consistent chemical dilution ratios
- Permit bulk purchasing of chemicals
- Keep concentrated chemicals in one location
- Enhance chemical handling safety
- Save time & labor costs replenishing chemicals
- Prevent unauthorized access
- Prevent chemical waste
The number of foamers or hose drop stations for a system is limited only by the ability of the system to provide solution pressure between 35 and 150 PSI at each unit.
|
|
|
|
|
|
|
|
|
|
|
|
|
Pump Fed QuickLinks:
Pump Fed Foamer |
SS Pump Fed Foamer |
HV Pump Fed Foamer |
Pump Fed HDS
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pump Fed Foamer (Wall Mount / Compressed Air Required)
– 40 to 100 PSI Solution Pressure Per Unit
|
|
|
Features:
- For use with RTU chemical solution supplied by a water-driven proportional dispensing system or from an air-powered Lafferty Central System or Mini Central System
- Medium volume output for all foaming applications
- Foam throw distance of up to 12 ft. @ 40 psi
- Covers up to 500 ft² (46.5m²) in 1½ minutes
- Stainless steel model available
Includes:
- Machined polypropylene or stainless steel body
- Stainless steel mounting enclosure
- Stainless steel ball valves
- Air regulator
- Discharge hose assembly with ball valve, polypropylene wand and matching nozzle
|
|
|
Model: |
Description: |
920100 |
Unit – Pump Fed Foamer |
920105 |
Pump Fed Foamer Complete |
|
|
|
|
|
|
Stainless Steel (SS) Pump Fed Foamer (Wall Mount / Compressed Air Required)
– 40 to 100 PSI Solution Pressure Per Unit
|
|
|
|
Features:
- For use with RTU chemical solution supplied by a water-driven proportional dispensing system or from an air-powered Lafferty Central System or Mini Central System
- Medium volume output for all foaming applications
- Foam throw distance of up to 12 ft. @ 40 psi
- Covers up to 500 ft² (46.5m²) in 1½ minutes
Includes:
- Machined polypropylene or stainless steel body
- Stainless steel mounting enclosure
- Stainless steel ball valves
- Air regulator
- Discharge hose assembly with ball valve, polypropylene wand and matching nozzle
|
|
|
Model: |
Description: |
920110 |
Unit – SS Pump Fed Foamer |
920115 |
Pump Fed SS Foamer Complete |
|
|
|
|
|
|
Pump Fed HV Foamer (Wall Mount / Compressed Air Required)
– 40 to 100 PSI Solution Pressure Per Unit
|
|
|
Features:
- For use with RTU chemical solution supplied by a water-driven proportional dispensing system or from an air-powered Lafferty Central System or Mini Central System
- High volume output for foaming large surface areas
- Foam throw distance of up to 27 feet @ 40 psi
- Covers up to 500 ft2 (46.45 m2) in 1 minute
Includes:
- Machined polypropylene foamer body
- Stainless steel mounting bracket
- Stainless steel ball valves
- Air regulator
- Discharge hose assembly with ball valve, polypropylene foam wand and 0° nozzle (Optional fan nozzle – 50400)
|
|
|
Model: |
Description: |
919300 |
Unit – Pump Fed HV Foamer |
919305 |
Pump Fed HV Foamer Complete |
|
|
|
|
|
|
Pump Fed Sanitize / Foam Hose Drop Stations
(Wall Mount / Compressed Air Required) – 40 to 125 PSI Solution Pressure Per Unit
|
|
|
Features:
- For use with RTU chemical solution supplied by a water-driven proportional dispensing system or from an air-powered Lafferty Central System or Mini Central System
- Lafferty Sanitize / Foam Hose Drop Stations are convenient combination systems that will apply one chemical as foam and a second chemical as a sanitizing spray.
- The Pump Fed Foamers provide medium volume output for all foaming applications.
- Color-coded hoses
Includes:
- Machined polypropylene foamer and sanitizer bodies
- Stainless steel mounting enclosure
- Stainless steel ball valves
- Air regulator
- Two discharge hose assemblies:
- Sanitize: Red hose with ball valve and polypropylene wand and matching nozzle
- Foam: Blue hose with ball valve and polypropylene wand and matching nozzle
|
|
|
Model: |
Description: |
920120 |
Dual Inlet Pump Fed Sanitize / Foam HDS Complete |
920210 |
Dual Inlet Pump Fed Foam / Foam HDS Complete |
|
|
|
|
|
|

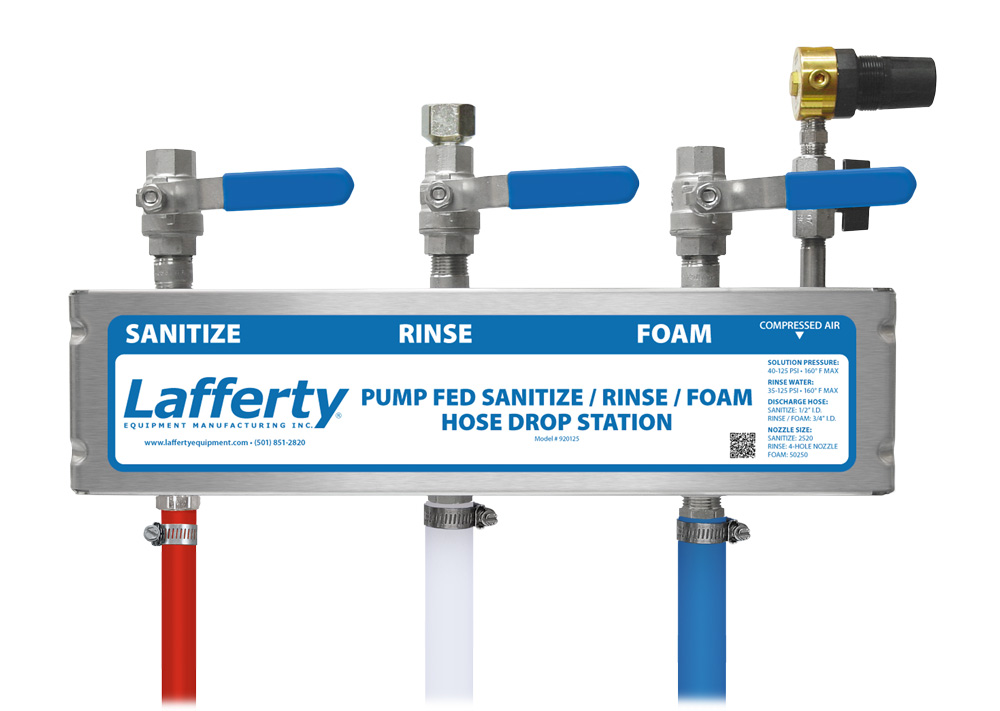

Pump Fed Sanitize / Rinse / Foam Hose Drop Stations
(Wall Mount / Compressed Air Required) – 40 to 125 PSI Solution Pressure Per Unit
|
|
|
|
Features:
- For use with RTU chemical solution supplied by a water-driven proportional dispensing system or from an air-powered Lafferty Central System or Mini Central System
- Lafferty Sanitize/Rinse/Foam Hose Drop Stations are convenient combination systems that will apply one chemical as foam, rinse, and apply a second chemical as a sanitizing spray.
- The Pump Fed Foamers provide medium volume output for all foaming applications.
- Separate plumbing connections for each function
- Color-coded hoses
Includes:
- Machined polypropylene sanitizer and foamer bodies
- Stainless steel mounting enclosure
- Stainless steel ball valves
- Air regulator
- Three discharge hose assemblies:
- Sanitize: Red hose with ball valve, polypropylene wand and matching nozzle
- Rinse: White hose with ball valve and Lafferty's 4-hole rinse nozzle
- Foam: Blue hose with ball valve and polypropylene wand and matching nozzle
|
|
|
Model: |
Description: |
920125 |
Triple Inlet Pump Fed Sanitize / Rinse / Foam HDS Complete |
920125QD |
Triple Inlet Pump Fed Sanitize / Rinse / Foam HDS Complete W/ Quick Disconnects |
|
|
|
|
|
|
|
