More Lafferty Products



Portable Cleaning Solutions

Lafferty Portable Foamers let you apply foam in areas that are beyond the reach of a wall mount foamer's discharge hose - as in the middle of a large room - or where wall mounting may be impractical or portability is more desirable, as in livestock farming or for outside uses. These foamers function and perform the same as their wall mount models.

Conveyor Mate™ Foamer (Compressed Air Required) – 30 to 250 PSI

The Lafferty Conveyor Mate™ system is a fully adjustable portable venturi foamer designed to foam clean both the top and underside of conveyor belts, and is powered by plant water pressures from
30-250 psi and compressed air.

The Conveyor Mate™ features the ability to independently control the water and air flow rates and the chemical dilution ratio, allowing it to be adjusted for foaming belt widths of up to 4’. Its arms and nozzle angles are adjustable solving differing heights and clearance issues.

Features:

  • Adjustable application geometry
  • Vertical height
  • Horizontal reach
  • Angle of application
  • Adjustable foam pattern for a wide range of belt widths
  • Increasing water flow produces a wider foam pattern
  • Adjusting air and chemical produces desired foam consistency
  • All wetted parts are chemically resistant
  • Portable all stainless steel cart
  • 20 Gallon chemical tank allows extended operating time

Principles of Operation:

The heart of the Conveyor Mate™ is a Lafferty adjustable foamer which features needle valve control over water flow, air flow and chemical injection. This capability allows the user to determine the desired width of the foam discharge pattern by adjusting the water flow rate and then to balance the system via fine control of the air and chemical ratio. The foamer can be set to achieve the desired foaming consistency on conveyor belts up to 4’ wide.

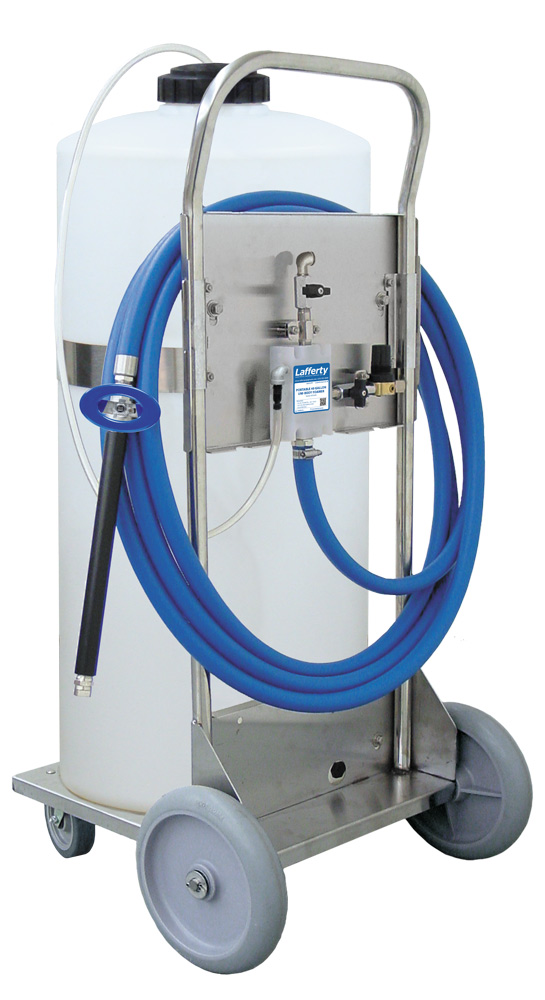

Conveyor Mate™ Foamer (Click for larger view.)

Model:

Description:

912820

Portable 20 Gallon Conveyor Mate Foamer

Instructions

Sales Sheet

Installation/Operation Instructions Sales Sheet

Portable Uni-Body Foamers (Compressed Air Required) – 35 to 125 PSI Water

Uni-Body Foamer Wand Assembly

Benefits:

  • Top performer
  • Great for hard to foam chemicals or when water pressure is marginal
  • Ideal for jobs where speed of application is important
  • Compressed air assisted for rich, clinging foam

Features:

  • Machined polypropylene Uni-Body
  • Chemical check valve
  • Air check valve
  • Air regulator
  • 20 color-coded metering tips
  • Includes a 40’ discharge hose assembly with stainless steel ball valve, 14” polypropylene wand and nozzle

5-gallon chemical pail not included.

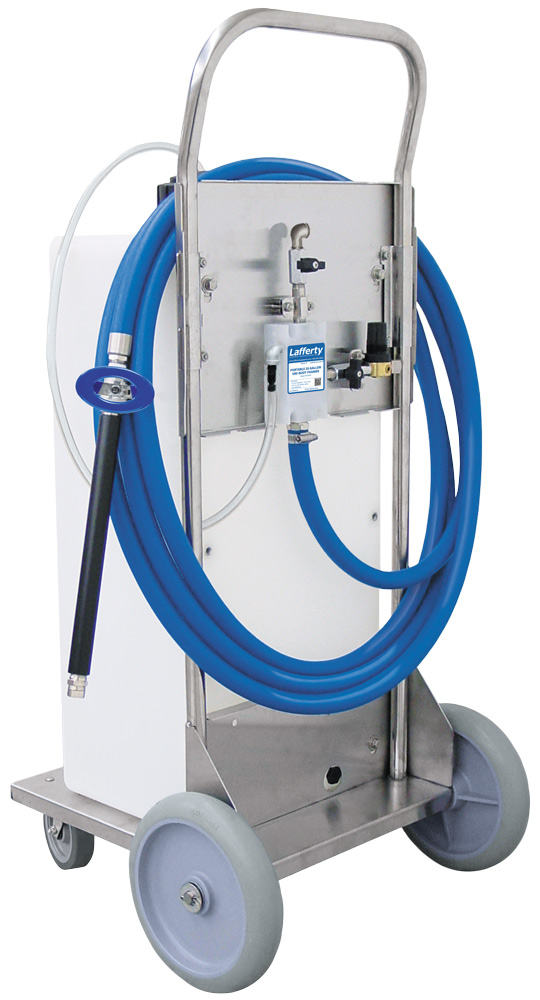

Portable Uni-Body 5 Gallon Foamer (Click for larger view.)

MODEL #914805 SHOWN

Model:

Description:

914805

Portable 5 Gallon Uni-Body Foamer

914818

Portable 2-Wheel 20 Gallon Uni-Body Foamer

914820

Portable 20 Gallon Uni-Body Foamer

914840

Portable 40 Gallon Uni-Body Foamer

914845

Portable 45 Gallon Uni-Body Foamer

Instructions

Brochure

Installation/Operation Instructions Brochure

Portable HV Foamers (Compressed Air Required) – 35 to 125 PSI Water

HV Foamer Wand Assembly

Benefits:

  • High volume output
  • Long distance foam throw
  • Uses: foam large to very large surfaces
  • Cover up to 500 sqft (46.45 sqm) in 1 minute

Features:

  • Machined polypropylene foamer body
  • Chemical check valve
  • Air check valve
  • Air regulator
  • 20 color-coded metering tips
  • Includes a 40’ discharge hose assembly with stainless steel ball valve, 14” polypropylene wand and nozzle

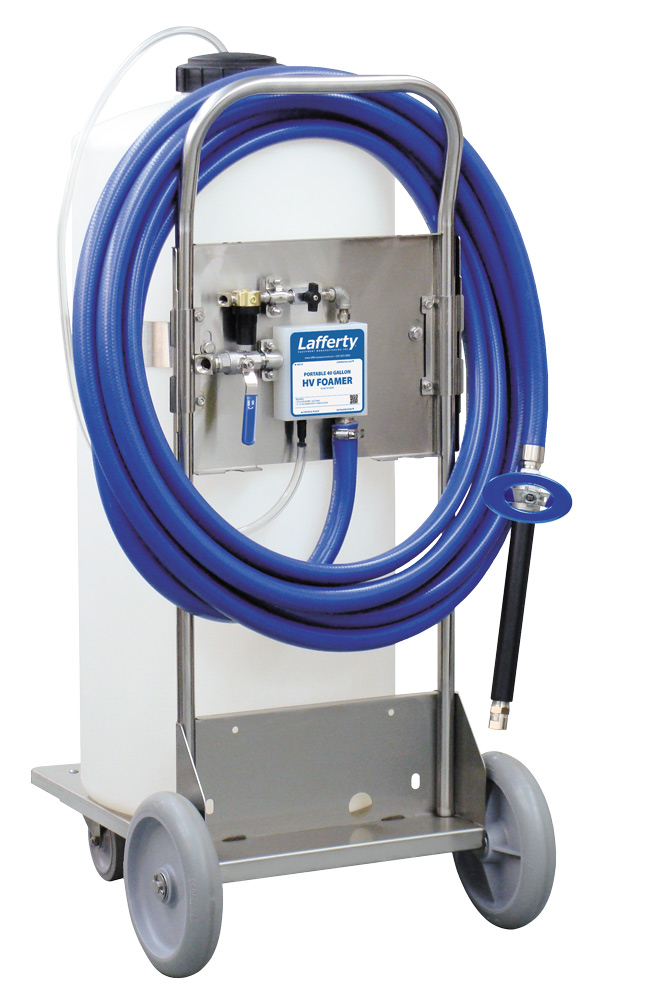

Portable 45 Gallon HV Foamer (Click for larger view.)

MODEL #916845 SHOWN

Model:

Description:

916818

Portable 2-Wheel 20 Gallon HV Foamer

916820

Portable 20 Gallon HV Foamer

916840

Portable 40 Gallon HV Foamer

916840HC

Portable 40 Gallon HVHC Foamer

916845

Portable 45 Gallon HV Foamer

Instructions

Brochure

Installation/Operation Instructions Brochure
