Lafferty Chemical Mixing Stations™ (Chemical Proportioners)

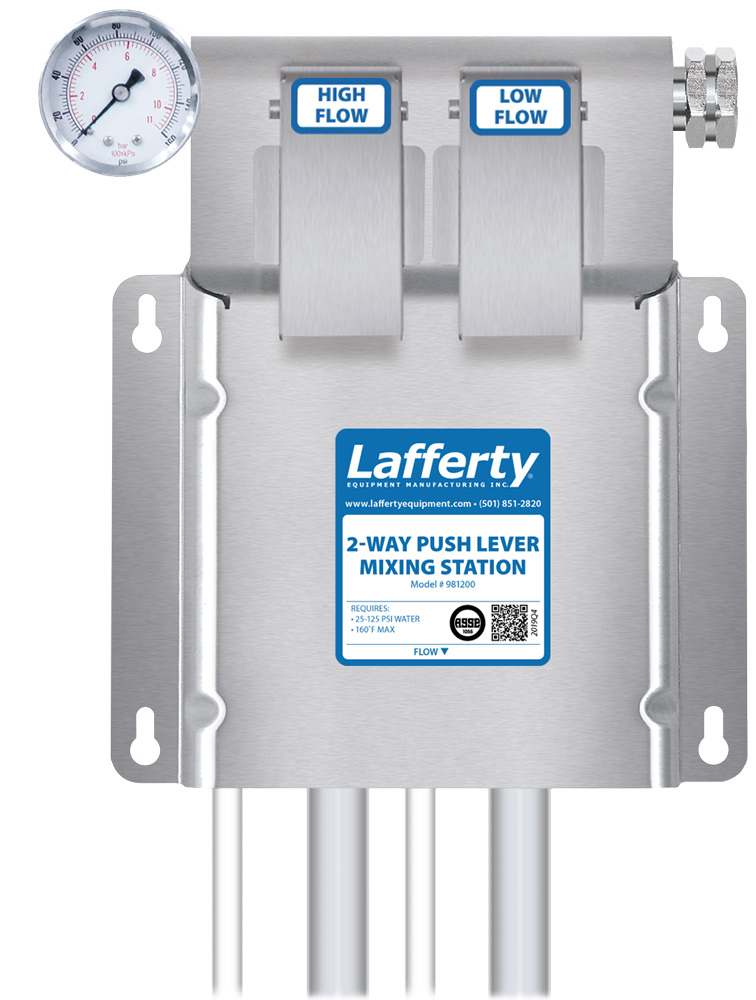

Push Lever Mixing Stations (Wall Mount) – 35 to 100 PSI

1-Way, 2-Way, 3-Way, & 4-Way Models

Features:

• Push Lever Mixing Stations require the user to push and hold the lever to dispense, preventing accidental overfilling of containers.
• Choice of left or right side garden hose water inlet
• All Mixing Stations can be plumbed in series
• Choice of three water flow rates for filling small to large containers

Includes:

• Stainless steel mounting enclosure
• Integrated backflow preventers
• Polypropylene injector bodies
• Color-coded metering tips for up to 21 dilution ratios

Water Flow Rates @ 40 PSI:

• Bottle Fill (BF) - 0.8 gpm
• Low Flow (LF) – 1.8 gpm
• High Flow (HF) – 4.0 gpm

Ball Valve Mixing Stations (Wall & Drum Mount) – 35 to 100 PSI

1-Way, 2-Way, 3-Way, & 4-Way Models

• Ball Valve Mixing Stations provide hands-free dispensing of chemical solutions.
• Choice of left or right side garden hose water inlet
• All Mixing Stations can be plumbed in series
• Choice of three water flow rates for filling small to large containers

Includes:

• Stainless steel mounting enclosure
• Integrated backflow preventers
• Polypropylene injector bodies
• Color-coded metering tips for up to 21 dilution ratios

Water Flow Rates @ 40 PSI:

• Bottle Fill (BF) - 0.8 gpm
• Low Flow (LF) – 1.8 gpm
• High Flow (HF) – 4.0 gpm

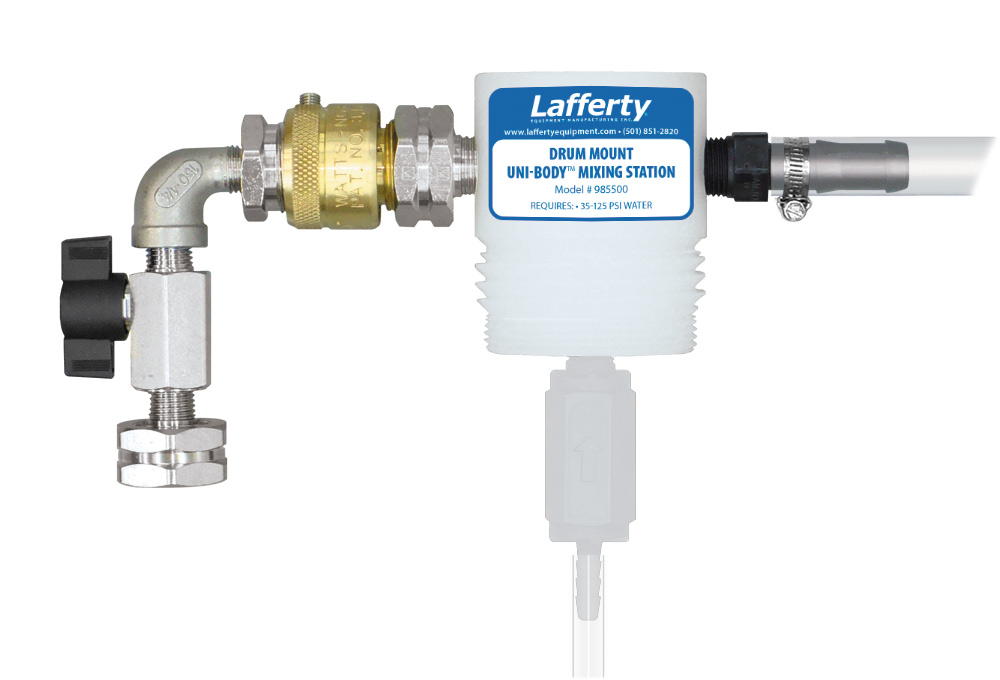

Drum Mount Model

• Ball Valve Mixing Stations provide hands-free dispensing of chemical solutions.

Includes:

• Machined polypropylene injector body
• Integrated backflow preventer
• Color-coded metering tips for up to 21 dilution ratios

Water Flow Rates @ 40 PSI:

• High Flow (HF) – 4.0 gpm

High Volume Mixing Stations (Wall Mount) – 35 to 125 PSI

Features:

• The Lafferty High Volume Mixing Stations quickly fill large containers or equipment tanks with ready-to-use (RTU) chemical solution, minimizing fill time.

Includes:

• Machined polypropylene injector body
• Stainless steel mounting enclosure
• Stainless steel ball valve
• Color-coded metering tips for up to 21 dilution ratios
• Discharge hose

• 9.8 gpm

High Concentrate Mixing & Filling Stations – 40 to 80 PSI

Features:

• Lafferty's High Concentrate Mixing Stations and Filling Stations will deliver a true 1:1 dilution ratio with water-thin chemical. (Included metering plugs provide 2:1 and 3:1 ratios.) Chemical viscosity will affect dilution ratios.
• Mixing Stations are offered with a choice of five water flow rates.
• Filling Stations include a trigger gun and are offered with a choice of two water flow rates. Also offered are 2-Way units for alternating between different ratios of the same chemical or between two compatible chemicals.

Includes:

• Machined polypropylene injector body
• Stainless steel mounting enclosure
• Stainless steel ball valve
• Metering plugs for a 2:1 or 3:1 ratio
• Discharge hose
• Polypropylene discharge trigger gun (Filling Station models)

Water Flow Rates @ 40 PSI:

• 105HC – 1.0 gpm
• 207HC – 2.0 gpm
• 414HC – 4.0 gpm
• 621HC – 6.0 gpm
• 828HC – 8.0 gpm

Gemini™ Mixing Stations – 35 to 100 PSI

Features:

• For mixing two chemicals, Gemini Mixing Stations feature Lafferty's unique two pick-up Gemini™ proportioner, an industry-leading design that incorporates two completely seperated venturis in one injector body.
• Precise, independent dilution of two chemicals with differing viscosities and dilution ratios.
• The two chemical concentrates cannot cross mix and the diluted solutions mix only as they are discharged.
• Choice of Push Lever or Ball Valve operated models

Includes:

• Machined polypropylene injector body
• Stainless steel mounting enclosure
• Integrated backflow preventer (982025PL & 982025)
• Color-coded metering tips for up to 21 dilution ratios

Water Flow Rates @ 40 PSI:

• Gemini Model 25 – 2.0 gpm
• Gemini Model 150 – 7.0 gpm

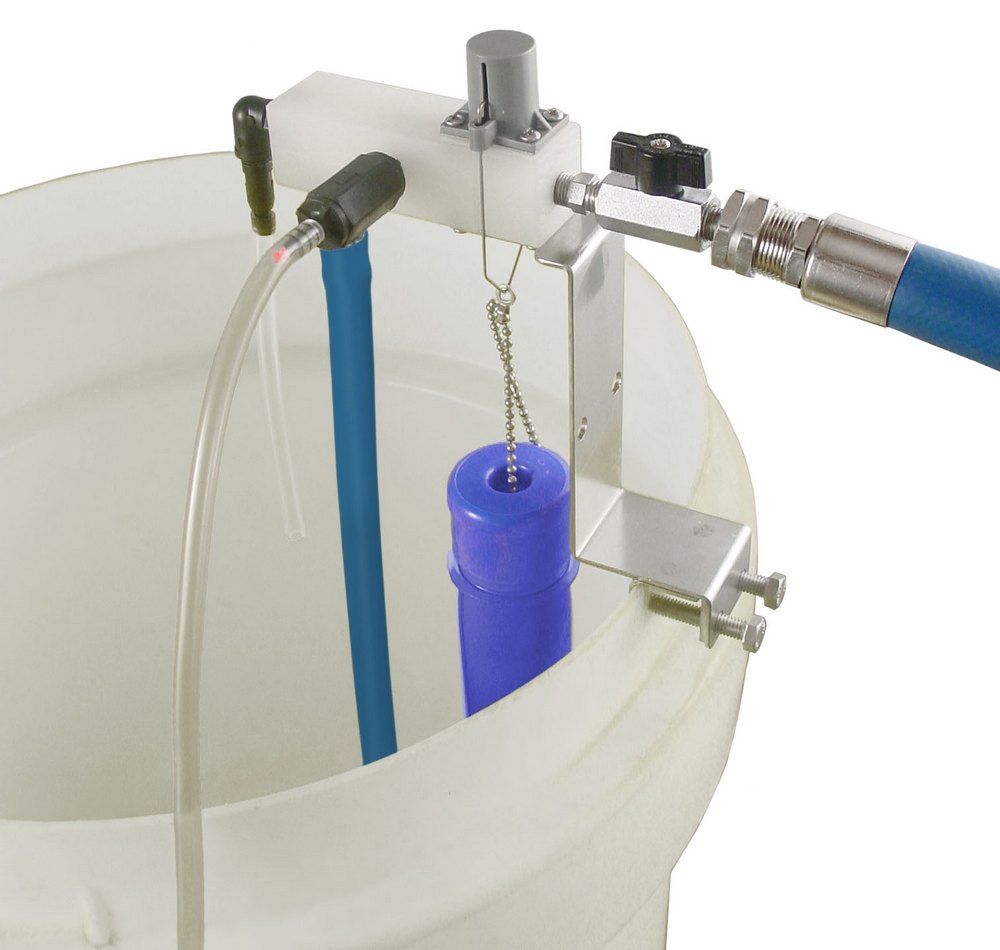

Level Master™ Proportioning Systems – 25 to 100 PSI

Lafferty Level Master™ Systems are float valve operated proportioners, designed to maintain the desired level of ready-to-use (RTU) chemical solution in any reservoir. Lafferty’s novel design integrates the float valve, venturi proportioner and chemical siphon breaker into one solid, machined block of chemically resistant polypropylene.

Features:

• Features a single water-driven venturi proportioner to dilute one chemical to the required ratio

Three styles

• Heavy-duty stainless steel bracket for open tanks
• Body with fine and coarse threads for 2-inch drum bung opening
• Integrated systems with 20-gallon or 40-gallon tanks

Includes:

• Auto on/off float valve, for continuous operation
• Manual on/off ball valve, for use when emptying solution reservoir
• Machined polypropylene combination float valve/injector body.
• Durable float with adjustable stainless steel float chain
• Color-coded metering tips for up to 21 dilution ratios

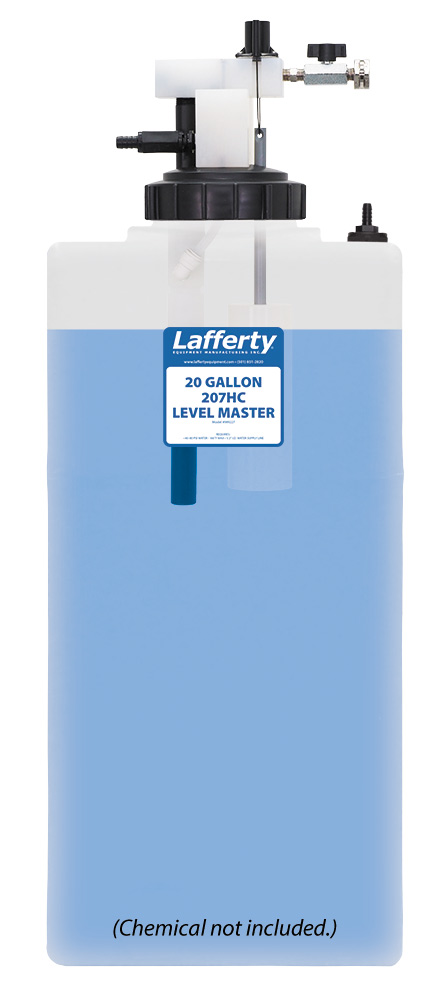

High Concentrate Level Master™ Proportioning Systems – 25 to 100 PSI

Lafferty Level Master™ Systems are float valve operated proportioners, designed to maintain the desired level of ready-to-use (RTU) chemical solution in any reservoir. Lafferty’s novel design integrates the float valve, venturi proportioner and chemical siphon breaker into one solid, machined block of chemically resistant polypropylene.

• Will deliver a true 1:1 dilution ratio with water-thin chemical
• Included metering plugs provide 2:1 and 3:1 ratios
• Features a single water-driven venturi proportioner to dilute one chemical to the required ratio

Two styles

• Heavy-duty stainless steel bracket for open tanks
• Integrated systems with 20-gallon tank

Includes

• Auto on/off float valve, for continuous operation
• Manual on/off ball valve, for use when emptying solution reservoir
• Machined polypropylene combination float valve/injector body.
• Durable float with adjustable stainless steel float chain
• Metering plugs for 2:1 and 3:1 ratios

Gemini Level Master™ Proportioning Systems – 25 to 100 PSI

Lafferty Level Master™ Systems are float valve operated proportioners, designed to maintain the desired level of ready-to-use (RTU) chemical solution in any reservoir. Lafferty’s novel design integrates the float valve, venturi proportioner and chemical siphon breaker into one solid, machined block of chemically resistant polypropylene.

• The unique twin pick-up Gemini Level Master™ System is an industryleading design that incorporates two completely separated venturis in one injector body.
• Precise, independent dilution of two chemicals with differing viscosities and dilution ratios.
• Can be used for adding foaming or sanitizing agents as needed in food industry applications
• The two chemical concentrates cannot cross mix and the diluted solutions mix only as they are discharged.

Two styles

• Heavy-duty stainless steel bracket for open tanks
• Integrated systems with 20-gallon or 40-gallon tanks

Includes

• Auto on/off float valve, for continuous operation
• Manual on/off ball valve, for use when emptying solution reservoir
• Machined polypropylene combination float valve/injector body.
• Durable float with adjustable stainless steel float chain
• Color-coded metering tips for up to 21 dilution ratios
