Lafferty Equipment Is Building Performance You Can Trust!

Lafferty Hose Drop Stations™

Optional Red Sanitizing Hose

If the foam cleaning and sanitizing chemicals are not compatible, an optional red, sanitizing hose assembly is available.

Optional Red Sanitizing Hose

Available for model #s 914120, 914125, 915120, and 915125.

More Lafferty Products



Foam Clean, Rinse and/or Sanitize from One Convenient Station

Lafferty Hose Drop Stations™ (HDS) help provide food plant sanitation crews the effectiveness of foam cleaning, rinsing and/or sanitizing from one convenient station.

The all-in-one design conserves space and saves on plumbing and installation costs.

Rinse / Airless Foam Hose Drop Station– 35 to 125 PSI Water

Foam Wand Assembly

Features:

  • Lafferty Rinse / Airless Foam Hose Drop Stations are convenient combination systems that will apply chemical as foam, and rinse.
  • Lafferty's unique 4-hole stainless steel rinse nozzle provides a powerful, high performance rinse.
  • Medium volume output for all foaming applications. Foam is created instantly by the venturi airless foam wand.
  • Usable foam throw distance of up to 6 feet.
  • Covers up to 500 ft2 (46.5 m2) in 2 minutes 4-Hole Rinse Wand




Includes:

  • Machined polypropylene foamer body
  • Stainless steel mounting enclosure
  • Stainless steel ball valves
  • Color-coded metering tips for up to 21 dilution ratios
  • Two discharge hose assemblies:
  • Foam: Hose with stainless steel ball valve and machined polypropylene airless foam wand
  • Rinse: Hose with stainless steel ball valve and Lafferty's powerful 4-hole stainless steel rinse nozzle
Rinse / A-25 Airless Foam HDS Complete (Click for larger view.)

Model:

Description:

915918

Rinse / A-25 Airless Foam HDS Complete


Instructions

Sales Sheet

Installation/Operation Instructions Sales Sheet
Print

517 Sanitize / Airless Foam Hose Drop Station – 35 to 125 PSI Water

Foam / Sanitize Wand Assembly

Features:

  • Lafferty Sanitize / Airless Foam Hose Drop Stations are convenient combination systems that will apply one chemical as foam and a second chemical as a sanitizing spray.
  • 517 Sanitizers provide the dilution ratios required for no-rinse applications in food plants.
  • Airless Foamers provide medium volume output for all foaming applications. Foam is created instantly by the venturi airless foam wand
  • Usable foam throw distance of up to 6 feet.
  • Covers up to 500 ft2 (46.5 m2) in 2 minutesAirless foam discharge assembly




Includes:

  • Machined polypropylene injector bodies
  • Stainless steel mounting enclosure
  • Color-coded metering tips for up to 21 dilution ratios
  • Two discharge hose assemblies:
  • Sanitize: Hose with stainless steel ball valve, polypropylene wand and matching nozzle
  • Foam: Hose with stainless steel ball valve and machined polypropylene airless foam wand
517 Sanitize / Airless Foam Hose Drop Station Complete (Click for larger view.)

Model:

Description:

915920

517 Sanitize / A-25 Foam HDS Complete


Instructions

Sales Sheet

Installation/Operation Instructions Sales Sheet
Print

Sanitize / Rinse / Airless Foam Hose Drop Station – 35 to 125 PSI Water

Foam / Sanitize Wand Assembly

Features:

  • Lafferty Sanitize / Rinse/ Airless Foam Hose Drop Stations are convenient combination systems that will apply one chemical as foam and a second chemical as a sanitizing spray, and rinse.
  • 517 Sanitizers provide the dilution ratios required for no-rinse applications in food plants.
  • Lafferty's unique 4-hole stainless steel rinse nozzle provides a powerful, high performance rinse.
  • Airless Foamers provide medium volume output for all foaming applications. Foam is created instantly in the venturi airless foam wand.
  • Foam throw of up to 10 feet, covering up to 500 ft2 (46.5 m2) in under 2 minutes 4-Hole Rinse Wand




Includes:

  • Machined polypropylene injector bodies
  • Stainless steel mounting enclosure & stainless steel ball valves
  • Color-coded metering tips for up to 21 dilution ratios
  • Three discharge hose assemblies:
  • Sanitize: Hose with stainless steel ball valve, polypropylene wand and matching fan nozzle
  • Rinse: Hose with stainless steel ball valve and Lafferty's powerful 4-hole stainless steel rinse nozzle
  • Foam: Hose with stainless steel ball valve, machined polypropylene airless foam wand Airless foam discharge hose assembly




517 Sanitize / Rinse / A-25 Airless Foam HDS Complete (Click for larger view.)

Model:

Description:

915925

517 Sanitize / Rinse / A-25 Airless Foam HDS Complete



Instructions

Sales Sheet

Installation/Operation Instructions Sales Sheet
Print

Rinse / Foam Hose Drop Station
(Wall Mount / Compressed Air Required) – 35 to 125 PSI Water

Foam Wand Assembly

Features:

  • Lafferty Rinse / Foam Hose Drop Stations are convenient combination systems that will apply chemical as foam, and rinse.
  • Lafferty's unique 4-hole stainless steel rinse nozzle provides a powerful, high performance rinse.
  • Ultimate and LC Foamers provide medium volume output for all foaming appplications.
  • Ultimate Foamers will foam harder-to-foam chemicals, will perform well when water pressure is marginal, and are equipped with a 50 ft. hose. (LC Foamers are equipped with a 40 ft. hose.)
  • Foam throw distance of up to 12 feet
  • Covers up to 500 square feet (46.5 square meters) in under 2 minutes
  • 4-Hole Rinse Wand




Includes:

  • Machined polypropylene foamer body
  • Stainless steel mounting enclosure
  • Air regulator
  • Color-coded metering tips for up to 21 dilution ratios
  • Two discharge hose assemblies:
  • Foam: Hose with stainless steel ball valve, foam wand and matching fan nozzle
  • Rinse: Hose with stainless steel ball valve and Lafferty's powerful 4-hole stainless steel rinse nozzle
Ultimate Rinse / Foam Hose Drop Station Complete (Click for larger view.)

Model:

Description:

914118

Rinse / Ultimate Foam HDS Complete

915118

Rinse / LC Foam HDS Complete


Instructions

Sales Sheet

Installation/Operation Instructions Sales Sheet
Print

1035 Sanitize / Ultimate Foam Hose Drop Station
(Wall Mount / Compressed Air Required) – 35 to 125 PSI Water

Foam / Sanitize Wand Assembly

Features:

  • Lafferty Sanitize / Foam Hose Drop Stations are convenient combination systems that will apply one chemical as foam and a second chemical as a sanitizing spray.
  • Quick disconnects allow one hose to be used for both foaming and sanitizing.
  • 1035 Sanitizers provide the dilution ratios required for no-rinse applications in food plants.
  • Ultimate and LC Foamers provide medium volume output for all foaming applications.
  • Ultimate Foamers will foam harder-to-foam chemicals, will perform well when water pressure is marginal, are are equipped with a 50 ft. hose. (LC Foamers are equipped with a 40 ft. hose.)
  • Foam throw distance of up to 12 feet
  • Covers up to 500 square feet (46.5 square meters) in under 2 minutes

Includes:

  • Machined polypropylene sanitizer and foamer bodies
  • Stainless steel mounting enclosure (wall mount models)
  • Air regulator
  • Color-coded metering tips for up to 21 dilution ratios
  • Quick disconnects to allow single hose to be used for both applications
  • Discharge hose, stainless steel ball valve, polypropylene wand and matching nozzle

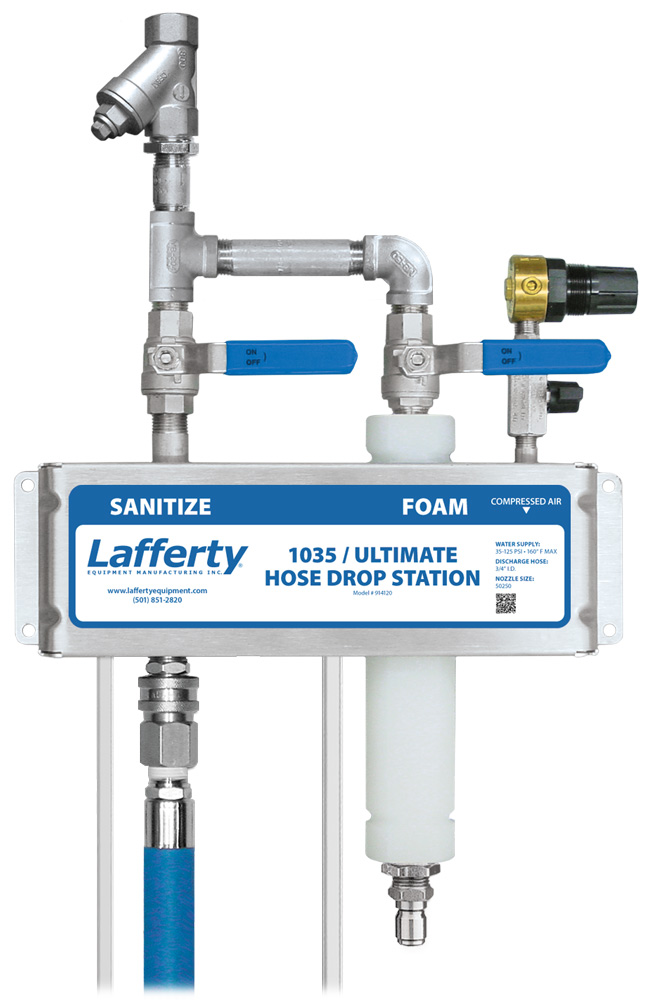

1035 Sanitize / Ultimate Foam Hose Drop Station Complete (Click for larger view.)

Model:

Description:

914120

1035 Sanitize / Ultimate Foam HDS Complete


(Optional red hose may be added for when foaming and sanitizing chemicals are not compatible.)

Instructions

Sales Sheet

Installation/Operation Instructions Sales Sheet
Print

1035 Sanitize / Rinse / Ultimate Foam Hose Drop Station
(Wall Mount / Compressed Air Required) – 35 to 125 PSI Water

Foam / Sanitize Wand Assembly

Features:

  • Lafferty Sanitize / Rinse/ Foam Hose Drop Stations are convenient combination systems that will apply one chemical as foam and a second chemical as a sanitizing spray, and rinse.
  • 1035 Sanitizers provide the dilution ratios required for no-rinse applications in food plants.
  • Lafferty's unique 4-hole stainless steel rinse nozzle provides a powerful, high performance rinse.
  • Ultimate and LC Foamers provide medium volume output for all foaming applications.
  • Ultimate Foamers will foam harder-to-foam chemicals, will perform well when water pressure is marginal, are are equipped with a 50 ft. hose. (LC Foamers are equipped with a 40 ft. hose.)
  • Quick disconnects allow one hose to be used for foaming and sanitizng.
  • Foam throw of up to 12 feet, covering up to 500 square feet (46.5 square meters) in under 2 minutes
  • Portable model features a stainless steel cart that holds two, user-supplied 5-gallon chemical containers. 4-Hole Rinse Wand




Includes:

  • Machined polypropylene sanitizer and foamer bodies
  • Machined stainless steel sanitizer and foamer bodies (SS models)
  • Stainless steel mounting enclosure & stainless steel ball valves
  • Air regulator
  • Color-coded metering tips for up to 21 dilution ratios
  • Two discharge hose assemblies:
  • Sanitize/Foam: Hose with quick disconnects, stainless steel ball valve, foam wand and matching fan nozzle
  • Rinse: Hose with stainless steel ball valve and Lafferty's powerful 4-hole stainless steel rinse nozzle

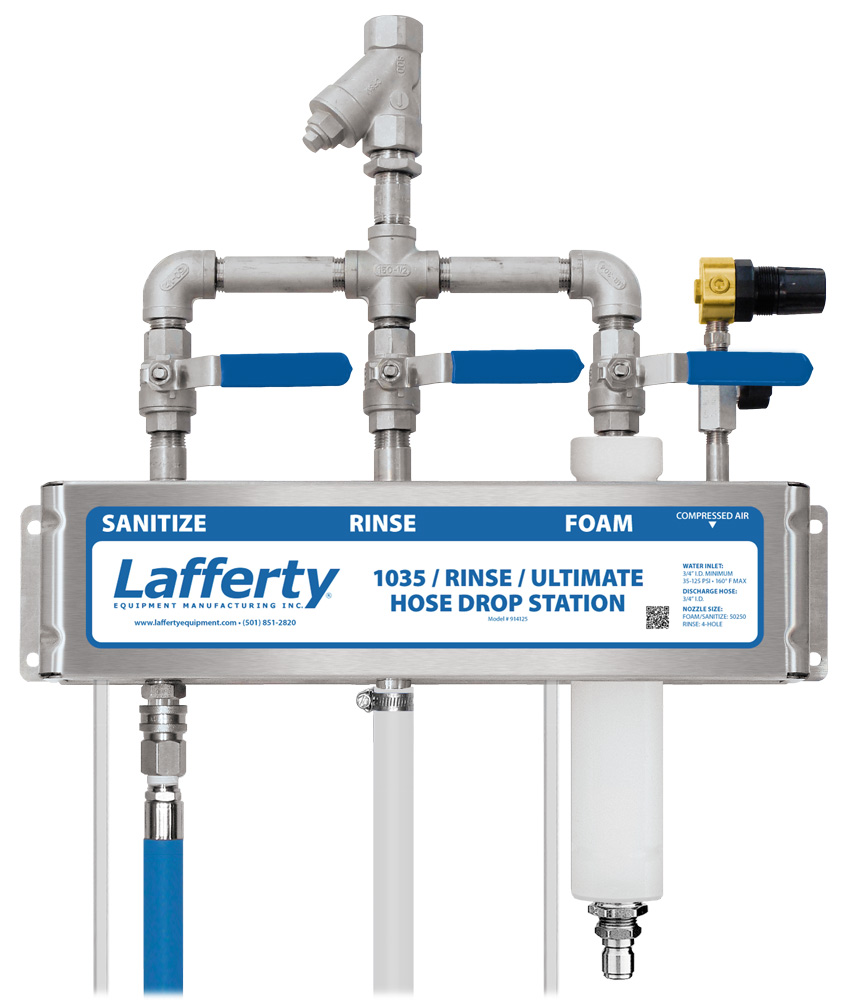

1035 Sanitize / Rinse / Ultimate Foam Hose Drop Station Complete (Click for larger view.)

Model:

Description:

914125

1035 Sanitize / Rinse / Ultimate Foam HDS Complete


(Optional red hose may be added for when foaming and sanitizing chemicals are not compatible.)

Instructions

Sales Sheet

Installation/Operation Instructions Sales Sheet
Print

1035 Sanitize / LC Foam Hose Drop Station
(Wall Mount & Portable Models / Compressed Air Required) – 35 to 125 PSI Water

Foam / Sanitize Wand Assembly




Features:

  • Lafferty Sanitize / Foam Hose Drop Stations are convenient combination systems that will apply one chemical as foam and a second chemical as a sanitizing spray.
  • Quick disconnects allow one hose to be used for both foaming and sanitizing.
  • 1035 Sanitizers provide the dilution ratios required for no-rinse applications in food plants.
  • Ultimate and LC Foamers provide medium volume output for all foaming applications.
  • Ultimate Foamers will foam harder-to-foam chemicals, will perform well when water pressure is marginal, are are equipped with a 50 ft. hose. (LC Foamers are equipped with a 40 ft. hose.)
  • Foam throw distance of up to 12 feet
  • Covers up to 500 square feet (46.5 square meters) in under 2 minutes
  • Portable model features a stainless steel cart that holds two, user-supplied 5-gallon chemical containers.

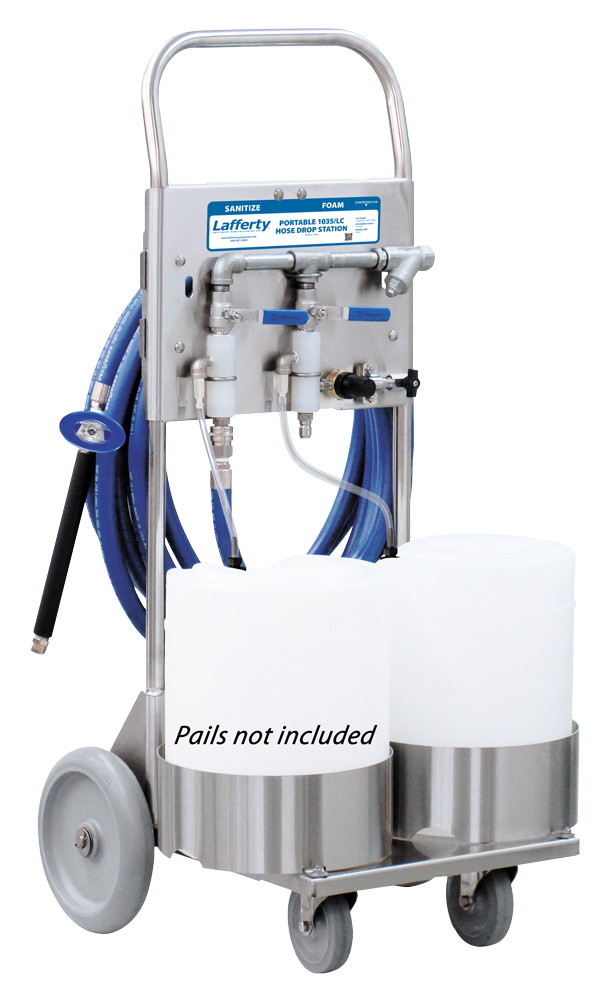

Portable 1035 Sanitize / LC Foam Hose Drop Station Complete (Click for larger view.)

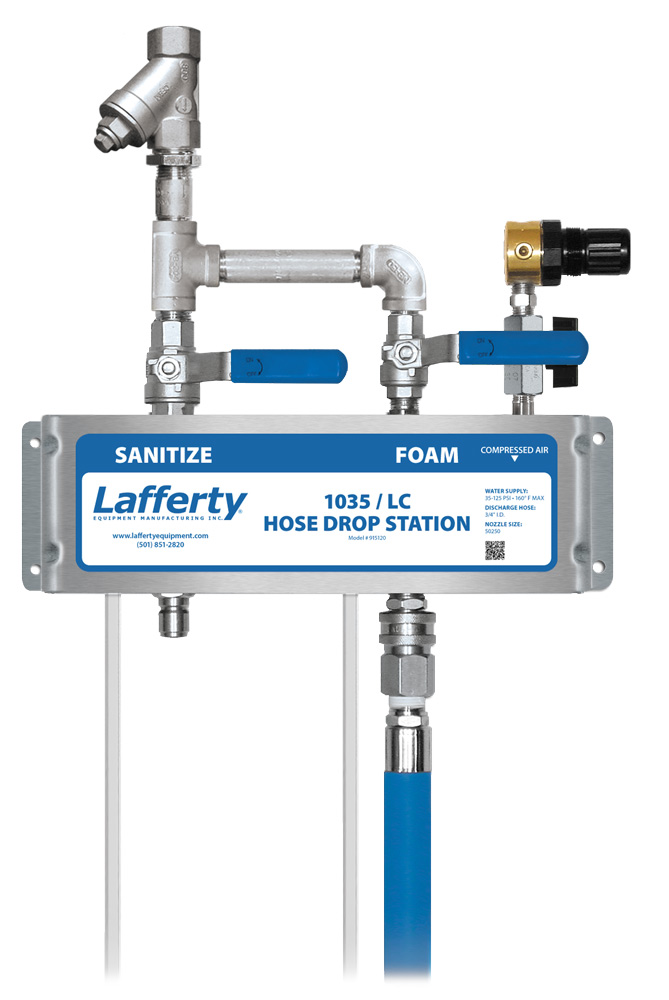

1035 Sanitize / LC Foam Hose Drop Station Complete (Click for larger view.)

Model:

Description:

915120

1035 Sanitize / LC Foam HDS Complete

915120SS

1035SS Sanitize / LCSS Foam HDS Complete

915850

Portable 1035 Sanitize / LC Foam HDS Complete


(Optional red hose may be added for when foaming and sanitizing chemicals are not compatible.)

Includes:

  • Machined polypropylene sanitizer and foamer bodies
  • Machined stainless steel sanitizer and foamer bodies (915120SS)
  • Stainless steel mounting enclosure (wall mount models)
  • Air regulator
  • Color-coded metering tips for up to 21 dilution ratios
  • Quick disconnects to allow single hose to be used for both applications
  • Discharge hose, stainless steel ball valve, polypropylene wand and matching nozzle
  • Portable models feature all stainless steel carts.

Instructions

Wall Mount

Portable

Sales Sheet

Wall Mount Installation/Operation Instructions Portable Installation/Operation Instructions Sales Sheet
Print

1035 Sanitize / Rinse / LC Foam Hose Drop Station
(Wall Mount / Compressed Air Required) – 35 to 125 PSI Water

Foam / Sanitize Wand Assembly

Features:

  • Lafferty Sanitize / Rinse/ Foam Hose Drop Stations are convenient combination systems that will apply one chemical as foam and a second chemical as a sanitizing spray, and rinse.
  • 1035 Sanitizers provide the dilution ratios required for no-rinse applications in food plants.
  • Lafferty's unique 4-hole stainless steel rinse nozzle provides a powerful, high performance rinse.
  • Ultimate and LC Foamers provide medium volume output for all foaming applications.
  • Ultimate Foamers will foam harder-to-foam chemicals, will perform well when water pressure is marginal, are are equipped with a 50 ft. hose. (LC Foamers are equipped with a 40 ft. hose.)
  • Quick disconnects allow one hose to be used for foaming and sanitizng.
  • Foam throw of up to 12 feet, covering up to 500 square feet (46.5 square meters) in under 2 minutes
  • Portable model features a stainless steel cart that holds two, user-supplied 5-gallon chemical containers. 4-Hole Rinse Wand




Includes:

  • Machined polypropylene sanitizer and foamer bodies
  • Machined stainless steel sanitizer and foamer bodies (SS models)
  • Stainless steel mounting enclosure & stainless steel ball valves
  • Air regulator
  • Color-coded metering tips for up to 21 dilution ratios
  • Two discharge hose assemblies:
  • Sanitize/Foam: Hose with quick disconnects, stainless steel ball valve, foam wand and matching fan nozzle
  • Rinse: Hose with stainless steel ball valve and Lafferty's powerful 4-hole stainless steel rinse nozzle
  • Portable models feature all stainless steel carts.

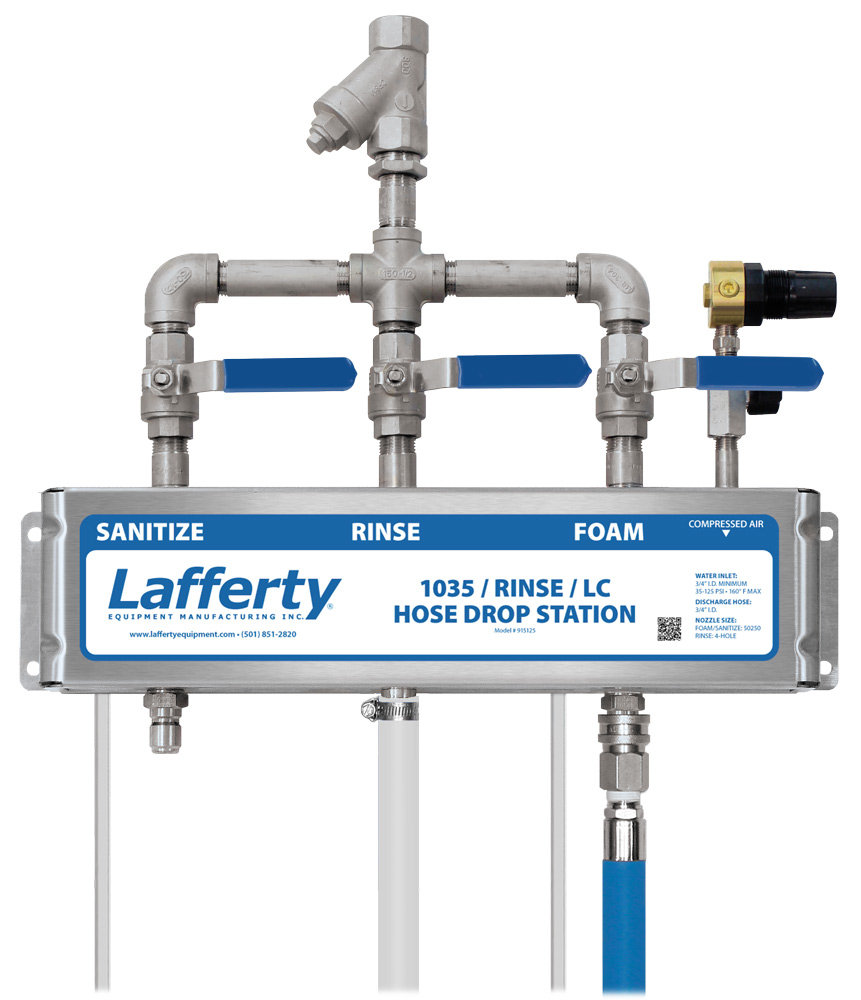

1035 Sanitize / Rinse / LC Foam Hose Drop Station Complete (Click for larger view.)

Model:

Description:

915125

1035 Sanitize / Rinse / LC Foam HDS Complete

915125SS

1035SS Sanitize / Rinse / LC Foam HDS Complete

915855

Portable 1035 Sanitize / Rinse / LC Foam HDS Complete


(Optional red hose may be added for when foaming and sanitizing chemicals are not compatible.)

Instructions

Sales Sheet

Installation/Operation Instructions Sales Sheet
Print

Sanitize / HV Foam Hose Drop Stations
(Wall Mount & Portable Models / Compressed Air Required) – 35 to 125 PSI Water

Foam / Sanitize Wand Assembly




Features:

  • Lafferty Sanitize / Foam Hose Drop Stations are convenient combination systems that will apply one chemical as foam and a second as a sanitizing spray.
  • 1035 Sanitizers provide dilution ratios required for no-rinse applications in food plants.
  • HV Foamers provide high volume output for foaming large surface areas with a foam throw distance of up to 27 feet and covering up to 500 square feet (46.5 square meters) in 1 minute
  • Portable model features a stainless steel cart that holds two, user-supplied 5-gallon chemical containers.

Portable 1035 Sanitize / HV Foam Hose Drop Station Complete (Click for larger view.)
1035 Sanitize / HV Foam Hose Drop Station Complete (Click for larger view.)

Model:

Description:

916120

1035 Sanitize / HV Foam HDS Complete

916850

Portable 1035 Sanitize / HV Foam HDS Complete


Includes:

  • Machined polypropylene sanitizer and foamer bodies
  • Stainless steel mounting enclosure (wall mount model)
  • Air regulator
  • Stainless steel ball valves
  • Color-coded metering tips for up to 21 dilution ratios
  • Separate Sanitize and Foam discharge hose assemblies, each with stainless steel ball valve, polypropylene wand and matching nozzle
  • Portable models feature all stainless steel carts.

Instructions

Wall Mount

Portable

Sales Sheet

Wall Mount Installation/Operation Instructions Portable Installation/Operation Instructions Sales Sheet
Print

Optional Red Hose Kits



Features:

  • Red sanitizer hoses available for when foaming and sanitizing chemicals are not compatible.

Includes:

  • 3/4" (19.1 mm) ID hose (length as noted below)
  • Quick disconnect socket
  • Stainless steel ball valve
  • Wand with matching fan nozzle
Red Hose Kit

Model:

Description:

807740RQD

40' Red Hose Kit (for LC Hose Drop Station)

807750RQD

50' Red Hose Kit (for Ultimate Hose Drop Station)


(Picture shows Red Hose Kit and optional hose rack)

Hose Drop Stations (HDS)

More Hose Drop Stations...

View All | Venturi (Water) Driven – 35 to 125 psi | Pump Fed for Central Systems | High Pressure

What's New   |   Company   |   Products   |   Foamer Demo   |   Foamer Selection Chart  |   Support
Downloads   |   Tools   |   Contact   |   Site Map   |   Privacy Policy   |   Home

© 2002-2010 Lafferty Equipment™ Mfg. Inc. All Rights Reserved.

Comments and/or questions about the website should be addressed to webmaster@laffertyequipment.com
Lafferty Equipment Manufacturing, Inc. • 5614 Oak Grove Road, N. Little Rock, AR 72118 • 501-851-2820
