Lafferty Airless Foamers™

Find Airless Foamers In Our Lafferty Catalogs:

More Lafferty Products



Lafferty Airless Foamers™ are venturi-driven chemical applicators that produce a wet, clinging foam from any foaming chemical without the need for compressed air. Lafferty Airless Foamers use metering tips to provide a wide range of chemical dilutions. Many different styles are available to suit specific application requirements.

Airless Foamer QuickLinks:

View All  |   Low Pressure  |   Boosted Pressure  |   High Pressure  |   Uni-Body  |   Brush  |   Acid  |   Asphalt Release

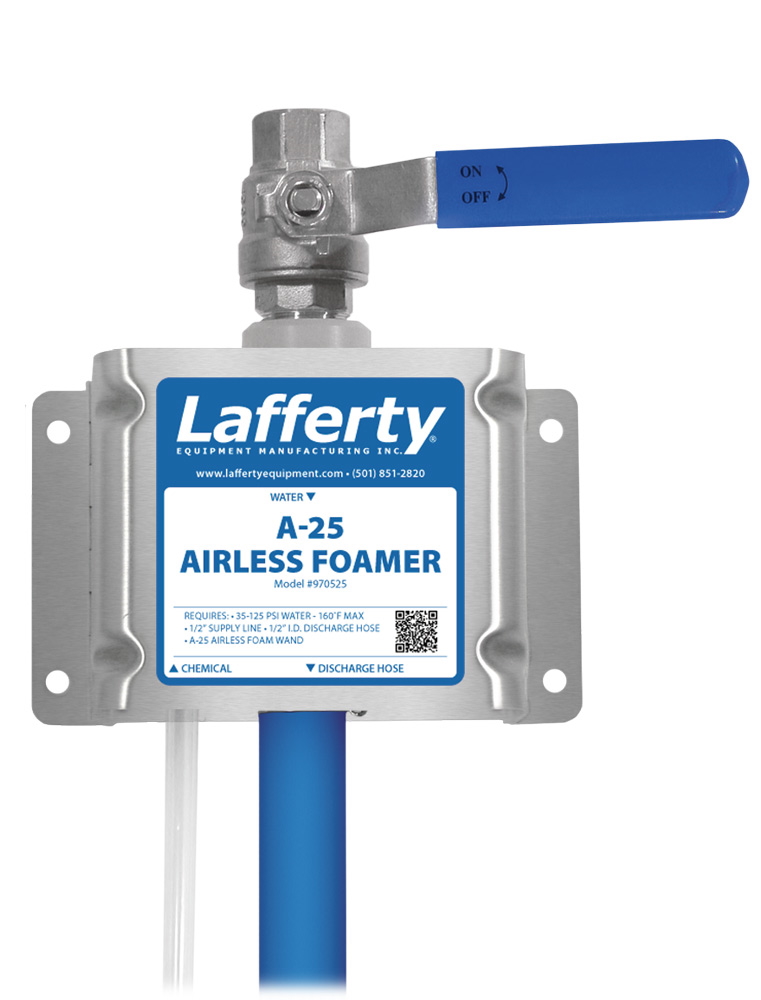

Airless Foamers – 35 to 125 PSI

Features:

  • Lafferty Airless Foamers do not require compressed air, eliminating cost and equipment adjustment issues.
  • Foam is created instantly by the venturi airless foam wand.
  • Choice of two flow rates provides for quick area coverage for small or large applications.
  • Foam throw distance of up to 8 ft. for A-25 models and up to 10 ft. for A-50 models — Increased water pressure will increase foam throw.

Includes:

  • Machined polypropylene injector body
  • Stainless steel mounting enclosure
  • Stainless steel ball valves
  • Color-coded metering tips for up to 21 dilution ratios
  • Discharge hose, stainless steel ball valve and machined polypropylene airless foam wand

Water Flow Rates @ 40 PSI:

  • A-25 – 1.3 gpm
  • A-50 – 2.3 gpm

Airless Foamer Wand Assemblies



Model:

Description:

970525

A-25 Airless Foamer Complete

970550

A-50 Airless Foamer Complete


Instructions

970525
Installation/Operation Instructions

970550
Installation/Operation Instructions

Print

Hand Held Airless Foamers - 20 to 100 PSI

Features:

  • Foam is created instantly by the venturis machined into the airless foamer.
  • Attaches to standard garden hose
  • Foam throw distance of up to 15 ft.

Includes:

  • Machined polypropylene airless foamer
  • Color-coded metering tips for up to 21 dilution ratios

Model 25 PP Airless Foamer Complete (Click for larger view.)

Model:

Description:

969926

Model 25 Airless Foamer w/ Ball Valve Complete


Model 25 PP Airless Foamer (Click for larger view.)

Model #

Description:

969925

Model 25 Airless Foamer


Gun, Plug, and Socket (Click for larger view.)

Options: Model #

Description:

320423

Gun, Garden Hose

350472

Quick Disconnect Plug

350474

Quick Disconnect Socket


Instructions
Installation/Operation Instructions

Print

Uni-Body Airless Foamers (Wall Mount) – 35 to 125 PSI

Features:

  • Lafferty Uni-Body Airless Foamers do not require compressed air, eliminating cost and equipment adjustment issues.
  • Foam is created instantly by the venturi airless foam wand.
  • Choice of two flow rates provides for quick area coverage for small or large applications.
  • Foam throw distance of up to 8 ft. for A-25 models and up to 10 ft. for A-50 models — Increased water pressure will increase foam throw.

Includes:

  • Machined polypropylene injector body
  • Compact Uni-Body design
  • Color-coded metering tips for up to 21 dilution ratios
  • Discharge hose, ball valve and machined polypropylene airless foam wand
  • Portable models feature all stainless steel cart and hold one user-supplied 5-gallon chemical container

Water Flow Rates @ 40 PSI:

  • A-25 – 1.3 gpm
  • A-50 – 2.3 gpm

Airless Foamer Wand Assemblies

Model:

Description:

975075

Uni-Body A-25 Airless Foamer Complete

975085

Uni-Body A-50 Airless Foamer Complete

975086

Portable Uni-Body A-25 Airless Foamer

975087

Portable Uni-Body A-50 Airless Foamer


Instructions

975075
Installation/Operation Instructions

975085
Installation/Operation Instructions

975086
Installation/Operation Instructions

975087
Installation/Operation Instructions

Print

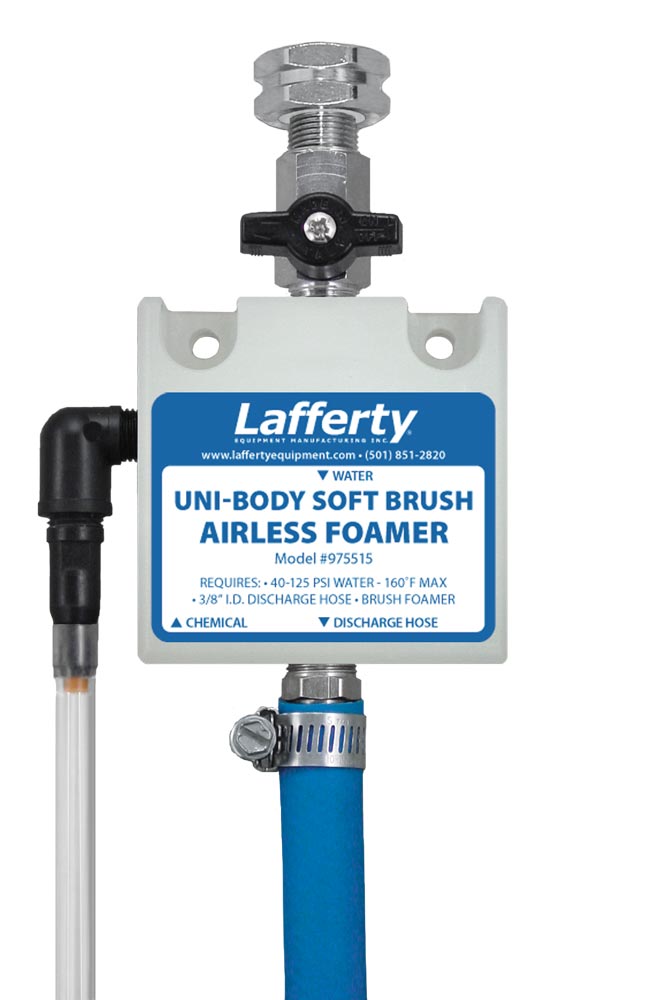

Uni-Body Airless Brush Foamer (Wall Mount) – 35 to 125 PSI



Features:

  • Lafferty Airless Brush Foamers do not require compressed air, eliminating cost and equipment adjustment issues.
  • Very low volume output provides balanced foam volume at the brush head
  • Available with a soft bristle brush or with a stiff bristle brush

Includes:

  • Machined polypropylene injector body and machined stainless steel airless foam generator
  • Color-coded metering tips for up to ll dilution ratios
  • Discharge hose,ball valve, handle and foam brush head

Model:

Description:

975515

Uni-Body Airless Brush Foamer Complete

975520

Uni-Body Airless Stiff Brush Foamer Complete


* These brushes are NOT for use inside food grade facilities.

Instructions
Installation/Operation Instructions

Print

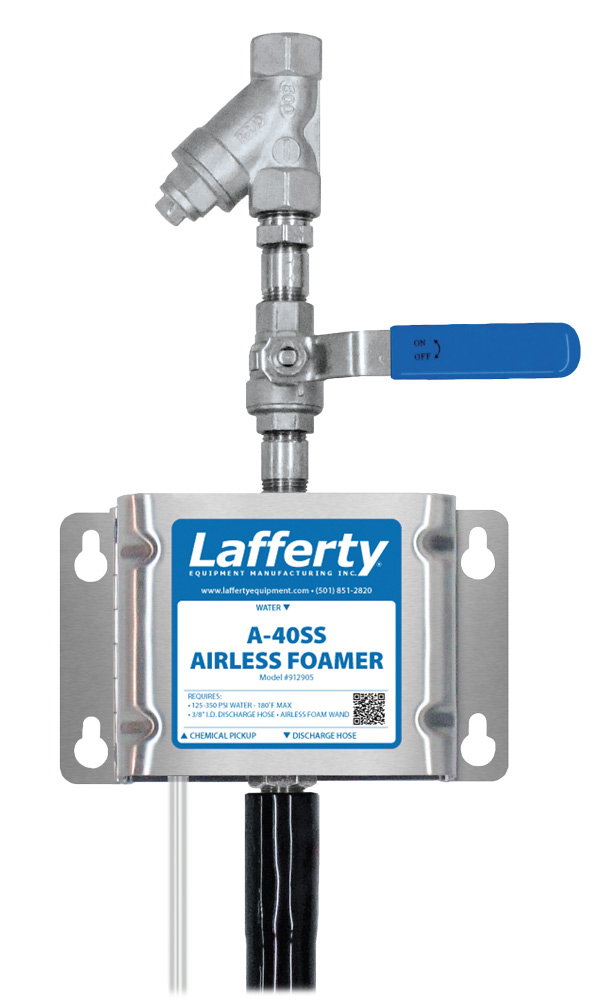

Boosted Pressure Airless Foamers (Wall Mount) – 125 to 350 PSI

  • Produces airless foam using boosted pressure water systems
  • Lafferty Airless Foamers do not require compressed air, eliminating cost and equipment adjustment issues.
  • Foam is created instantly by the venturi airless foam wand
  • Usable foam throw distance up to 10 ft.

Includes:

  • Machined stainless steel injector body
  • Stainless steel Y strainer
  • Stainless steel mounting enclosure
  • Stainless steel ball valve
  • Color-coded metering tips for up to 21 dilution ratios
  • High pressure discharge hose, trigger gun and stainless steel, airless foam wand

High Pressure Airless Foamer – Trigger Gun & Stainless Steel Airless Foamer (Click for larger view.)

Model:

Description:

912905

A-40SS Airless Foamer Complete


Instructions

Print

High Pressure Airless Foamers (Wall Mount) – 400 to 1000 PSI

Features:

  • Produces airless foam using high pressure water systems
  • Lafferty Airless Foamers do not require compressed air, eliminating cost and equipment adjustment issues.
  • Foam is created instantly by the venturi airless foam wand
  • Foam throw distance up to 10 ft. with fan nozzle; up to 12 ft. with 0° nozzle

Includes:

  • Machined stainless steel injector body
  • Stainless steel mounting inclosure
  • Color-coded metering tips for up to 21 dilution ratios
  • High pressure discharge hose, trigger gun, stainless steel airless foam wand with fan and 0° nozzles

Water Flow Rates

  • A-10SS -2.2 gpm @ 900 PSI
  • A-20SS - 3.3 gpm @ 700 PSI
High Pressure Airless Foamer – Trigger Gun & Stainless Steel Airless Foamer (Click for larger view.)

Model:

Description:

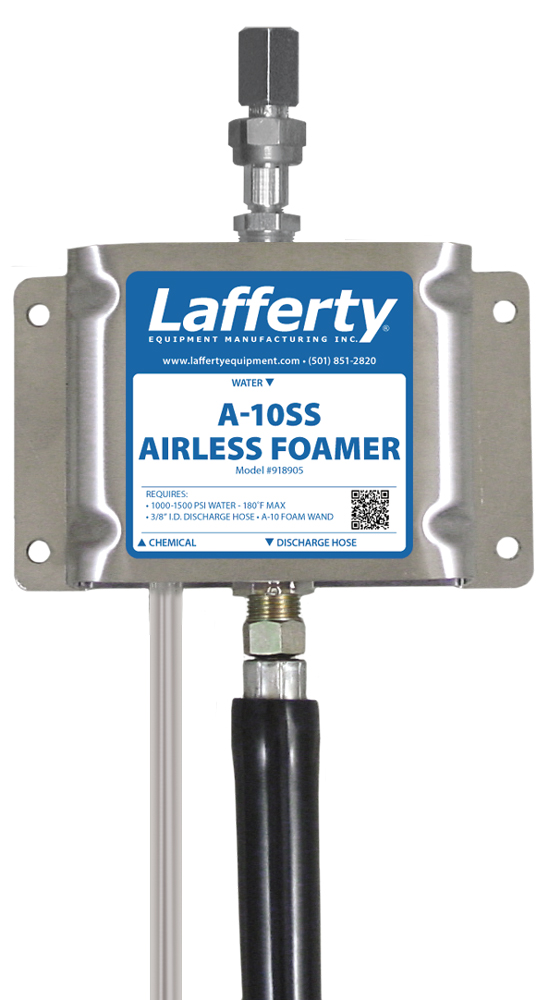

918905

A-10SS Airless Foamer Complete

917905

A-20SS Airless Foamer Complete

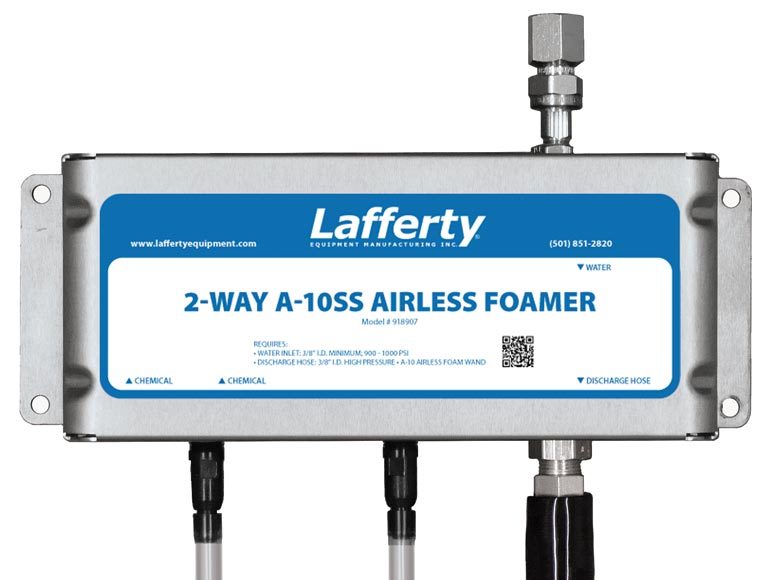

918907 2-Way A-10SS Airless Foamer Complete

Instructions

918905

917905

918907

Print
Video

Acid Airless Foamers (Wall Mount & Drum Mount) – 40 to 125 PSI

 Acid Airless Foamer Wand Assembly (Complete Models)
  • Lafferty Acid Airless Foamers are water-driven venturi systems designed for use with strongly corrosive chemicals, such as those used in the concrete industry and for aluminum brightening.
  • Lafferty Acid Airless Foamers produce and project a stream of clinging foam without compressed air. Foam is created instantly by a venturi in the airless foam wand. These models provide up to a 4:1 dilution ratio.
  • Venturi action

Includes:

  • Machined polypropylene body
  • Color-coded metering tips for up to 21 dilution ratios
  • Discharge hose assembly with PVC ball valve and airless foam wand

Options:

  • Stainless Steel Hose Racks and Jug Racks available.

Model:

Description:

972211

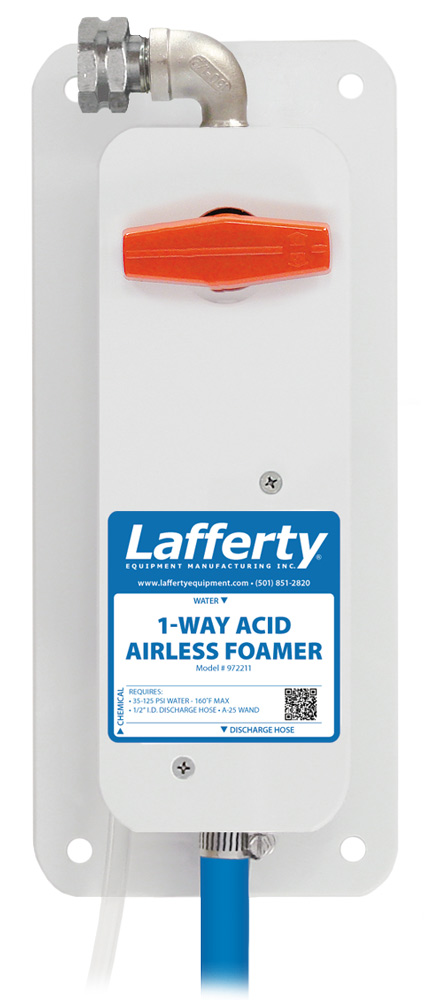

1-Way Acid Airless Foamer Complete

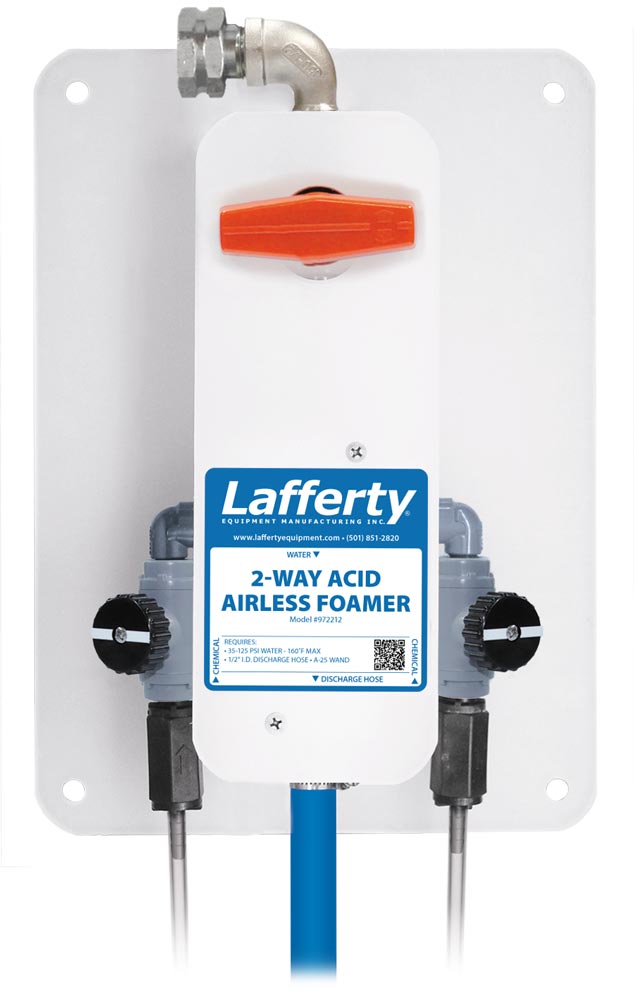

972212

2-Way Acid Airless Foamer Complete

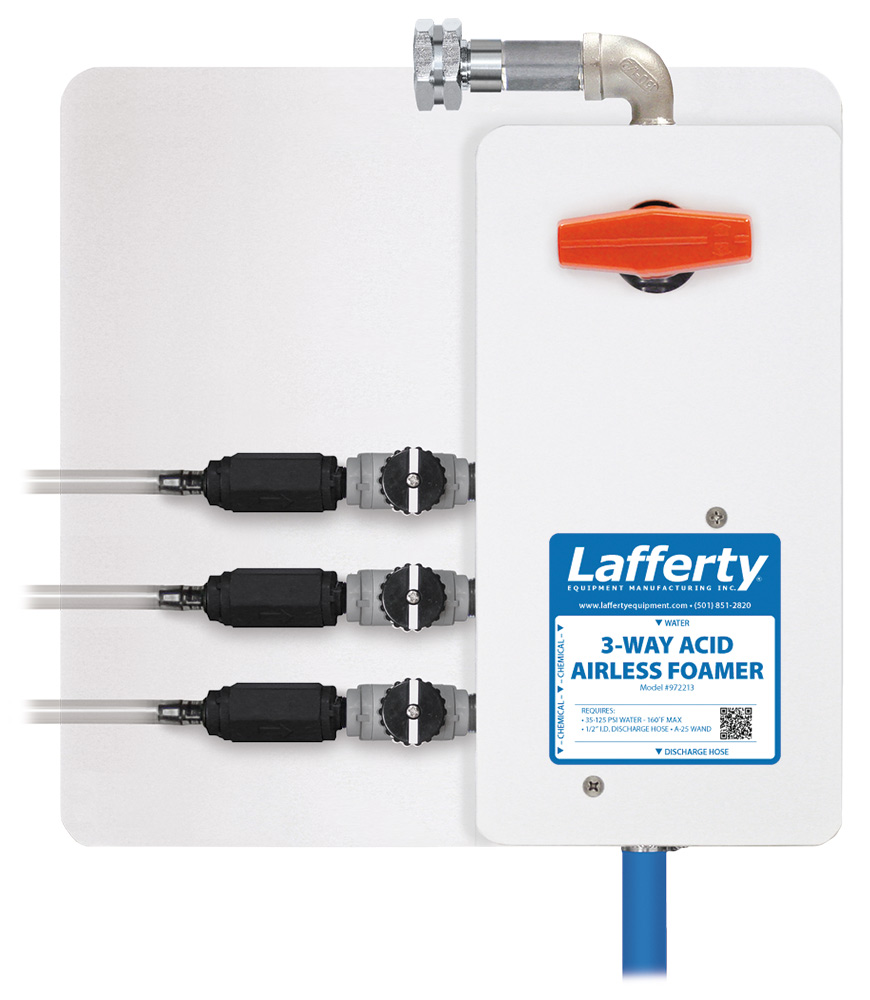

972213

3-Way Acid Airless Foamer Complete

972225

Acid Drum Bung Mount Airless Foamer Complete


972211
Installation/Operation Instructions

972212
Installation/Operation Instructions

972213
Installation/Operation Instructions

972225
Installation/Operation Instructions

Print

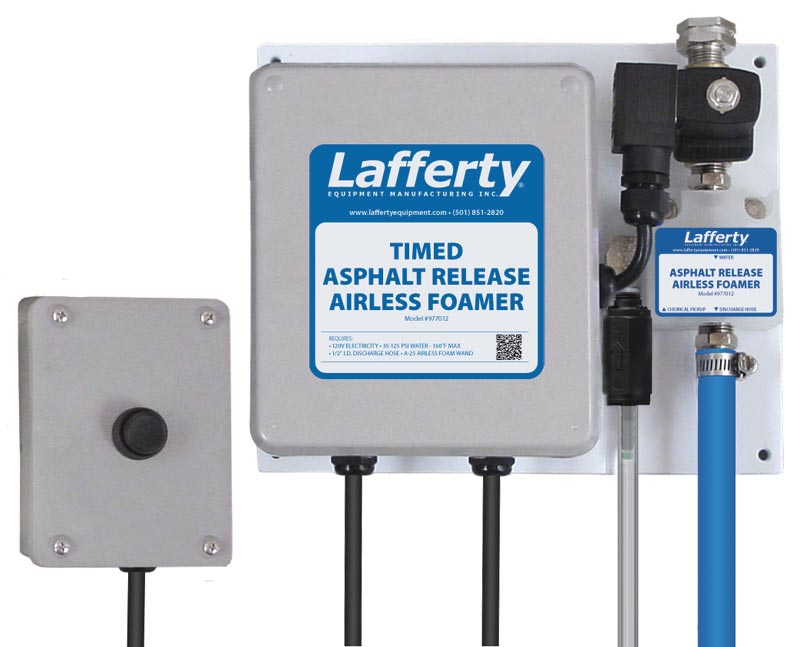

Timed Asphalt Release Airless Foamers – 35 to 125 PSI

  • Timed models precisely control chemical use
  • Draw asphalt release agent directly from original shipping containers and accurately dilute it to the required ratio

Choice of timed models:

  • Timed with push button — An adjustable timer controls the length of application. A Delay Timer keeps the driver from immediately restarting the system, preventing costly over-application.
  • Coin operated — Electronic coin acceptor activates a timer that controls the length of application. Acceptor is built to withstand dirty, moist and unforgiving environments. 100 tokens included.

Airless Foamers

  • For foaming asphalt release agents, these systems project an even foam pattern for quick, complete coverage of the truck bed.
  • Foam provides visual confirmation of coverage



Model:

Description:

977012

Timed Asphalt Release Airless Foamer Complete

977012-Coin Coin Operated Asphalt Release Foamer Complete

Instructions

977012

Installation/Operation Instructions

977012-Coin

Installation/Operation Instructions
Print
