Freedom XV Foamer

Model # 944105

The Freedom XV Foamer is a high volume foam applicator for projecting foaming chemicals on to any surface up close or at distances up to 25 feet. This unit features a stainless steel enclosure and uses a rugged 1/2" Sandpiper air-operated, double-diaphragm pump to draw ready-to-use chemical from a user-supplied tank. It injects compressed air into the solution to greatly increase volume and coverage ability and projects rich, clinging foam through the hose, wand and nozzle.

Key Features
  • Draws pre-diluted chemical from a static tank
  • Rugged 1/2" AODD pump with Santoprene diaphragms
  • The chemical flow rate is regulated by the foamer body to match the mid-range of the air pump’s specified operating range which protects the pump from running, repetitively, at maximum capacity
  • Projects an extra-high volume of  rich, clinging foam which increases chemical contact time and effectiveness
  • Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
  • Zero degree nozzle for up to 25' foam throw
  • Covers up to 500 sq ft (46.5 sq m) in 1 minute
  • Adjustable foam consistency (wet/dry)
  • Chemical resistant wetted components ensure durability and years of reliable service
  • Available as a portable unit (#944186)
  • See other air-operated foamers and sprayers in Catalog 4

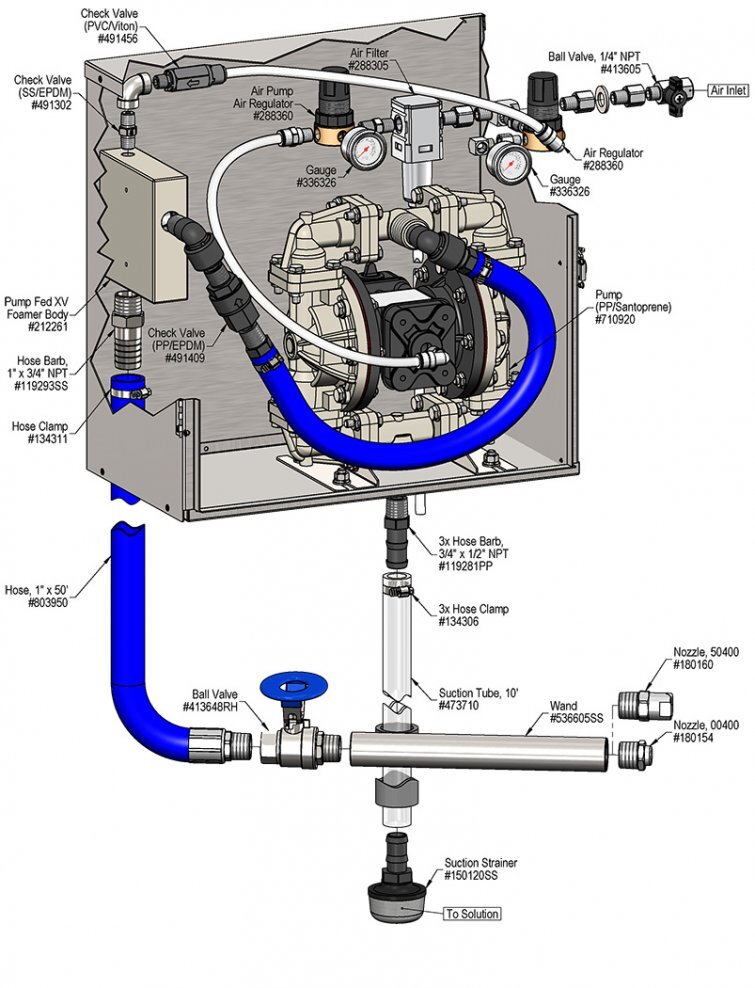

Includes

  • Lockable, all stainless steel pump enclosure
  • Air inlet ball valve and regulator/filter
  • Sandpiper 1/2" AODD pump
  • Machined polypropylene pump-fed foamer body
  • 50' discharge hose with stainless steel ball valve
  • Stainless steel foam wand with fan and zero degree nozzles
Ready-to-Use Chemical Solution
Compressed Air up to 14 CFM
Minimum Air Supply Line 3/8"
Hose 1" ID x 50'
Nozzle 00400 & 50400
Stainless Steel Hose Rack
Large# 224150
Level Masters Provide an Automatic Supply
of Ready-to-Use Chemical
Level Master (Various Tank Sizes)# 989304
Gemini Level Master (Various Tank Sizes)# 989316
Drain Foamer Attachment
Drain Foamer Attachment (Freedom XV, HV & 2.5)# 538250
Air Pump Diaphragm Options - Santoprene Standard
Teflon Diaphragm Upgrade For 1/2" Air Pump# 710919
