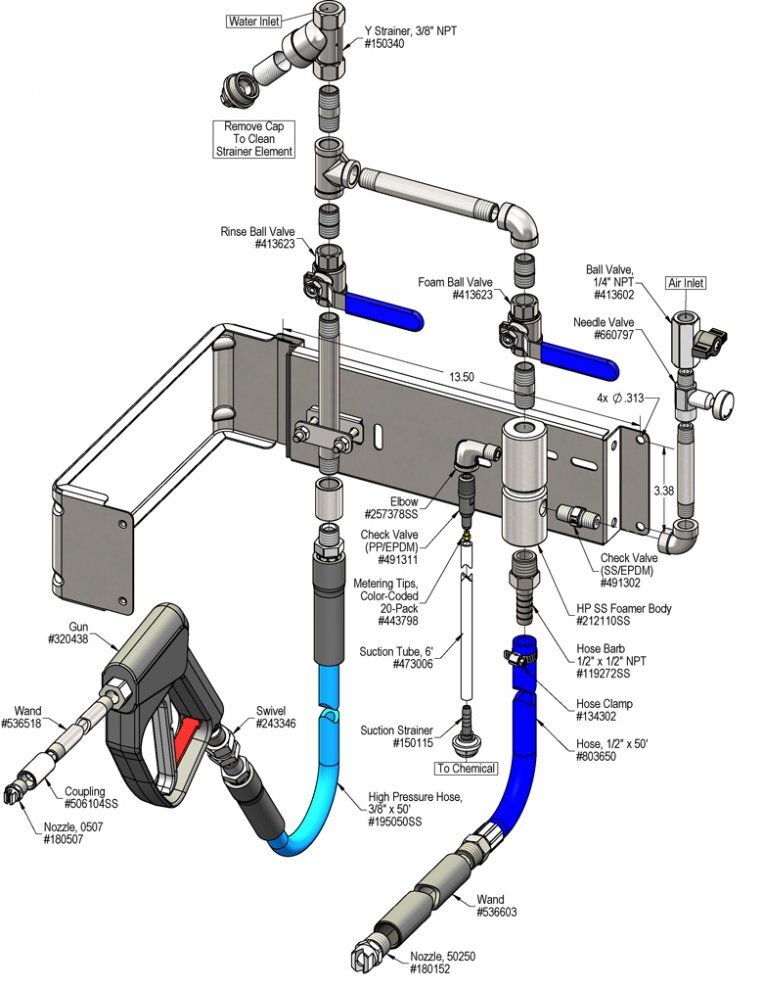

Rinse / HPSS Foam Hose Drop Station

Model # 918118

The Rinse/HPSS Foam Hose Drop Station is a combination applicator for projecting foaming chemicals at 2 GPM @ 700 PSI and for rinsing. This stainless steel venturi injection system uses high water pressure (400 - 1000 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Rich, clinging foam is created by injecting compressed air into the solution to greatly increase volume and coverage ability. The foam is then projected through the foam hose and fan nozzle on to any surface up close or at distances up to 13 feet. Rinse at full pressure through a separate hose, trigger gun and fan nozzle.

Key Features
  • Designed for foaming & rinsing medium to large surfaces
  • Projects rich, clinging foam which increases chemical contact time and effectiveness
  • Foaming expands the chemical and reduces over-application by providing visual assurance of coverage
  • Fan pattern foam nozzle for fast coverage (up to 13' range)
  • Covers up to 500 sq ft (46.5 sq m) in 2 minutes
  • Optional zero degree nozzle for increased foam throw
  • Adjustable foam consistency (wet/dry)
  • Rinse at full pressure with a dedicated hose & trigger gun
  • Stainless steel components ensure durability and years of trouble-free performance
  • Available without a rinse function (#918115)
  • Available with a higher flow rate (#917118)
  • See other high pressure foamers in Catalog 3

Includes

  • Stainless steel mounting bracket
  • Stainless steel inlet ball valves
  • Machined stainless steel foamer body
  • 20 color-coded precision metering tips to set dilution ratios
  • 50' foam hose, polypropylene open flow wand & fan nozzle
  • 50' rinse hose, trigger gun & stainless steel fan nozzle
Chemical Concentrate
Water
Temperature up to 160°F
Pressure 400 to 1000 PSI
Flow 2.92 GPM @ 700 PSI
Supply Line 3/8"
Compressed Air up to 5 CFM
Hose
Foam 1/2" ID x 50'
Rinse 3/8" ID x 50'
Nozzle
Foam 50250
Rinse 0507
Dilution Ratio Range @ 700 PSI
Foam 454:1 to 6:1
Stainless Steel Hose Rack
Large# 224150
Stainless Steel Jug Racks
Jug Rack, SS, 1 Gallon, Round/Square# 224200
Jug Rack, SS, 2 1/2 Gallon# 224210
Jug Rack, SS, 5 Gallon, Round/Square# 224215
Safe Flow Lid™ for 1 Gallon Jugs
Lid, Suction Tube, and Strainer# 709101
Optional Zero Degree Foam Nozzle (For Increased Range)
Nozzle, NPB, 1/2" - 00250# 180153
Alternate Check Valves - EPDM Standard
Check Valve, Chemical, PP/Viton, 1/4"# 491315
Check Valve, Air, SS/Viton, 1/4"# 491306
